upTOP quickWIRE Lighting Installation Harness

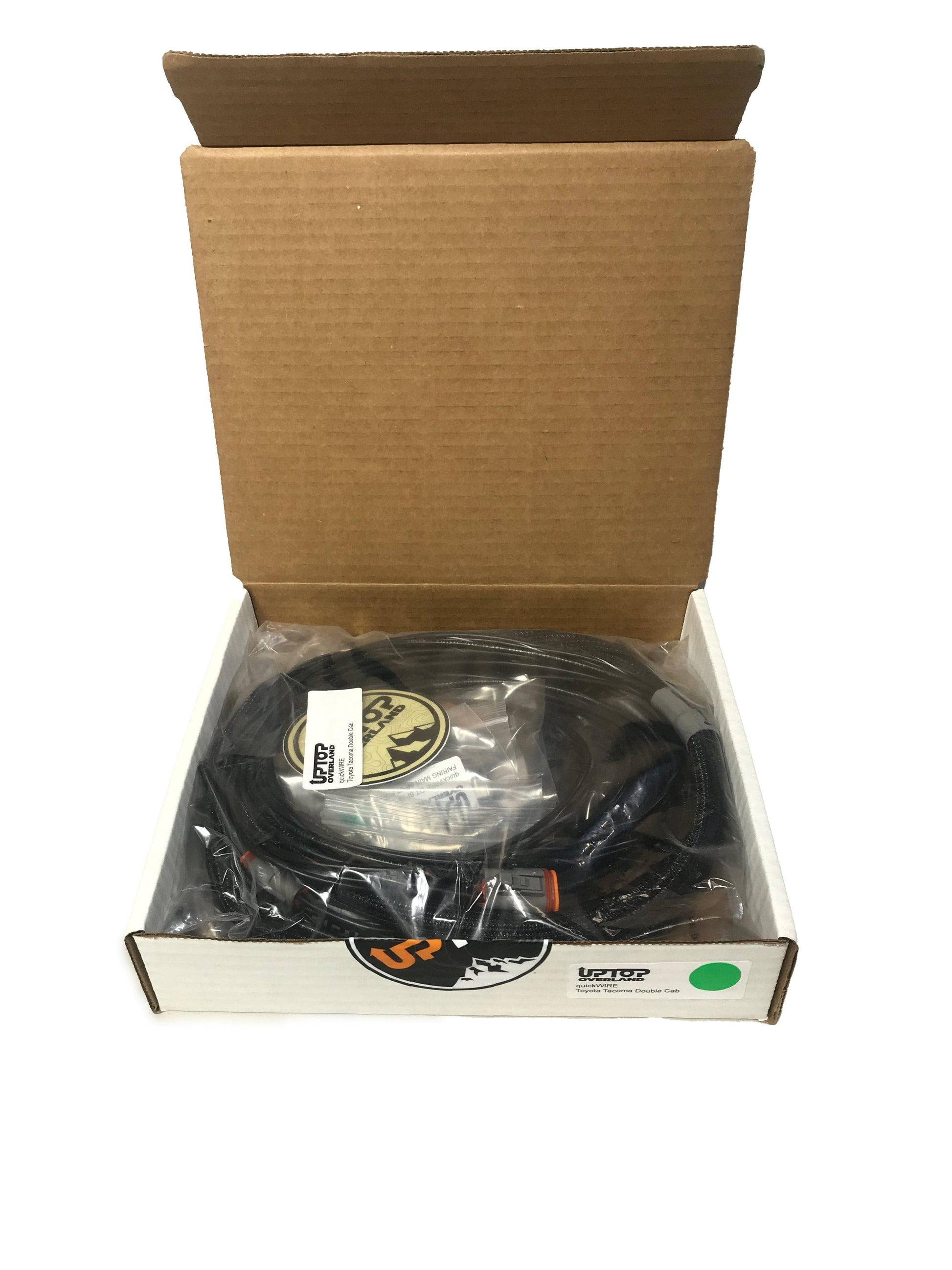

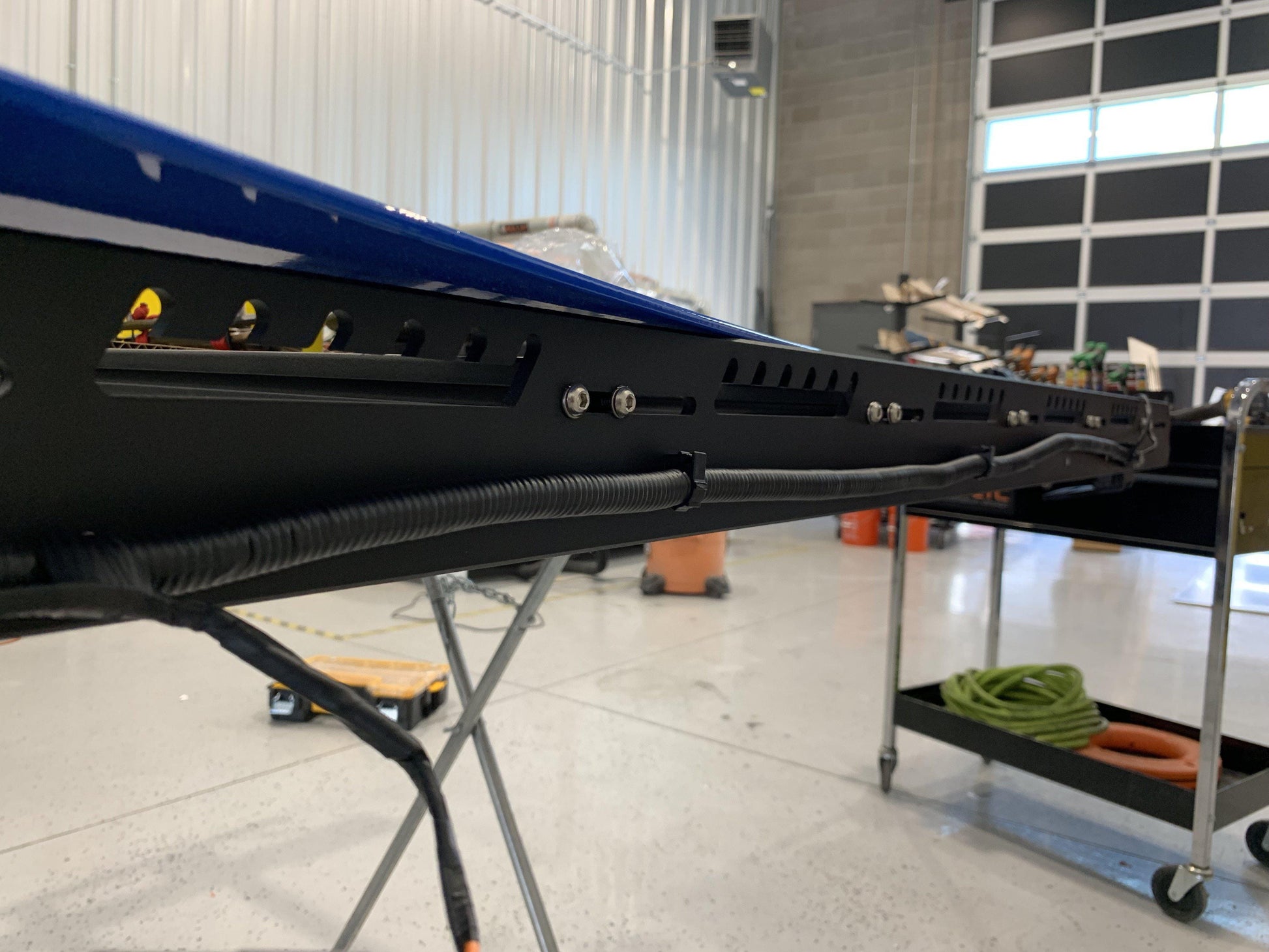

Our solution for quick and easy wiring of all the roof rack lighting for the Alpha line up. The quickWIRE includes a pre-terminated harness with all the connection points soldered, protected with heat shrink, wrapped and ready to secure to your rack in under five minutes. Using only the best in waterproof connections your lighting system will be reliable AND serviceable with our Deutsche DT connectors. Simplify your wiring and install with our quickWIRE!
PLEASE BE AWARE THAT UPTOP CANNOT SUPPLY QUICKWIRE HARNESSES FOR ANY VEHICLES EQUIPPED WITH LP4,LP6 OR ONX6 40" LIGHT SETUPS DUE TO INCREASED AMP LOAD.
PLEASE CONTACT SUPPORT FOR CUSTOM WIRING HARNESS QUOTES.
Designed To Connect All Lighting On Your Roof Rack. For A Cab Quickwire (Click Here)
Notes: All wiring is completed for the circuit of the rack itself. User is responsible for final connection and termination inside the vehicle. It is the end users responsibility to verify all circuits with a DIGITAL MULTIMETER before making connections.
No connections are made at upTOP to lighting in order to minimize damage to the connectors during shipping.
SWITCHING SYSTEM WILL BE REQUIRED IS NOT INCLUDED
QUICKWIRE INSTALL GUIDE UPDATE

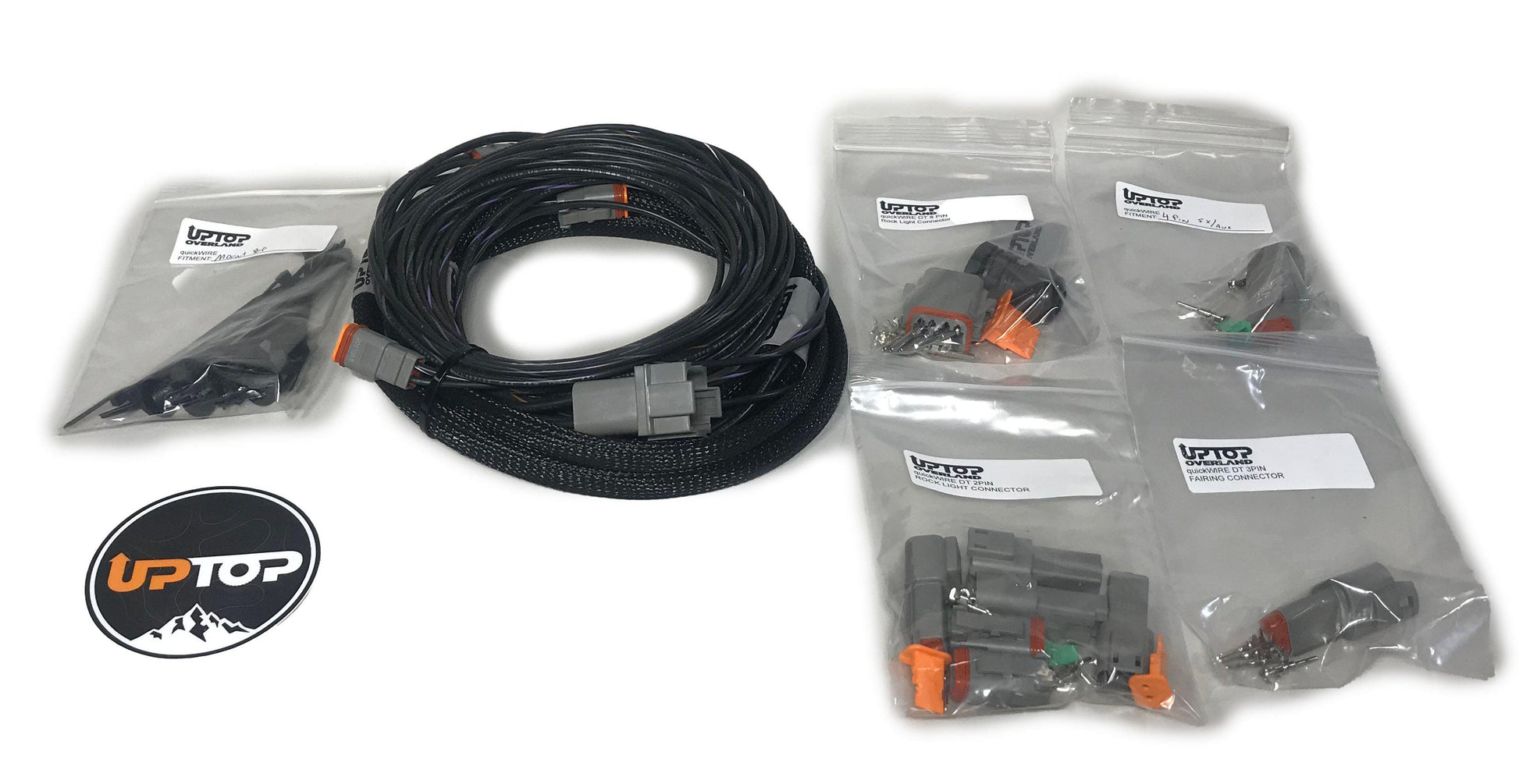

- All DT waterproof connectors and terminals that require no special tools.
- Electrical connection points for four (4) scenePODS. (includes the mating connector for your lights)
- Electrical connection point for front light bar including 3 pin DT weatherproof connector. (includes mating connector for your lights)
- Electrical connection point (6pin) for easy removal of the rack from the truck.
- Thinfin, ScenePOD, lighting, as well as anything not listed above.
- A switching system. You will still require a switchPRO, sPOD, or similar solution for controlling your lights.
