JD Fabrication

Toyota Tacoma 95 to 04 2wd 5-Lug Long Travel (Extreme)

Toyota Tacoma 95 to 04 2wd 5-Lug Long Travel (Extreme)

Regular price $3,895.95
Regular price Sale price $3,895.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content


YEAR – 95 to 04

MAKE – Toyota Tacoma 5 lug 2wd

LIFT – 3” to 6”



TIRE SIZE RECOMMENDED – up to 35” with cab tub


1.25” 4130 tube upper arm using ¾” rod ends at the frame pivots. The upper arms are mounted 3/16 4130 steel tabs ( we do not use the stock cross shaft)

Boxed lower arm made from 1/8” 4130 steel Using a hard polyurethane bushings, 1” DOM sleeve at the frame pivot, 3/4” rod ends at the front pivot and high grade 1” uniballs at the spindle. This kit comes with shock tabs but they are not welded on… (not powder coated)

Custom lift 4130 spindle using upper high grade 1” uniball, Dana 35 spindle snout, rotor and stock brakes.. (we do have a brake option.. please call for info)

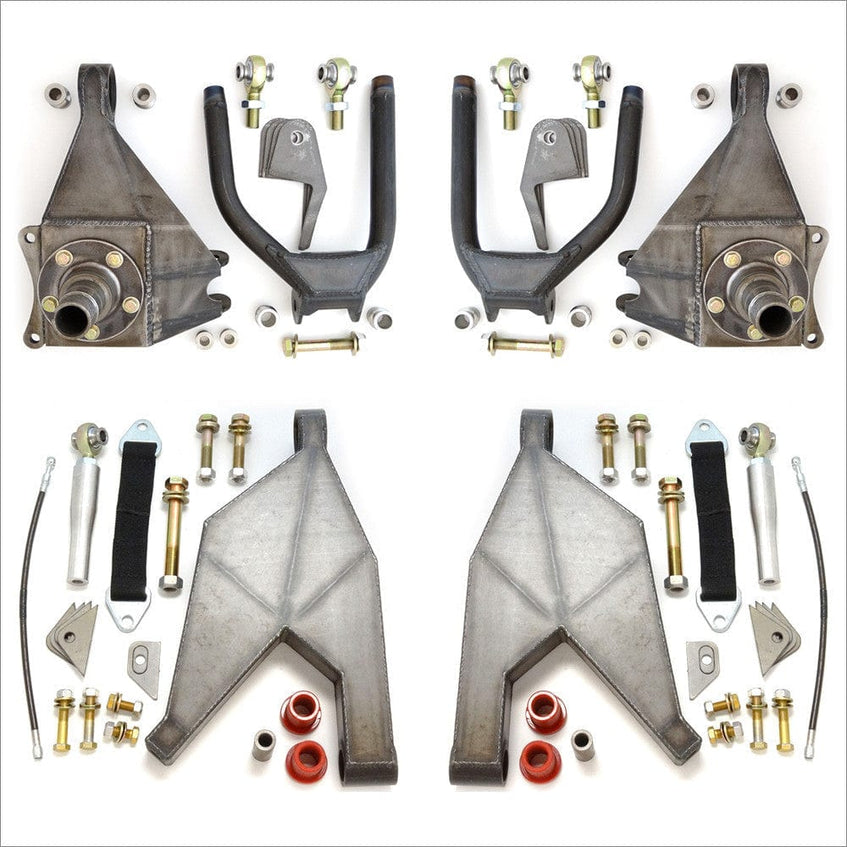

- 4130 upper arm with ¾” rod ends at the frame pivots.
- Upper arm tabs
- Boxed 4130 lower arm with 1” uniball
- Custom 4130 spindle with 1” upper uniball
- Stainless steel brake lines
- Aluminum steering extensions
- Limit straps with mounting tabs
- All grade 8 hardware

- Uses stock lower suspension pivot points
- We eliminate the upper cross shaft and use 3/4” rod ends at the frame pivot (kit comes with upper arm tabs)
- Dana 35 hub and rotor (not included)
- Increases travel
- Increases track width
- Duel shock ability with bump stop
- Just about endless shock options
- Comes raw steel
- Made in the USA

- Fiberglass fenders
- Shock mounts (we do not offer a shock mount for this kit…on your own for engine cage)
- Dana 35 spindle snout and rotor
- This kit comes with steering extensions but we do suggest doing some kind of major steering modifications for serious off road use.


King 2.5 x 10” Remote Res Dual Rate Coil Over -

King 2.5 x 10" Remote Res Free Bleed Shock -

King 2.5 x 10" Remote Res 2-Tube Bypass Shock -

King 2.5 x 10” Remote Res 3-Tube Bypass -

King 2.5 x 2.5" Hydraulic Bump Stop with Weld Can -

Toyota Rear Suspension Parts (springs, hardware, shackles)
