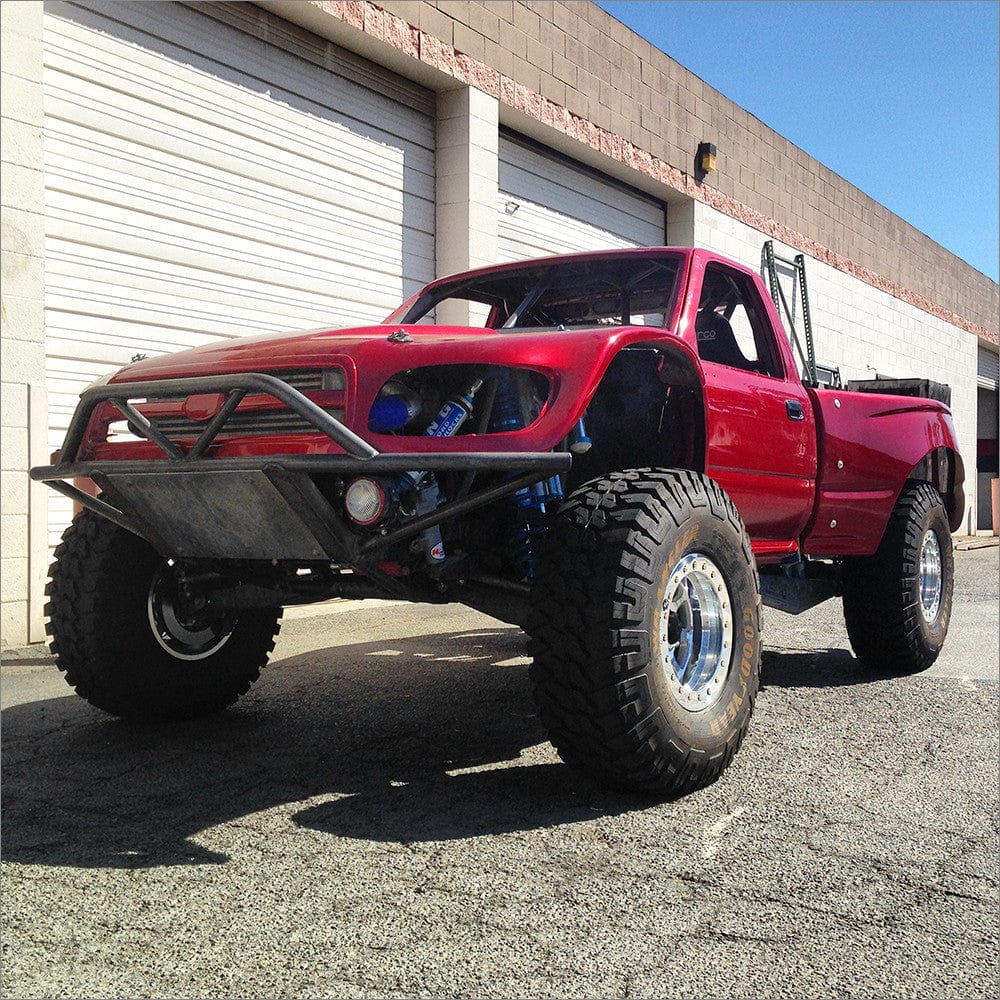

Toyota Hilux 84 to 95 2wd Front End Kit

Toyota Hilux 84 to 95 2wd Front End Kit

Regular price $4,195.95
Regular price Sale price $4,195.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content

Description

6 to 8 week wait when out of stock

YEAR  84 to 95 (not Tacoma) 2wd

MAKE - Toyota

LIFT – 4 to 6”

TIRES PUSHED FORWARD – 1.5”

TRACK WIDTH
We offer 2 different width kits so you will end up being anywhere from 83” to 88” depending on the kit and wheel off set you buy.
Lower arms are ether 19 1/8” or 20 3/8” from center of inner a arm pivot.

TIRE SIZE – Up to 37” with cab tub

WHEEL TRAVEL – 18” with frame modification

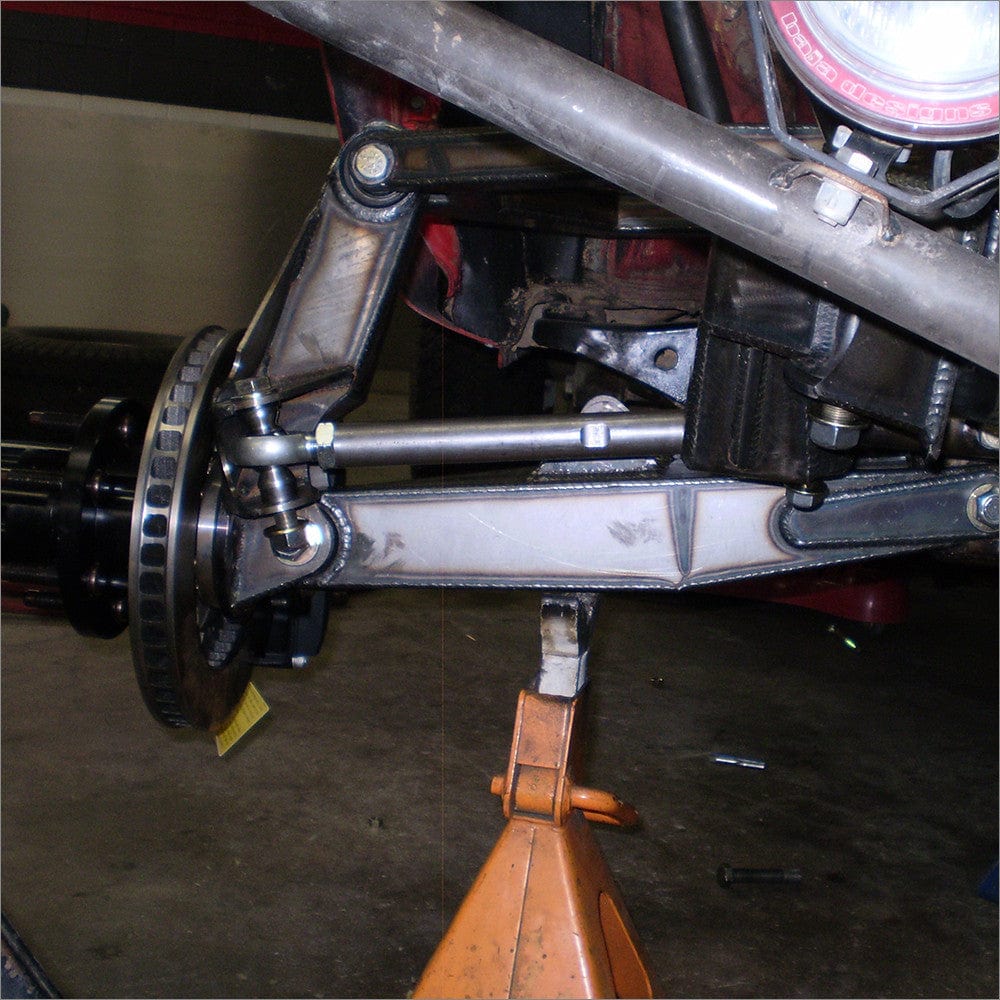

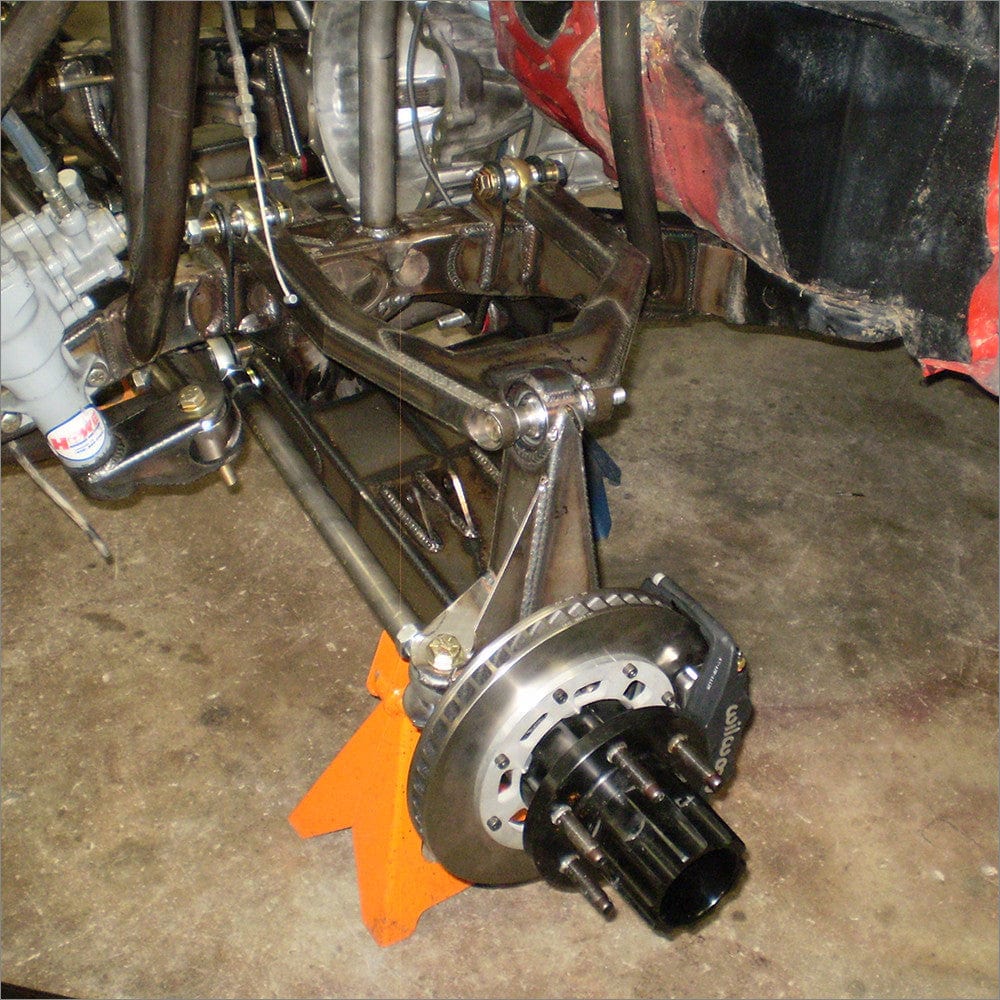

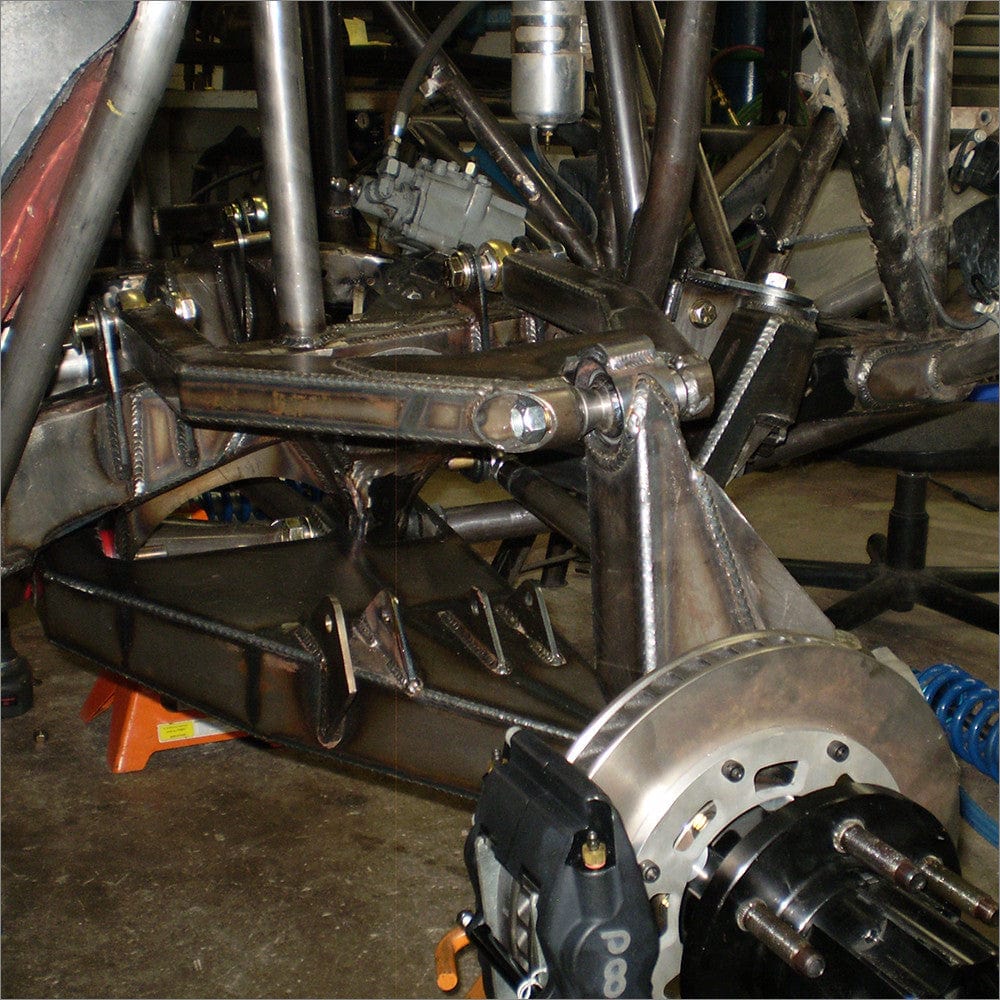

UPPER ARMS
4130 plate with ¾” rod ends at the frame pivots.
The upper arms are mounted 3/16 4130 steel tabs ( we do not use the stock cross shaft).

LOWER ARMS
Boxed 4130 plate lower arm with high grade 1” uniballs. We changed the front pivot and moved it to the back side of the a arm for strength and approach angel.

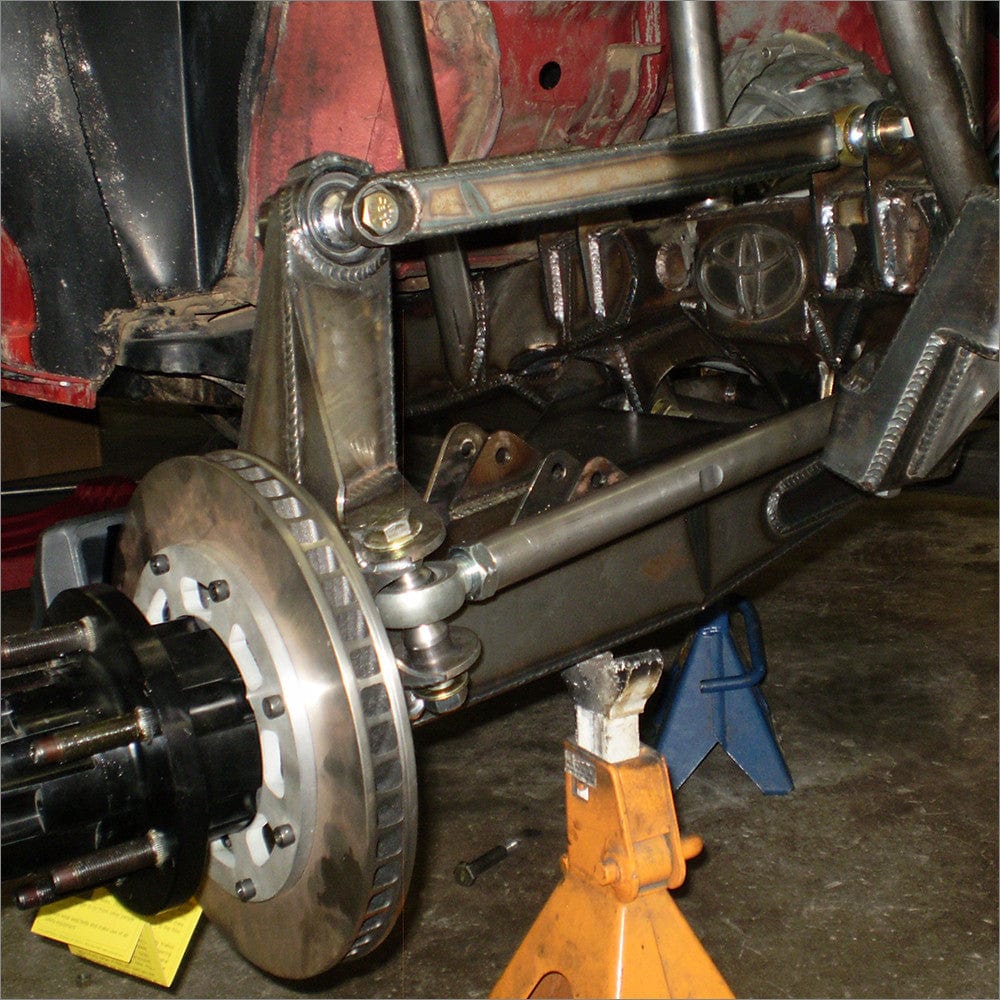

SPINDLE
Custom 4130 lift spindle that is set up to use the 6 lug hub, rotor and brakes off of a 86 to 95 toy 4x4. The bolt on spindle snout that is used is off of 81 to 85 Toyota straight axle pick up. (We will also do any hub, rotor snout option for you. Please call for pricing)

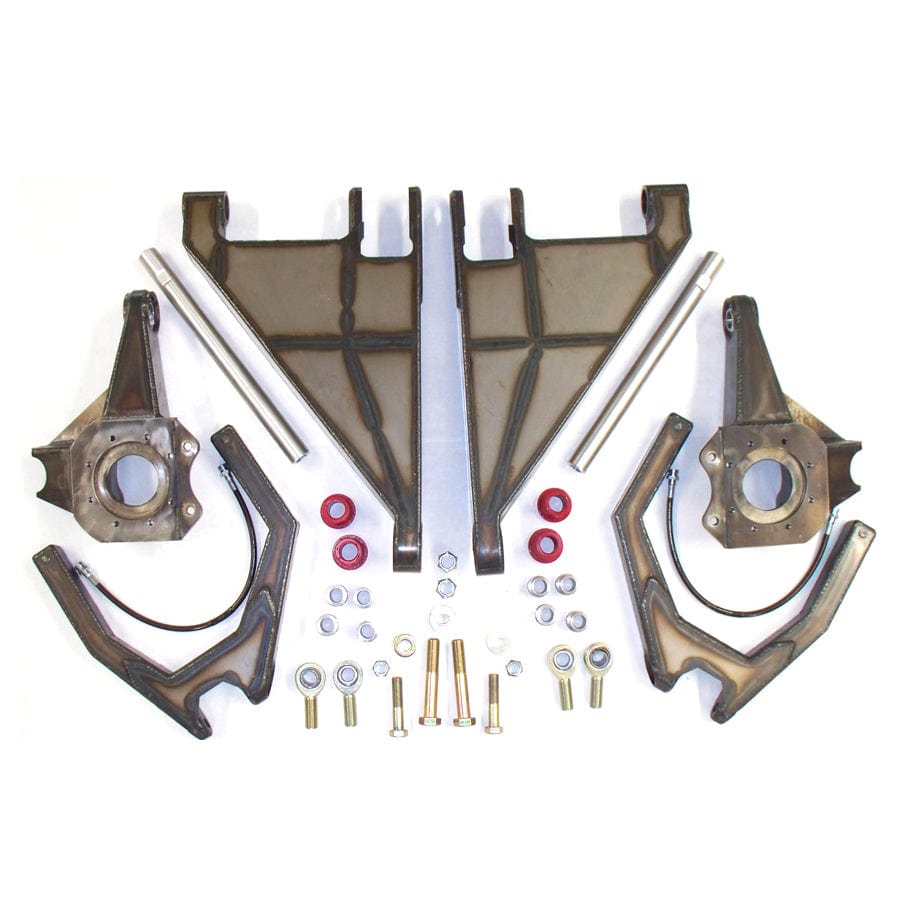

PARTS INCLUDED
- 4130 plate upper arms with ¾” rod ends
- 4130 boxed plate lower arm with high grade 1” uniballs
- Custom 4130 spindle with high grade 1” uniballs
- 4130 steel tie rods with ¾” rod ends
- Upper and lower arm mounting tabs
- Stainless steel brake lines
- Limit straps and tabs
- All grade 8 hardware
- Lower arm shock tabs

FEATURES
- Covers from 5 on 5” to 6 on 5.5” lug pattern..
- We also offer the option to go to 5 on 5 1/2” (please call for info)
- Major cutting and welding required.
- 18” of wheel travel with modification of frame.
- Made in the USA

RECOMMENDED PARTS
- Hub, rotors and brakes off of a 86 to 95 Toyota 4x4 (not included)
- Spindle snout off of a 81 to 85 Toyota 4x4
- Fiberglass fenders
- Engine cage
