Diode Dynamics

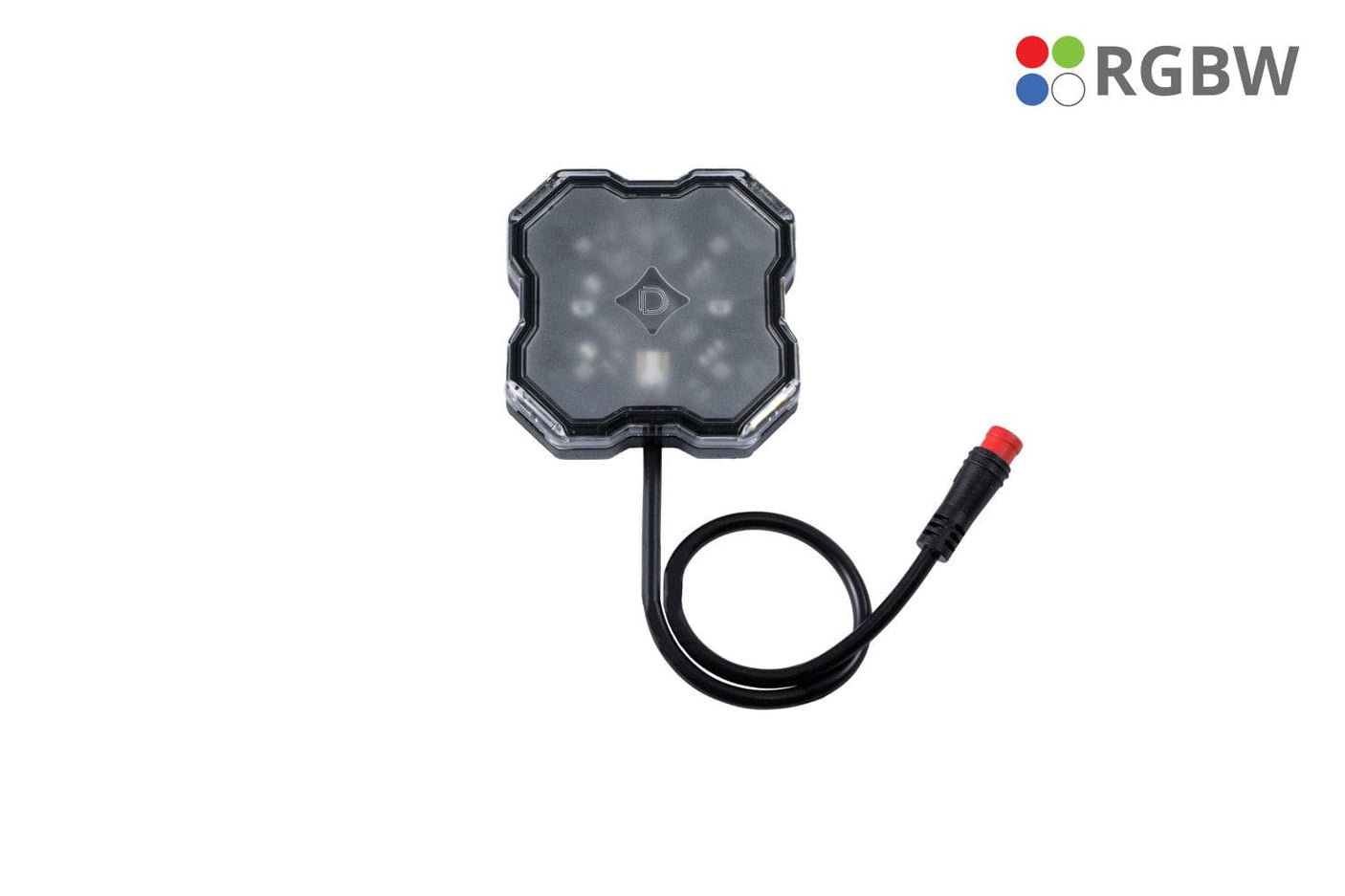

Stage Series RGBW LED Rock Light (One)

Stage Series RGBW LED Rock Light (One)

Regular price $49.95
Regular price Sale price $49.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content

Description

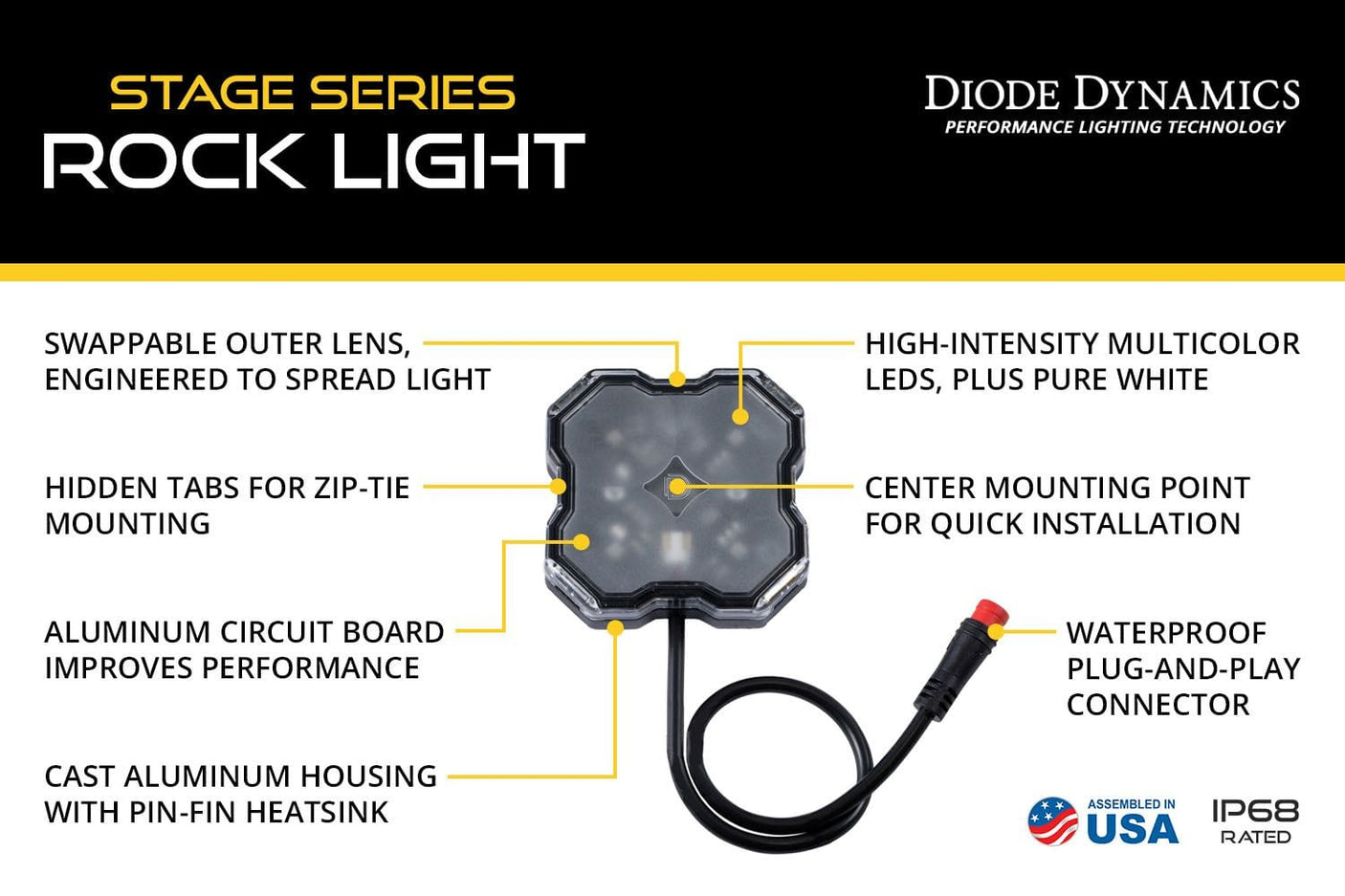

Features

  • High-power RGBW LED function
  • Convenient center-mount installation
  • Control with remote or Bluetooth app
  • Aluminum heatsink with signature Ico Bezel shape
  • Thick, durable lenses, engineered to spread light
  • Engineered and Assembled in USA

Overview

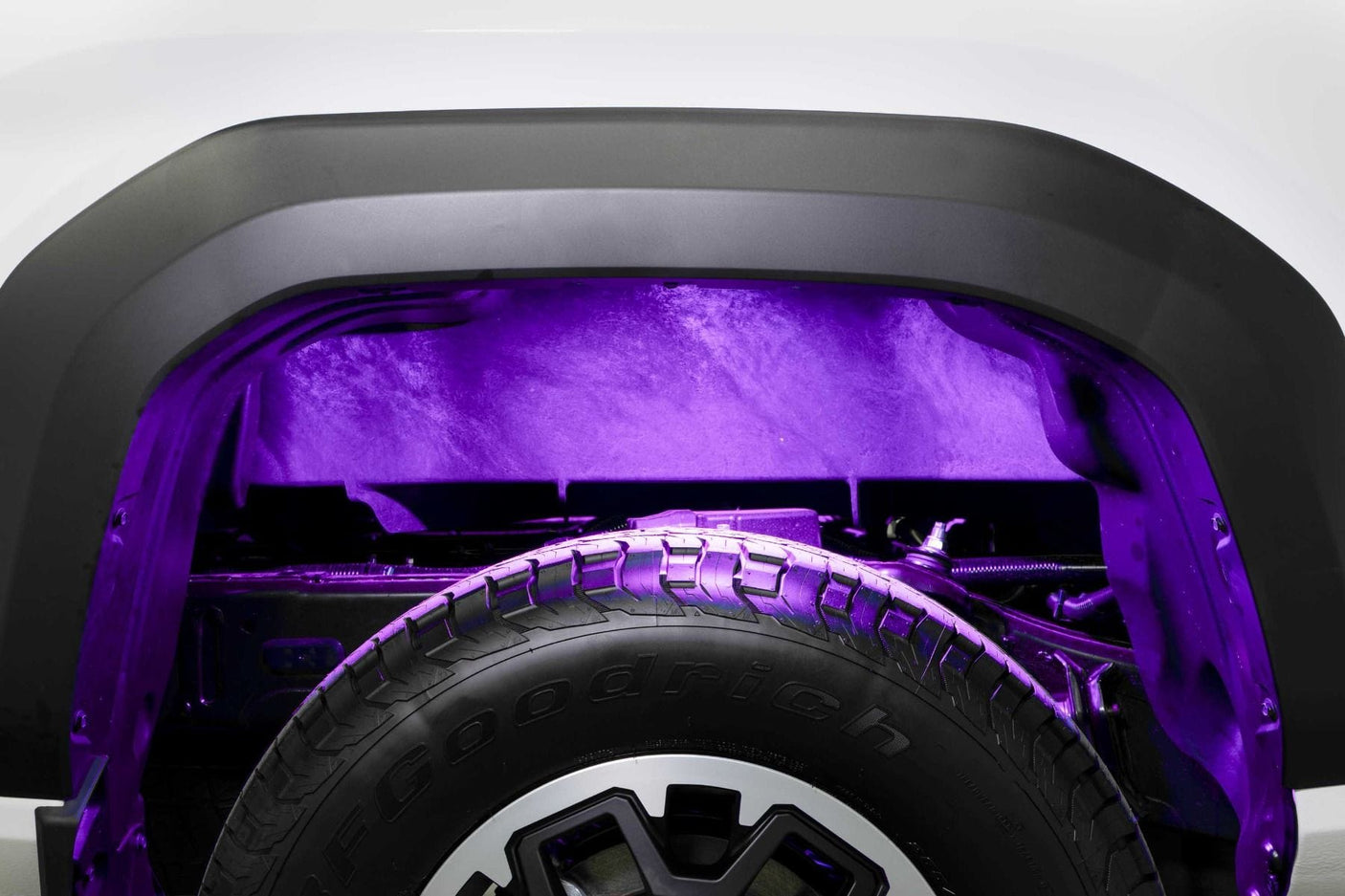

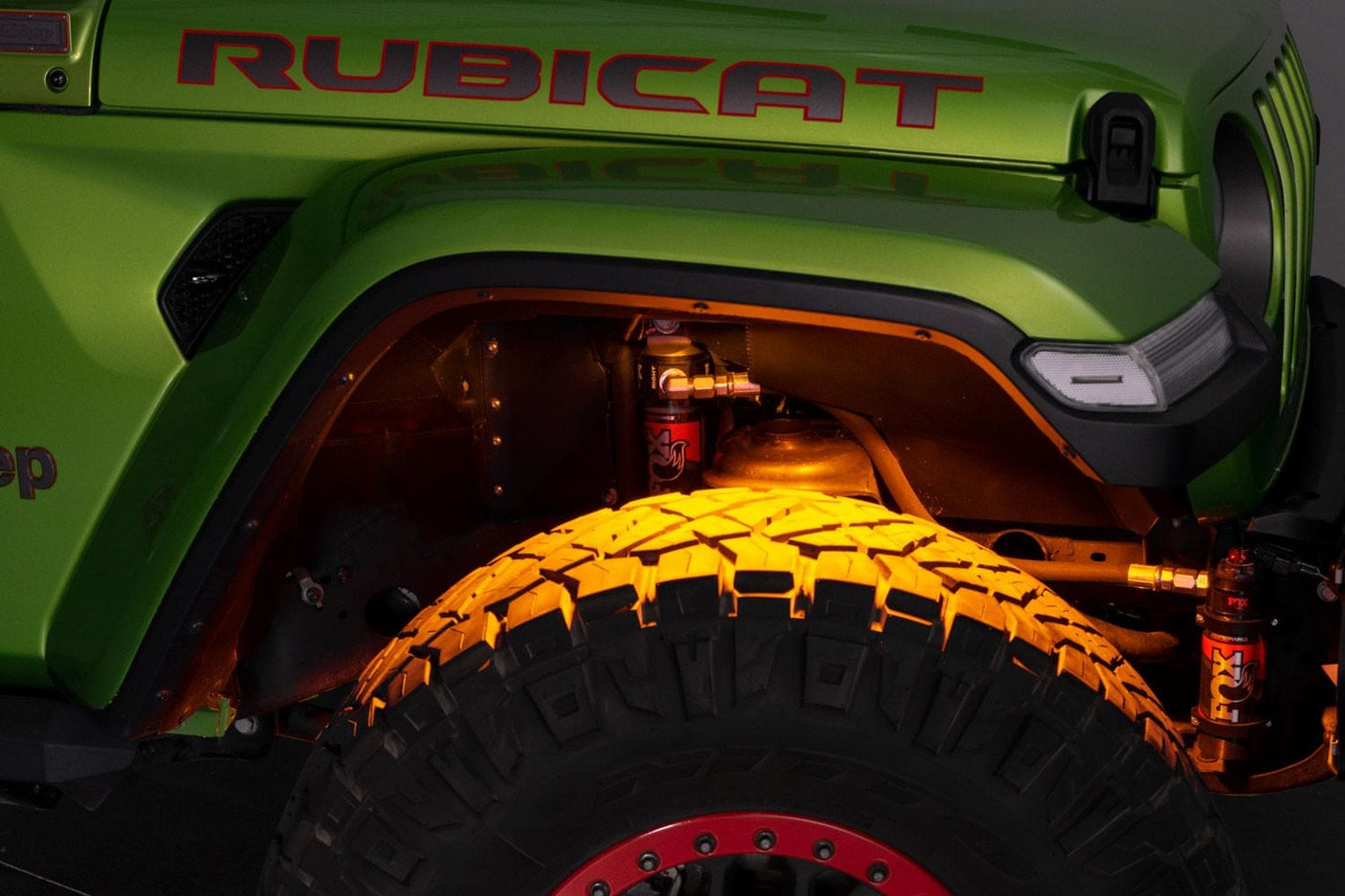

Introducing the Stage Series Rock Light from Diode Dynamics! With high-power RGBW LED emitters, these USA-assembled units are a major step up from any other multicolor rock light on the market today. Rock lights are a perfect solution to add light underneath your vehicle on the trail. Or, with their compact size and numerous mounting solutions, you can add these anywhere you need some extra light - your cargo area, under the hood, on a roof rack, the side of a trailer, and more. The applications are endless!

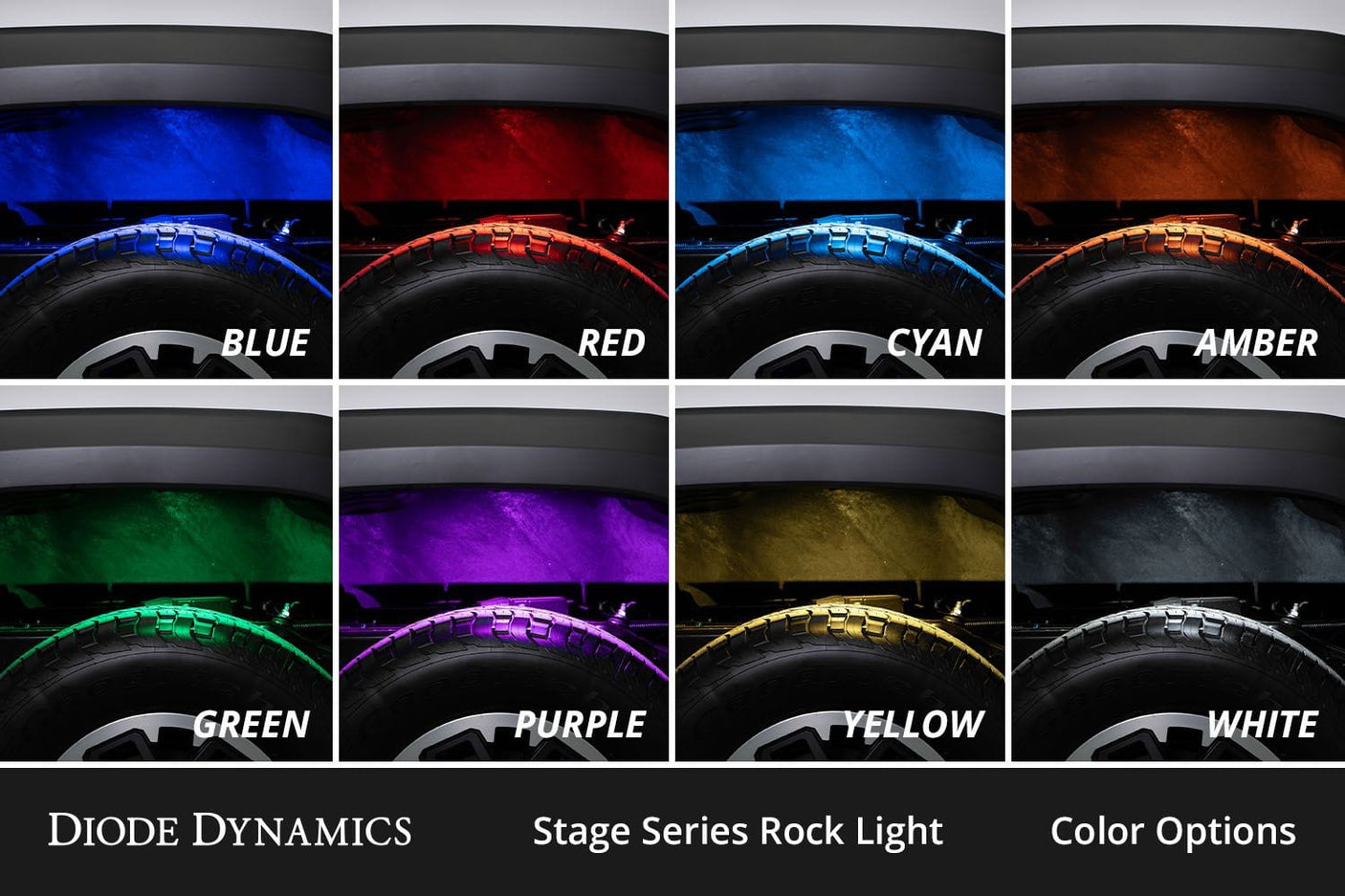

Multicolor plus White. With four high-intensity RGBW LED emitters, the Diode Dynamics Rock Light provides plenty of output in any color you can think of, paired with our RGBW remote or RGBW Bluetooth controller and app. The diffused optical feature of the lens provides excellent integration of colors. And unlike other multicolor lights, the extra white chip means that these will light up in a bright, pure white color when you want to maximize output. Want to show off? Use your controller to start a pattern, strobe, fade, or control the brightness. The best of both worlds! Our RGBW rock lights pack a punch, but if you are looking for the most output possible, check out our single-color rock lights!

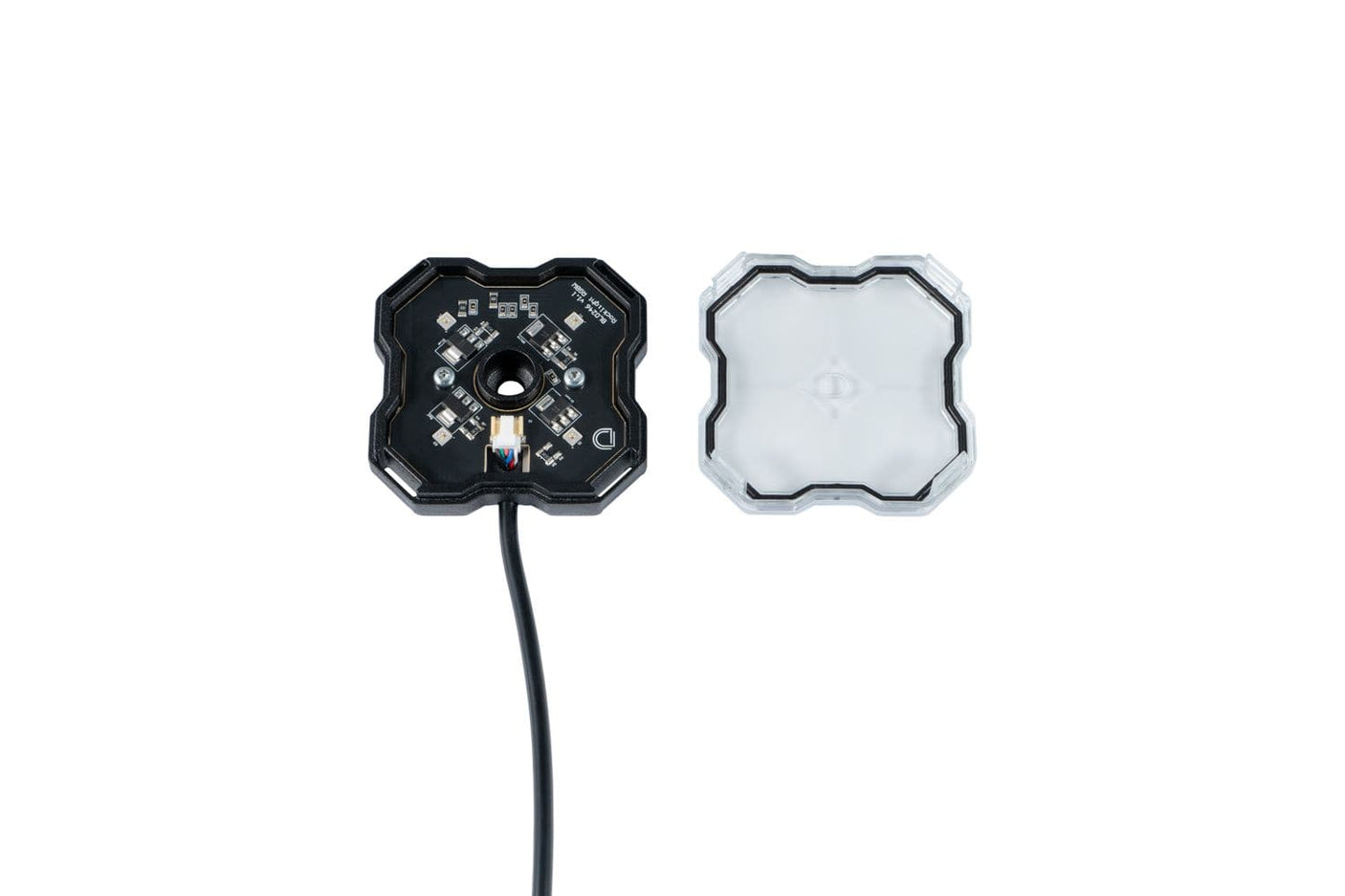

Optically-Engineered Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provide excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily as needed.

Mount it Anywhere! Stage Series LED Rock Lights were designed to be mounted virtually anywhere on your vehicle. All rock lights come standard with a center bolt mounting point, which is neatly hidden underneath the lens. The aluminum heatsink also features hidden mounting tabs for quick zip-tie installation, if preferred.

If that’s not enough, we also offer a variety of mounting solutions, including a roll bar mountmagnetic mountflush mount, and surface mount to cover any other potential application. Each of these accessory mounts is designed to mate up perfectly with the base rock light unit, for a professional and clean appearance when installed.

Simple Connections. For maximum convenience, these lights include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection and is compatible with our plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them. Up to 16 Rock Lights can be wired together using the included harness.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

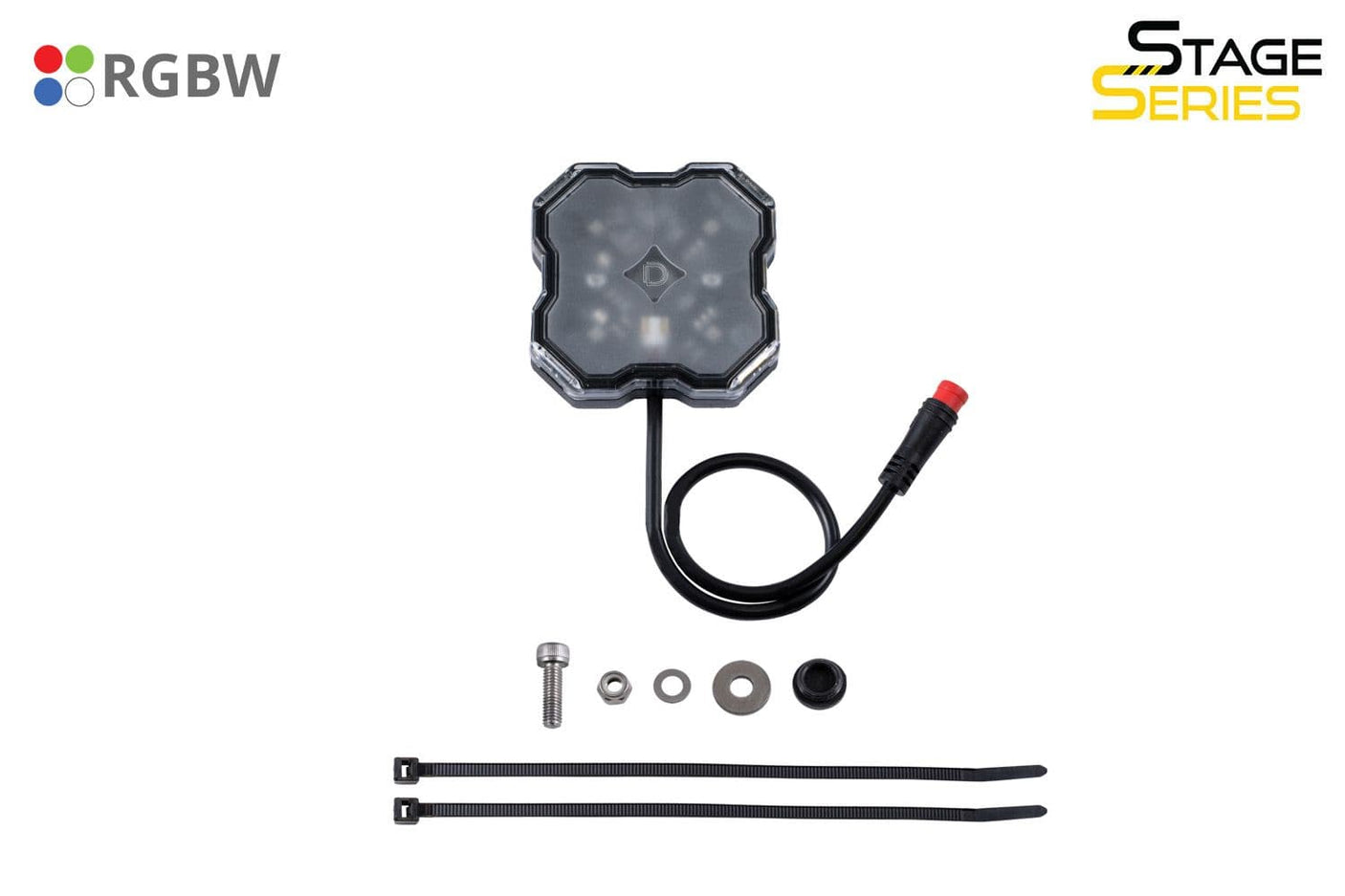

In the Box:
  • One (1) Stage Series RGBW Rock Light
  • One (1) Rock Light Hardware Kit
  • Two (2) Zip Ties
Quantity: One (1)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

NOTE: Specifications listed here are for each individual Rock Light.
LED Color/Lens Type Measured Output
(lumens)
Peak Intesity
(candela)
White Diffused 75 lm 30 cd
Green Diffused 60 lm 25 cd
Red Diffused 50 lm 20 cd
Blue Diffused 20 lm 10 cd



Color Temp (CCT): 6800K
Beam Angle: Round, 60°
Power (watts): 4.596
Operating Voltage: 9-16V
Current (amps @ 13.2V): 0.36
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP68 Waterproof

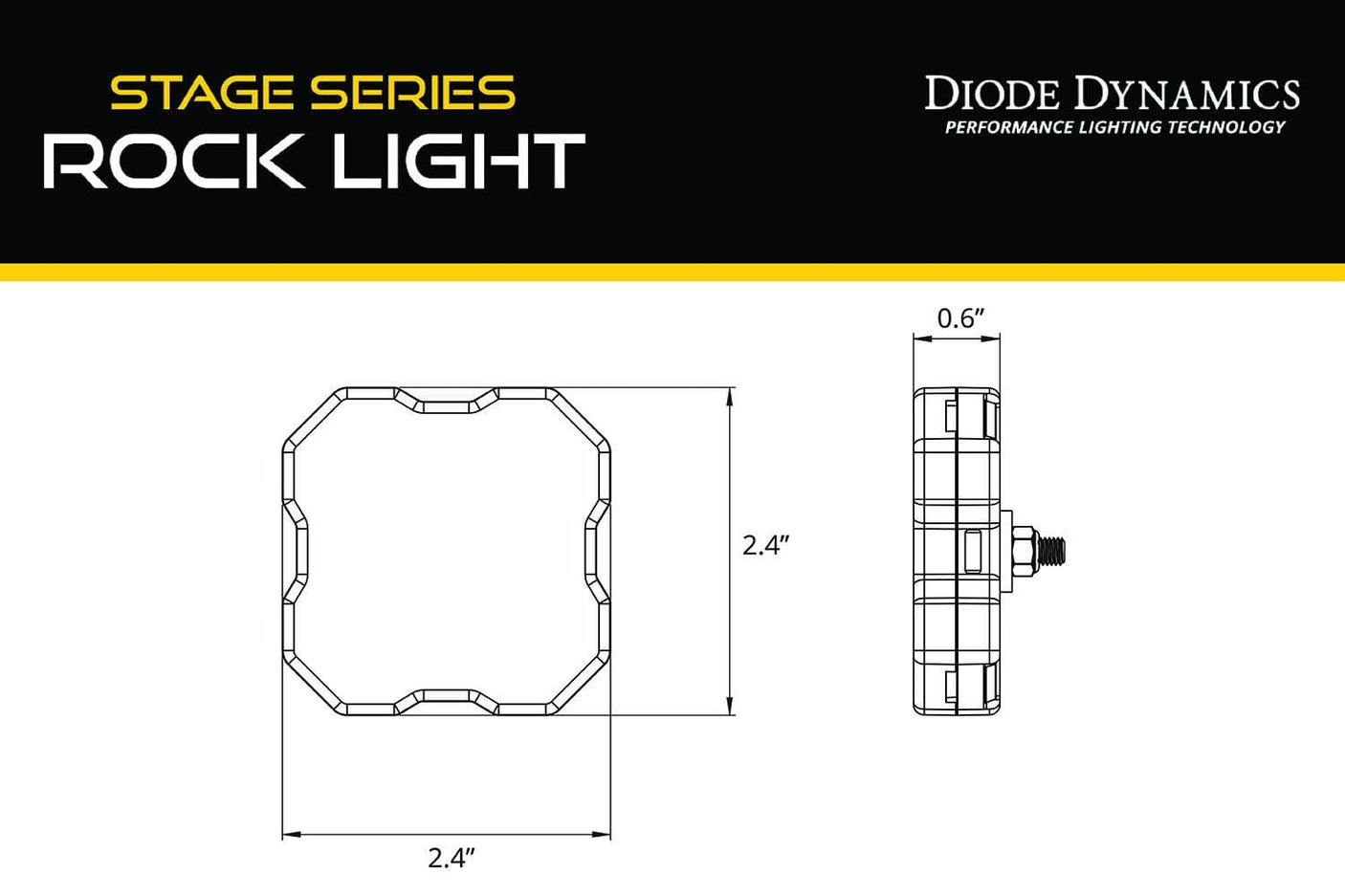

Product Dimensions (in): 2.4x2.4x0.6
Unit Weight (lb): 0.20
Product Weight (lb): 0.20
Shipped Weight (lb): 0.5
100% Satisfaction Guarantee

Installation Time: 10-20 minutes

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Installation Guide: Click to download

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
