Diode Dynamics

Stage Series RGBW LED Rock Light Kit (12-Pack)

Stage Series RGBW LED Rock Light Kit (12-Pack)

Regular price $979.95
Regular price Sale price $979.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content

Description

Features

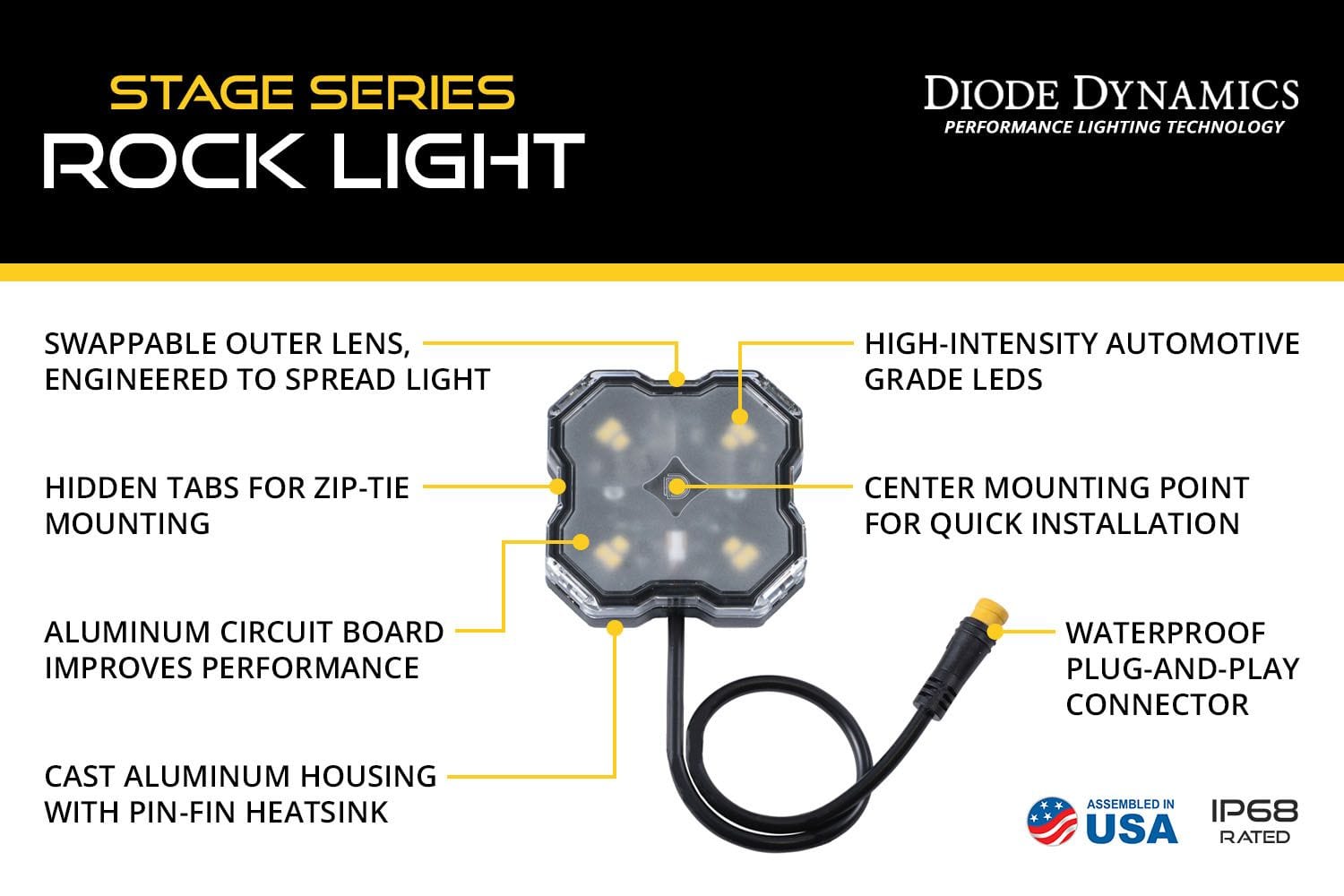

  • High-power RGBW LED function.
  • Convenient center-mount or magnet mount installation.
  • Control with remote or Bluetooth app.
  • Includes all necessary wiring and mounting hardware.
  • Aluminum heatsink with signature Ico Bezel shape.
  • Thick, durable lenses, engineered to spread light.
  • Engineered and Assembled in USA.

Overview

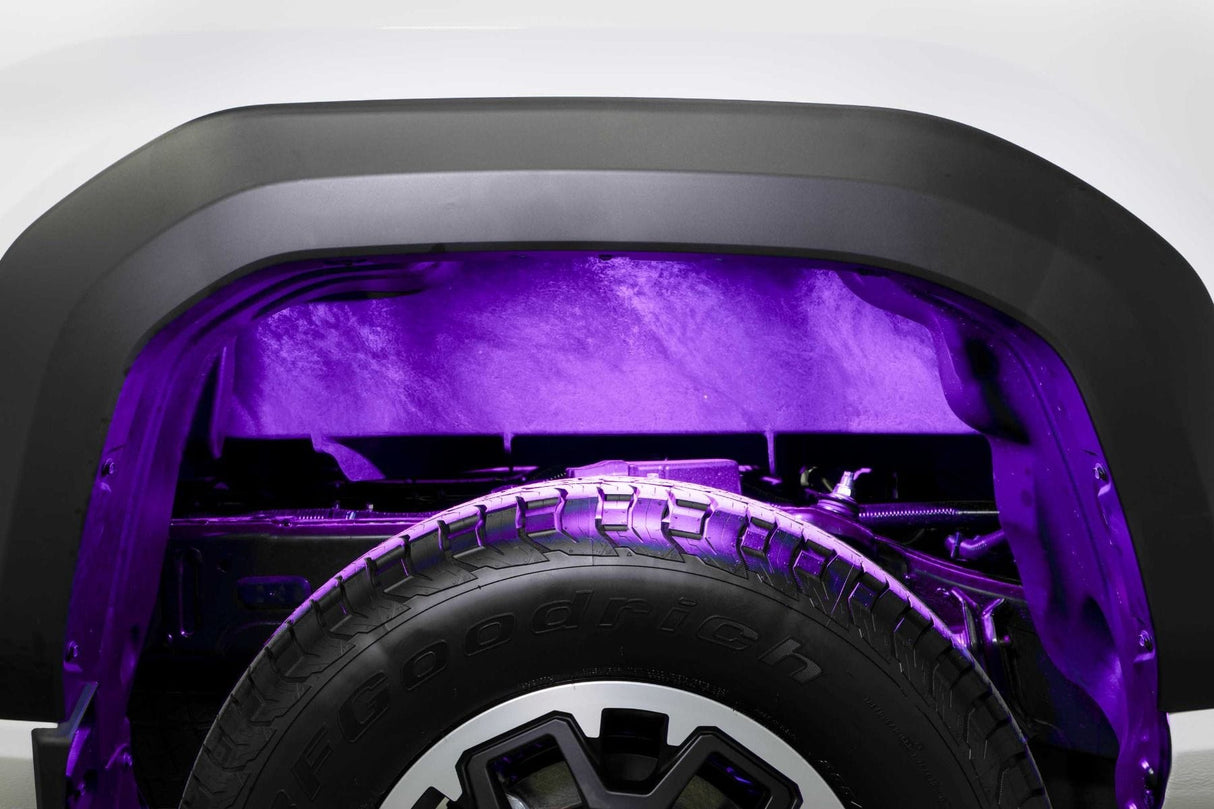

Looking to light up the trail at night? Look no further. Introducing the Stage Series LED Rock Light Kit! Designed for superior durability and maximum performance, Stage Series LED Rock Lights have set a new standard in the offroad category. This kit includes all the wiring and hardware necessary to mount four Stage Series LED rock lights, making it easier than ever to add rock lights to your vehicle.

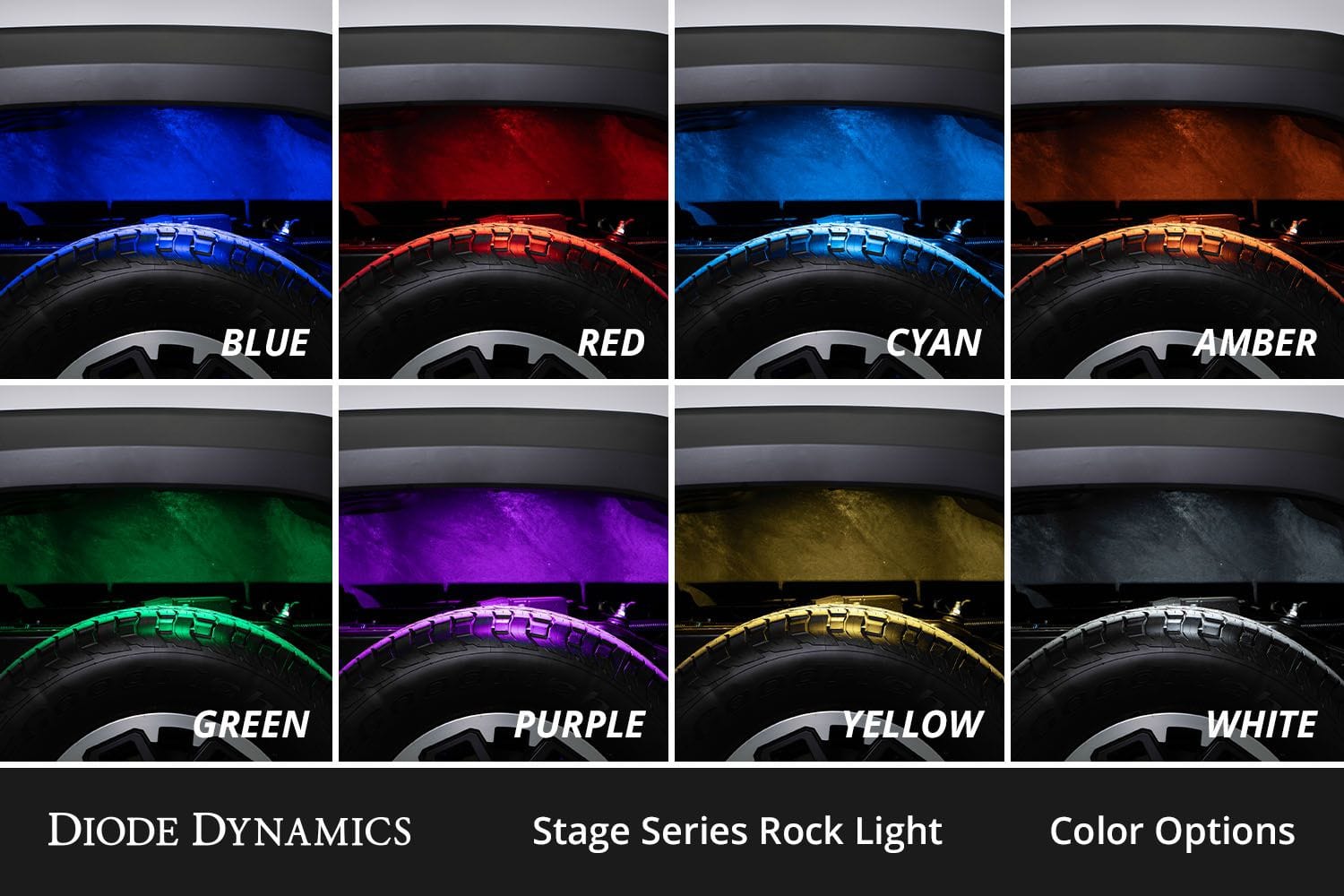

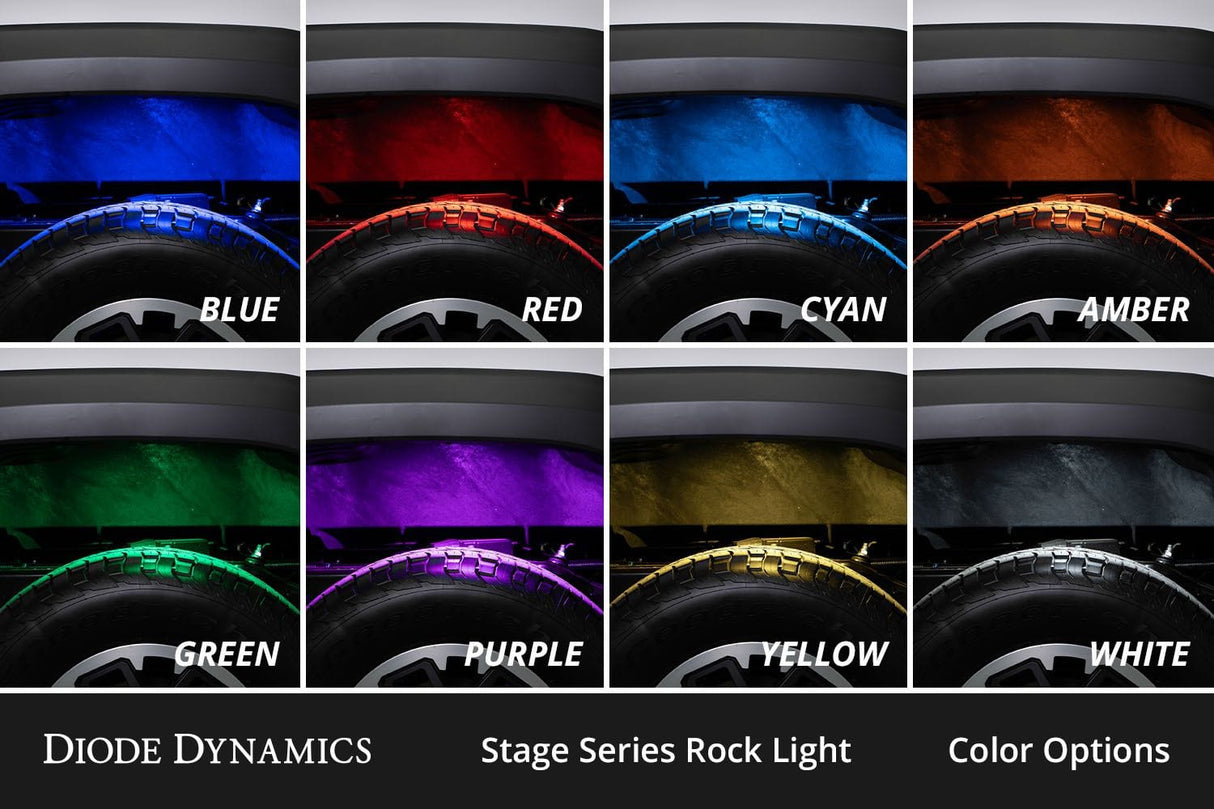

Multicolor plus White. With four high-intensity RGBW LED emitters, the Diode Dynamics Rock Light provides plenty of output in any color you can think of, paired with our RGBW remote or RGBW Bluetooth controller and app. The diffused optical feature of the lens provides excellent integration of colors. And unlike other multicolor lights, the extra white chip means that these will light up in a bright, pure white color when you want to maximize output. Want to show off? Use your controller to start a pattern, strobe, fade, or control the brightness. The best of both worlds! Our RGBW rock lights pack a punch, but if you are looking for the most output possible, check out our single-color rock lights.

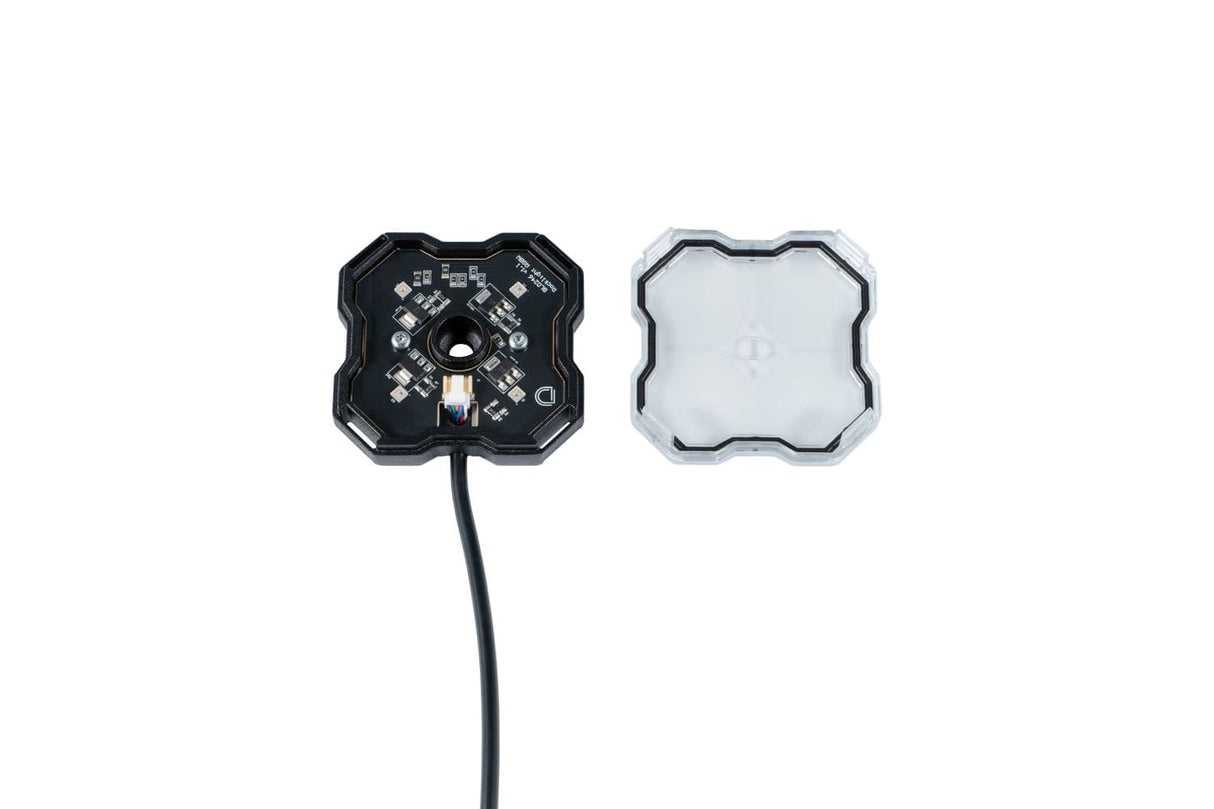

Optically-Engineered Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provide excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily as needed.

Mount it Your Way. Our Rock Light Kit can be mounted using the center bolt mounting point that is neatly hidden underneath the lens and comes standard, or you can select the magnet mount option. Our magnet mounts feature an overmolded design that keeps your rock light secure using the integrated mounting hole. With N42 magnets providing an approximate pull/holding force of 35lbs, you can rest assured that the magnet won't go anywhere!

Simple Connections. For maximum convenience, these lights include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection and is compatible with the included plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

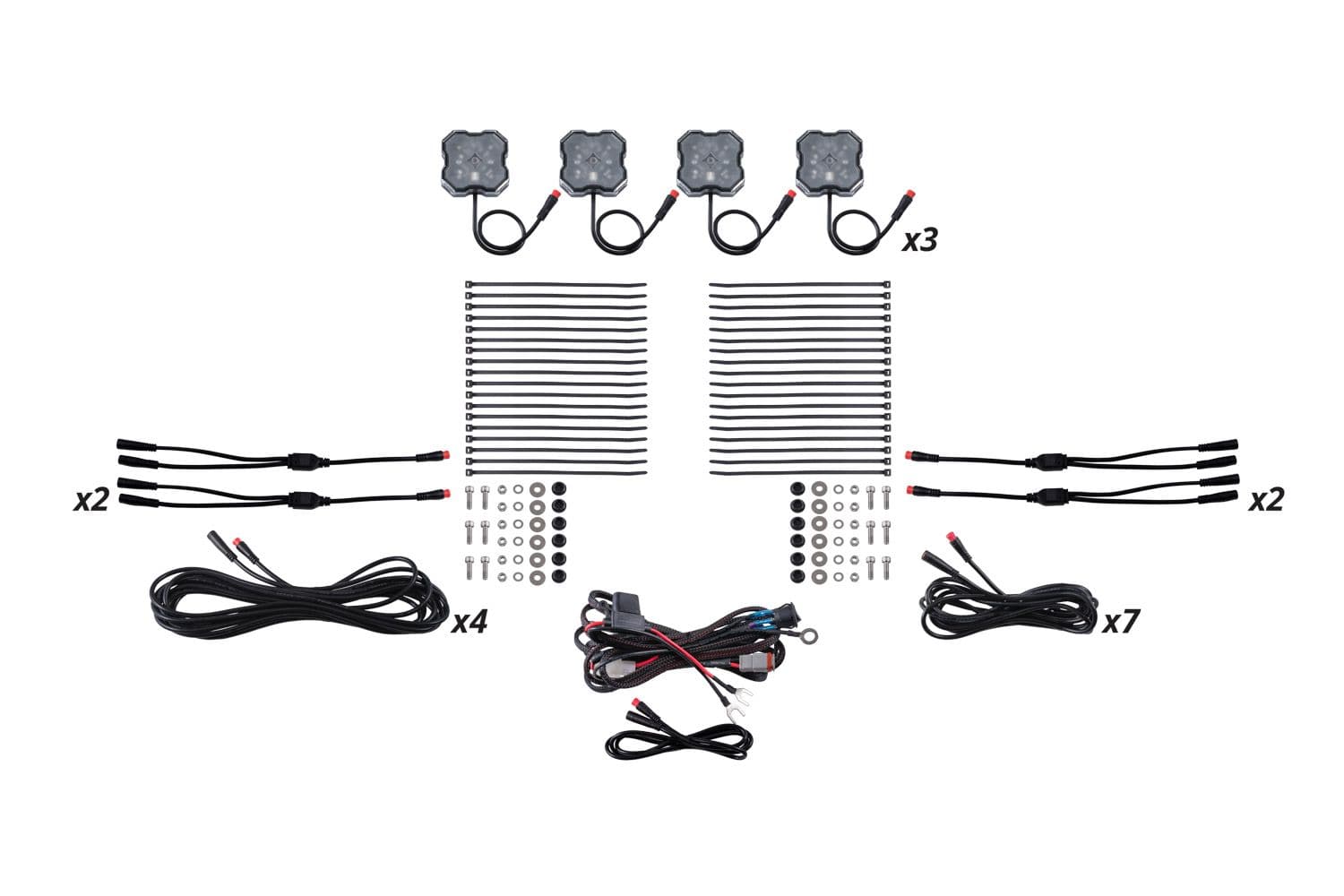

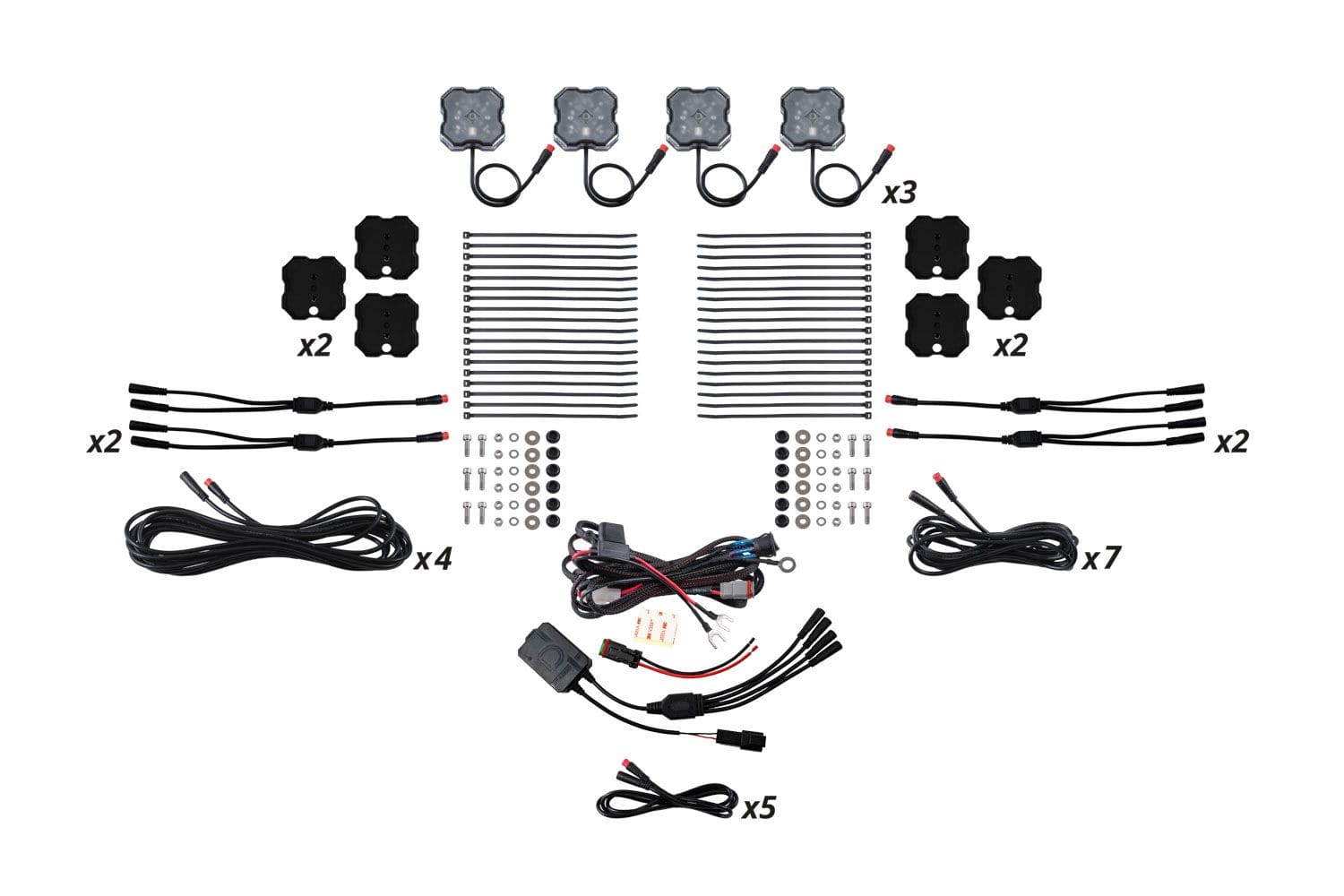

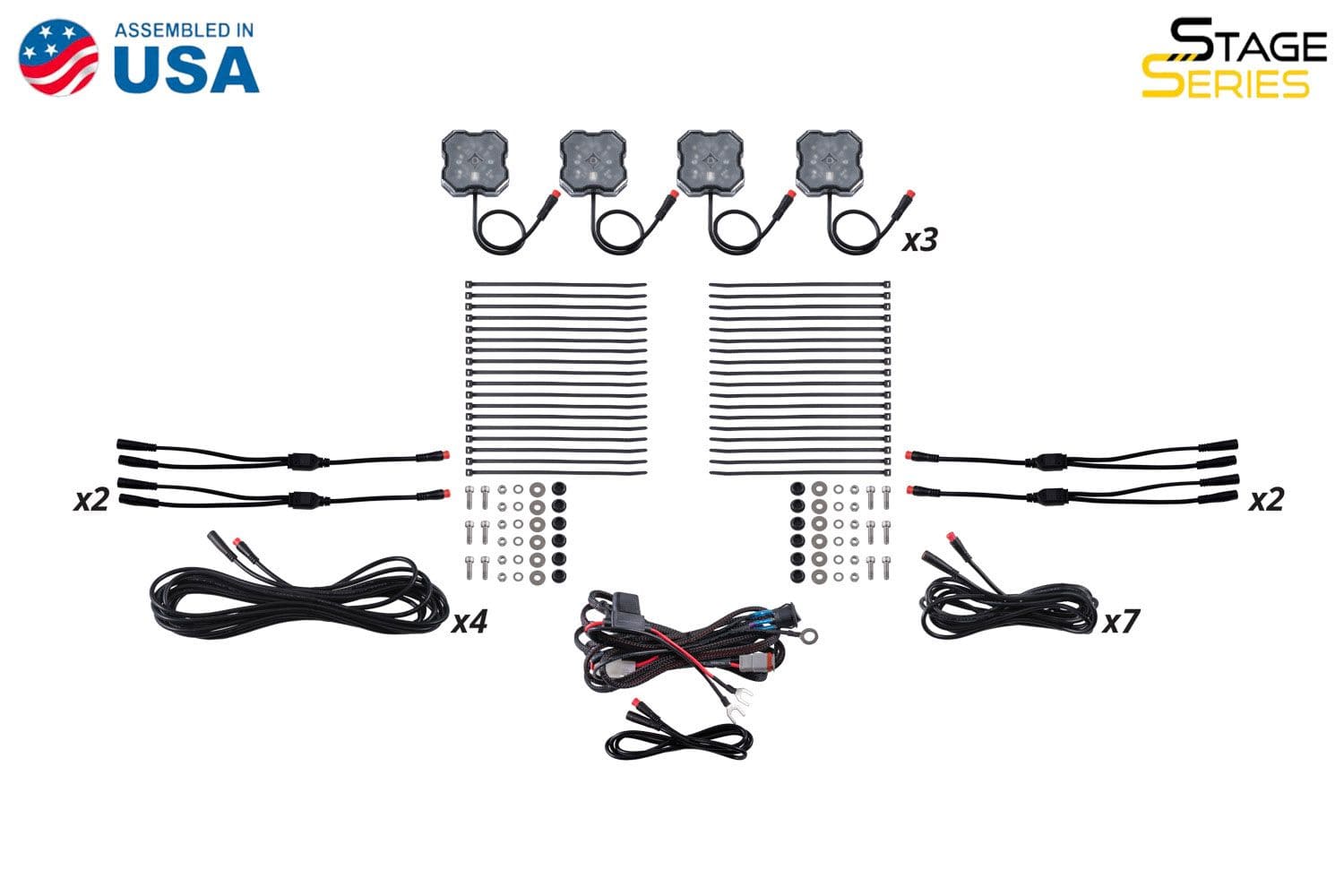

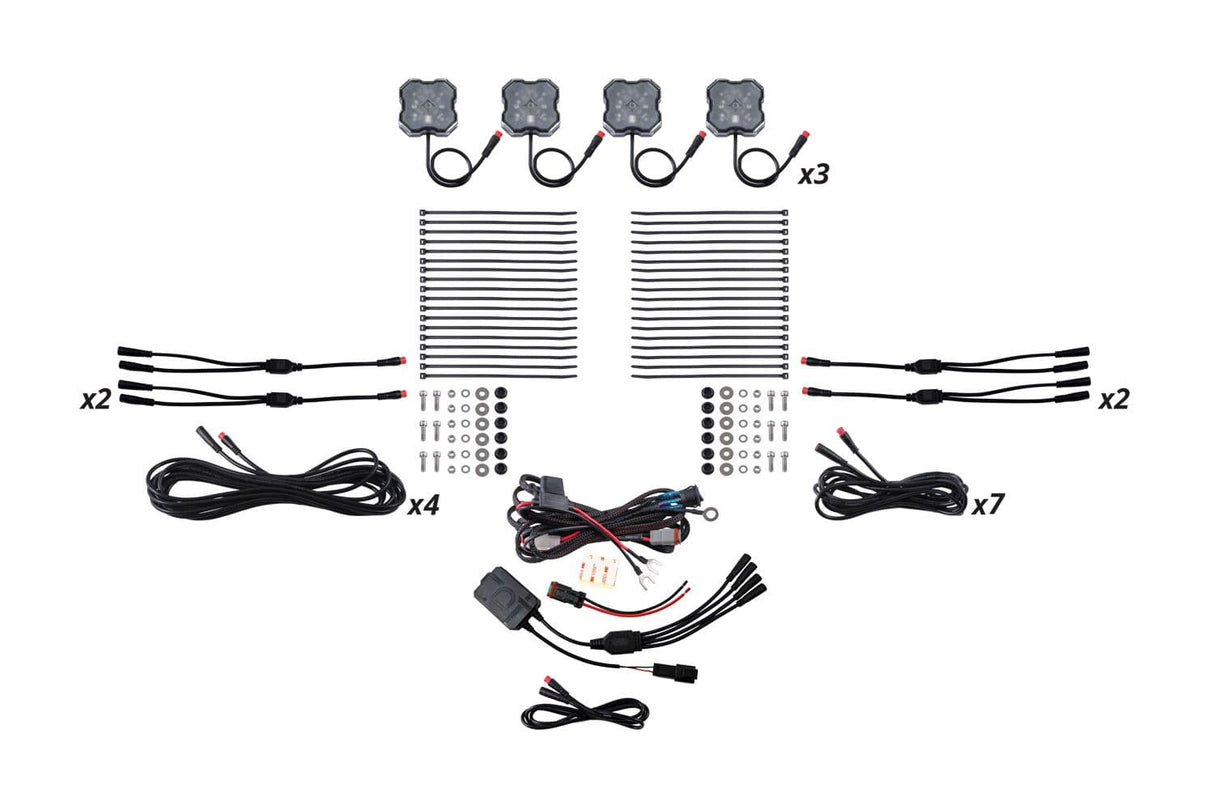

In the Box:

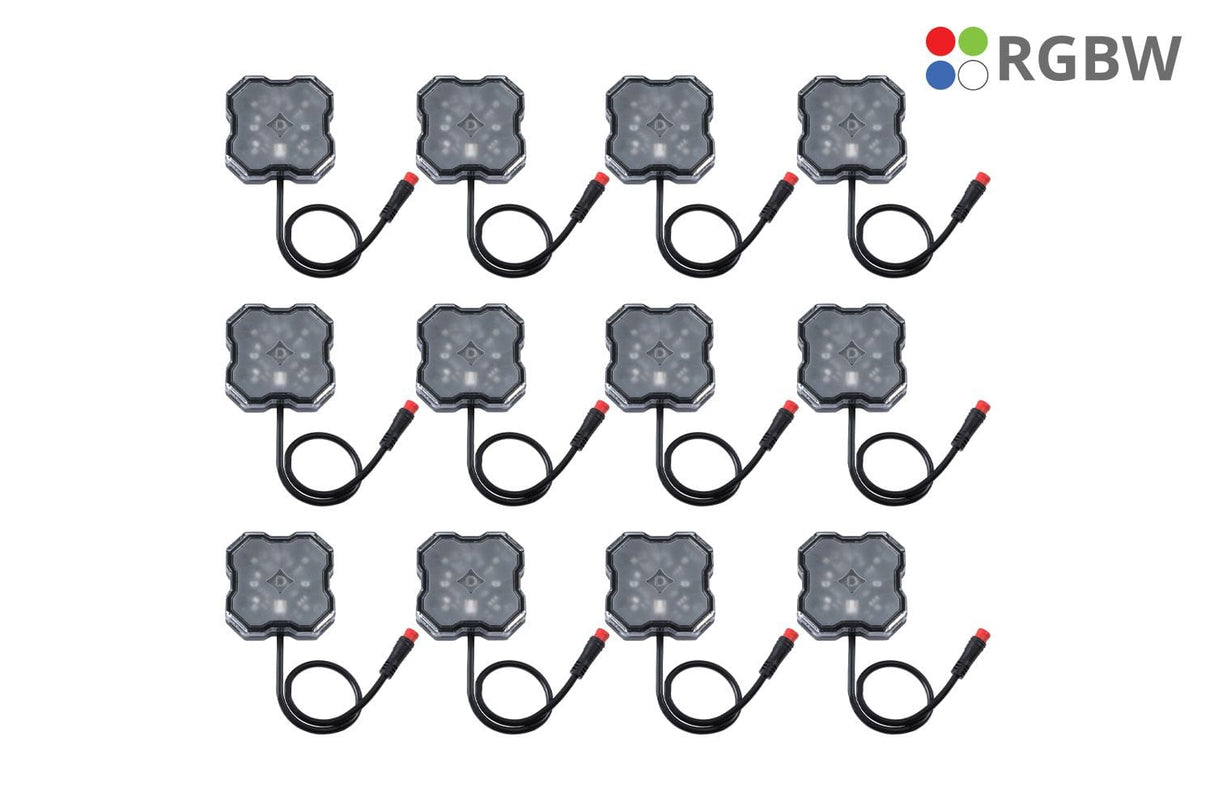

  • Twelve (12) Stage Series RGBW Rock Lights
  • Twelve (12) Rock Light Hardware Kits
  • Twelve (12) Magnet Mounts (optional)
  • One (1) Bluetooth RGBW Controller (optional)
  • One (1) Rock Light RGBW wiring harness
  • One (1) 1M Extensions
  • Seven (7) 3M Extensions
  • Four (4) 5M Extensions
  • Eight (8) M8 Splitters
  • Eighteen (18) Zip Ties
  • Installation guide
Quantity: Twelve (12)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

NOTE: Specifications listed here are for each individual Rock Light.
LED Color/Lens Type Measured Output
(lumens)
Peak Intesity
(candela)
White Diffused 75 lm 30 cd
Green Diffused 60 lm 25 cd
Red Diffused 50 lm 20 cd
Blue Diffused 20 lm 10 cd




Beam Angle: Round, 60°
Power (watts): 4.8
Current (amps @ 13.2V): 0.36
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Connector(s): M8 Input
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP68 Waterproof

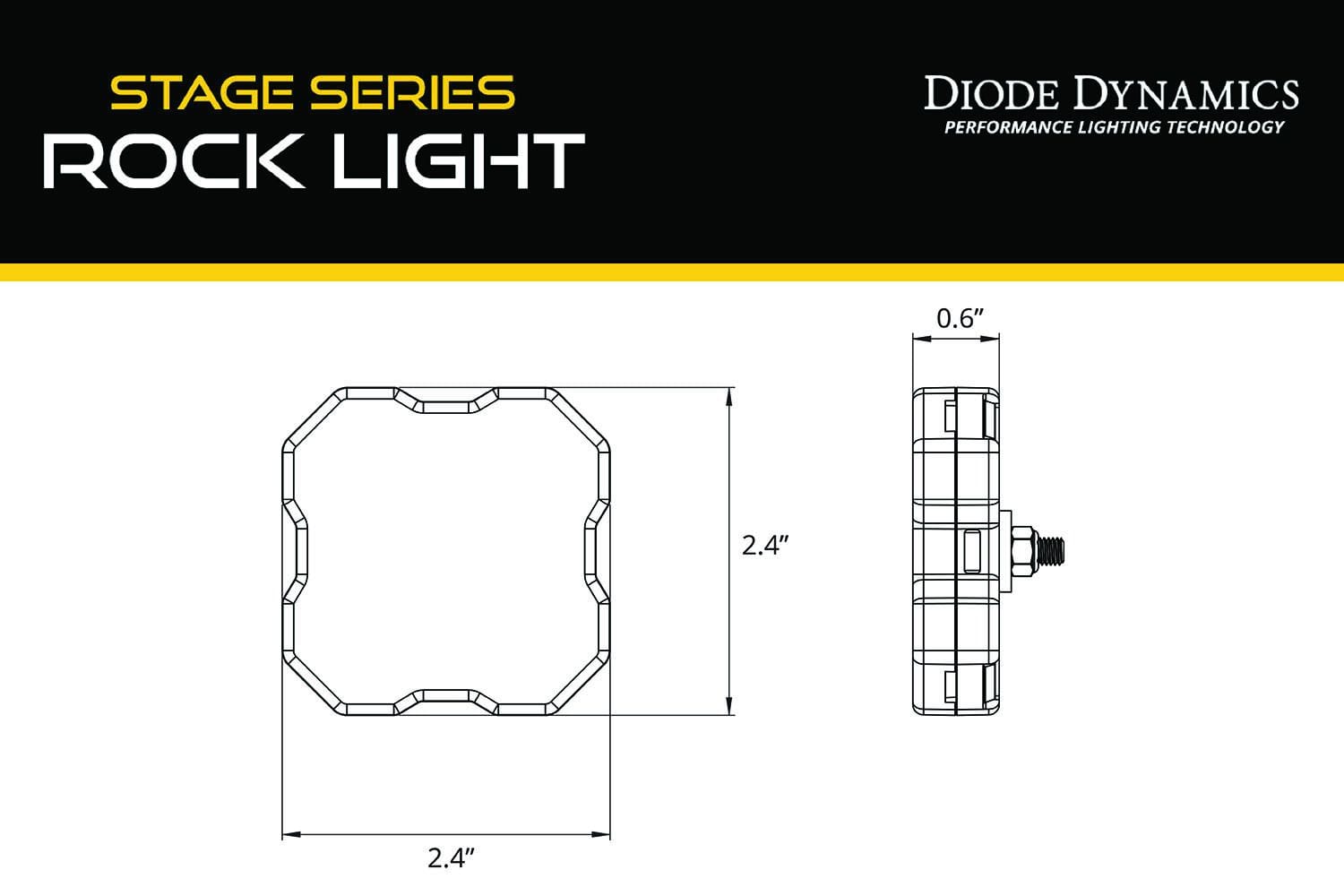

Product Dimensions (in): 2.4x2.4x0.6
100% Satisfaction Guarantee

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: Basic Wiring Only

Installation Guide: Click to download

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
