Diode Dynamics

Stage Series Reverse Light Kit For 2005-2015 Toyota Tacoma

Stage Series Reverse Light Kit For 2005-2015 Toyota Tacoma

Regular price $239.95
Regular price Sale price $239.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content

Description

Features

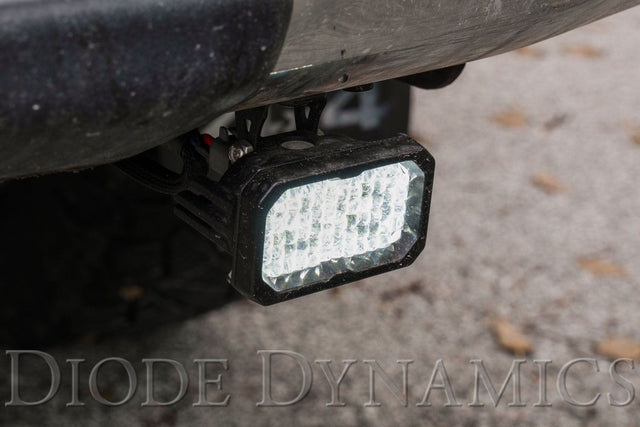

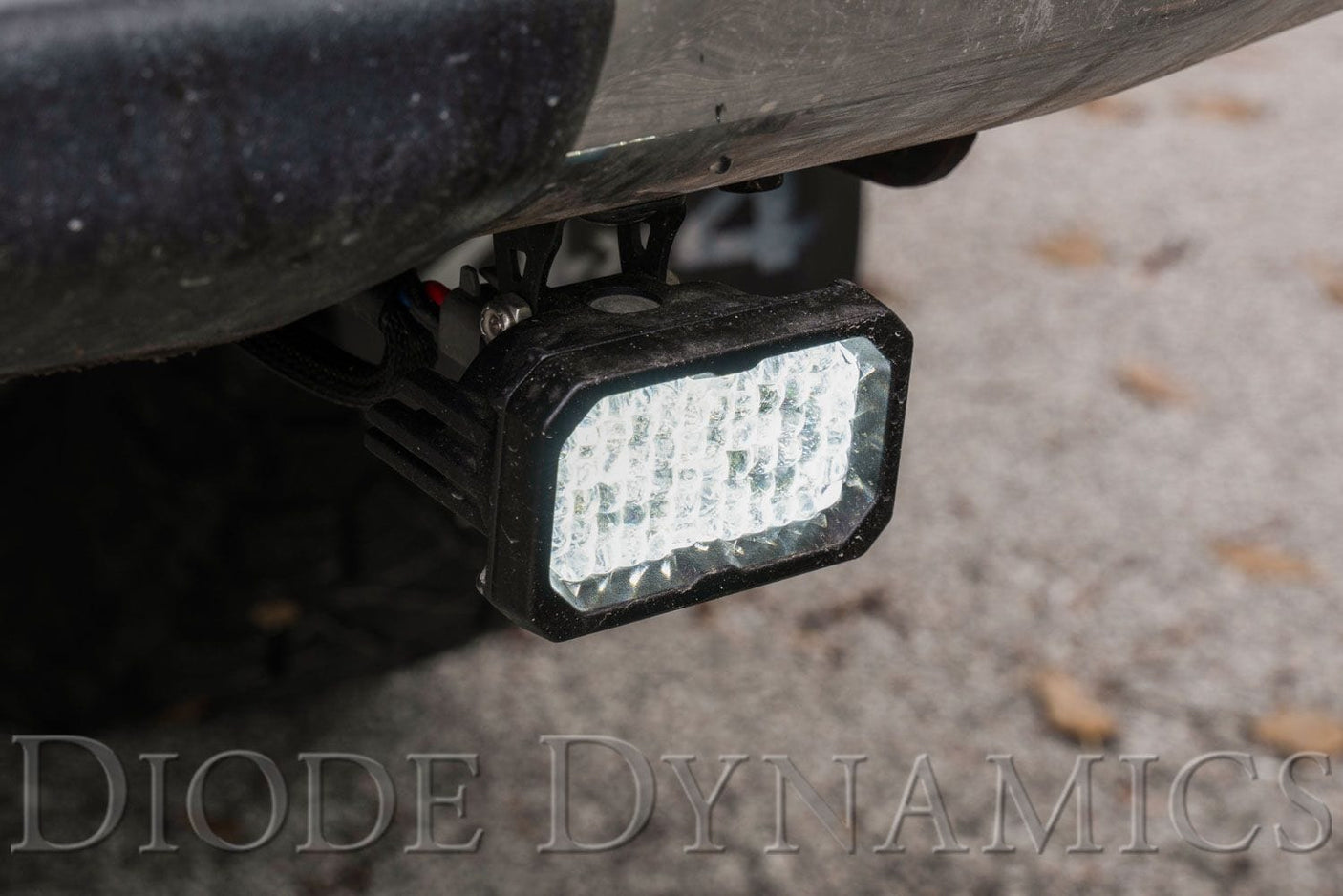

  • Allows you to mount SSC1 or SSC2 pods underneath the 2005-2015 Toyota Tacoma rear bumper.
  • Plug-and-play wiring harness, with OEM connectors and toggle switch override.
  • Provides high-power reverse light, and red accent light.
  • Designed and assembled in USA.

Overview

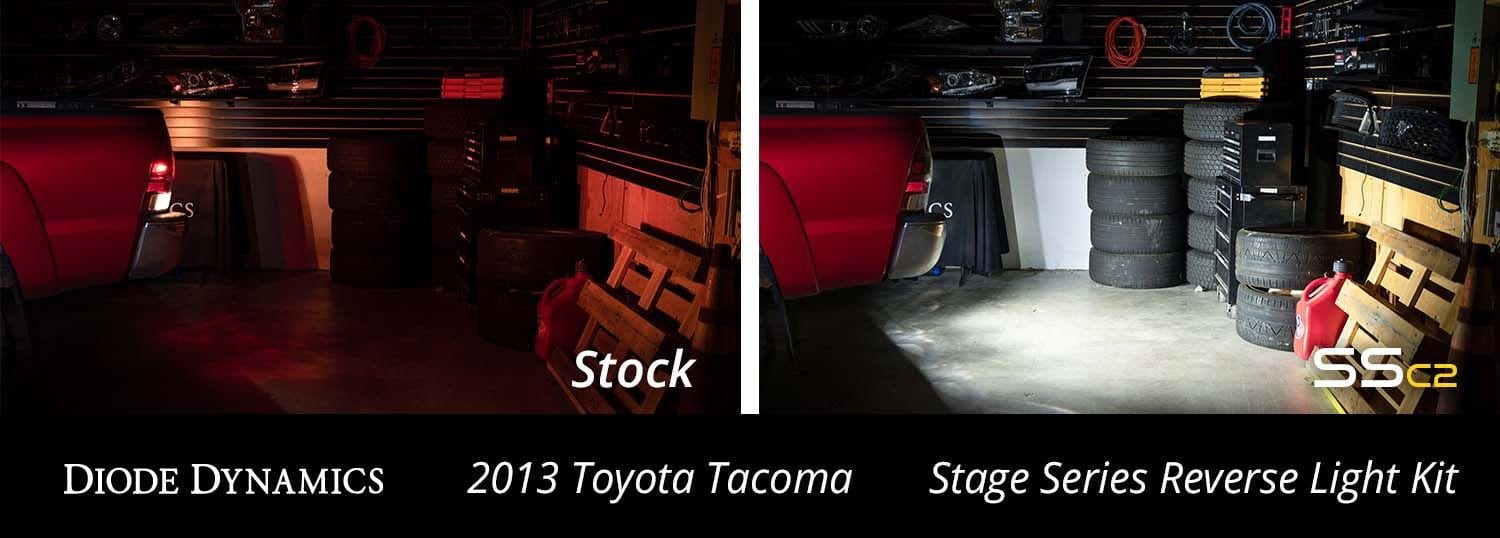

Overview. There's plenty of ways to add light behind your Tacoma, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and plug-and-play wiring harness, for trouble-free installation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time, or activate it automatically with your reverse lights, for a truly integrated solution.

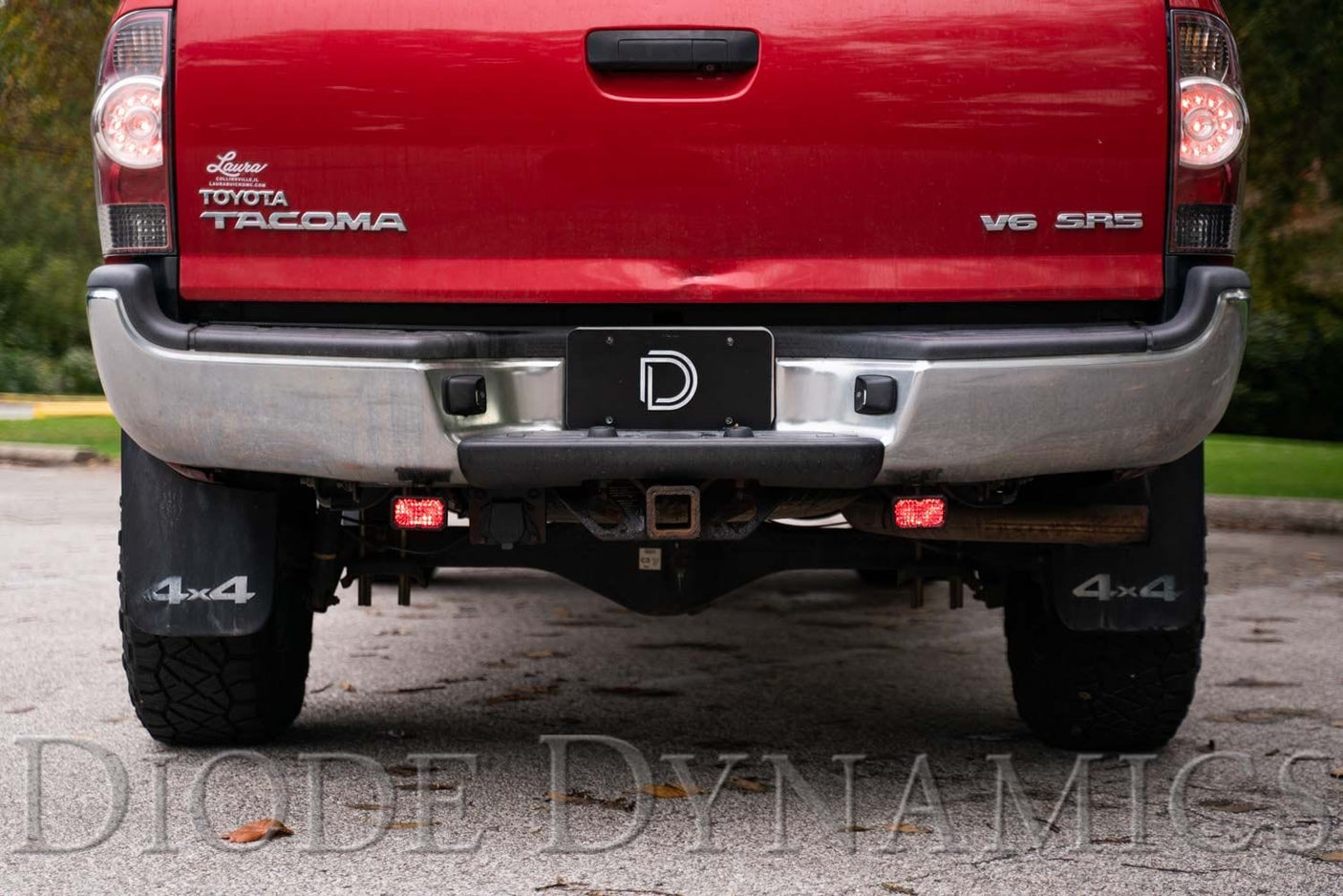

Plug and Play. Thanks to custom-molded OEM connectors, this kit is completely plug-and-play. The included adapter harness plugs right into your factory tail lights for easy installation and operation. No cutting, drilling, or additional wiring needed! The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

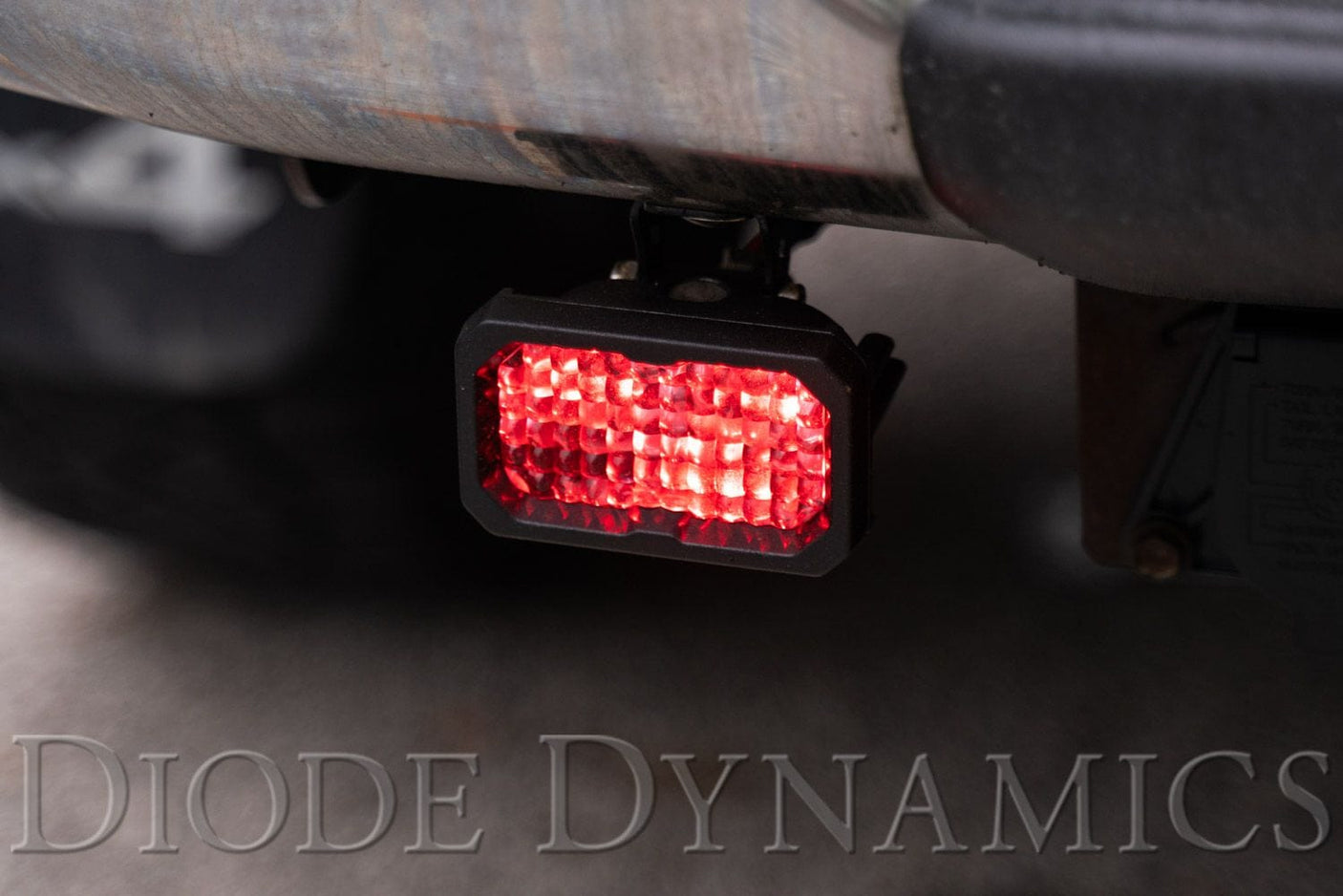

Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

Stage Series C2 Beam Patterns

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

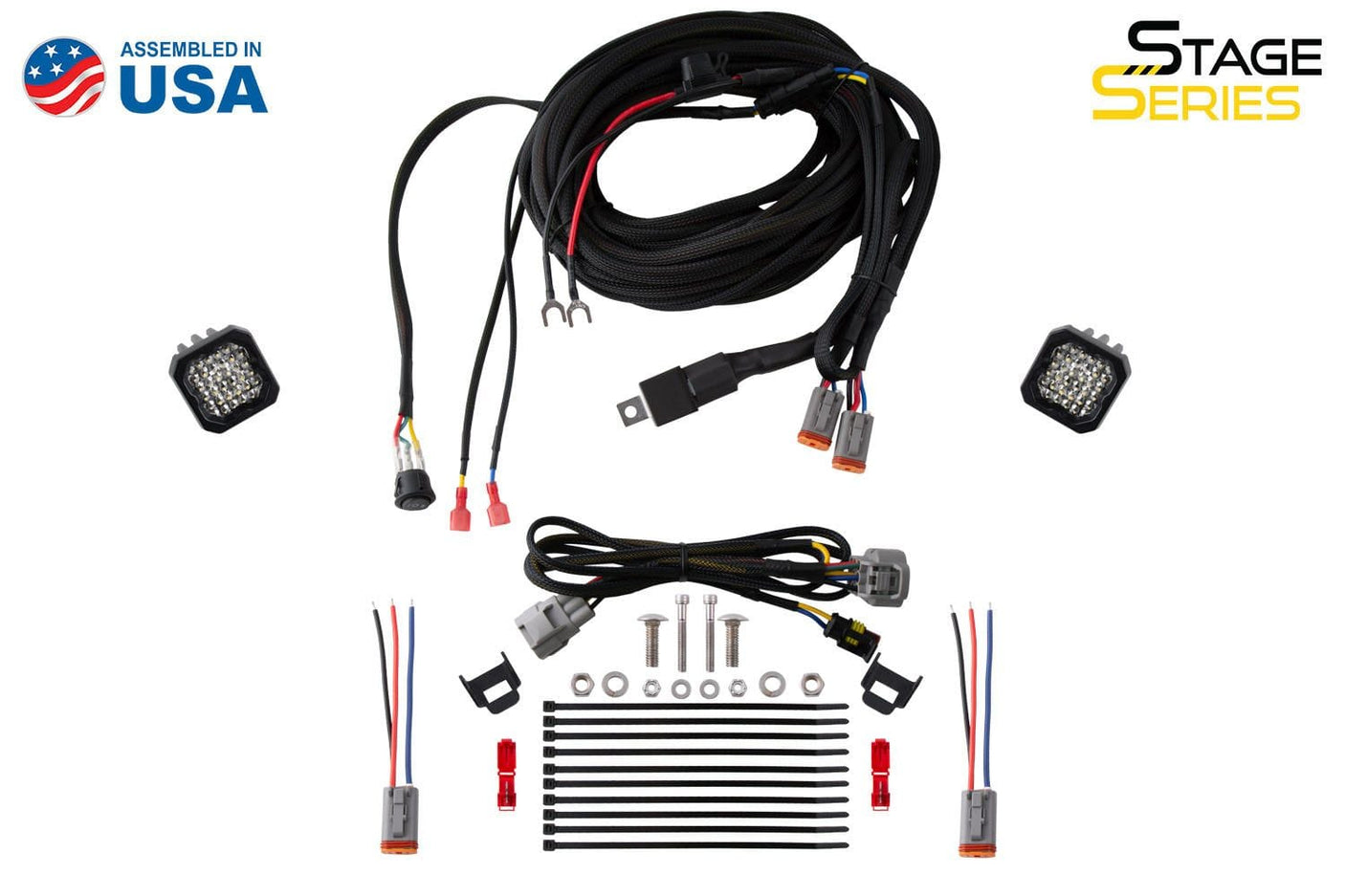

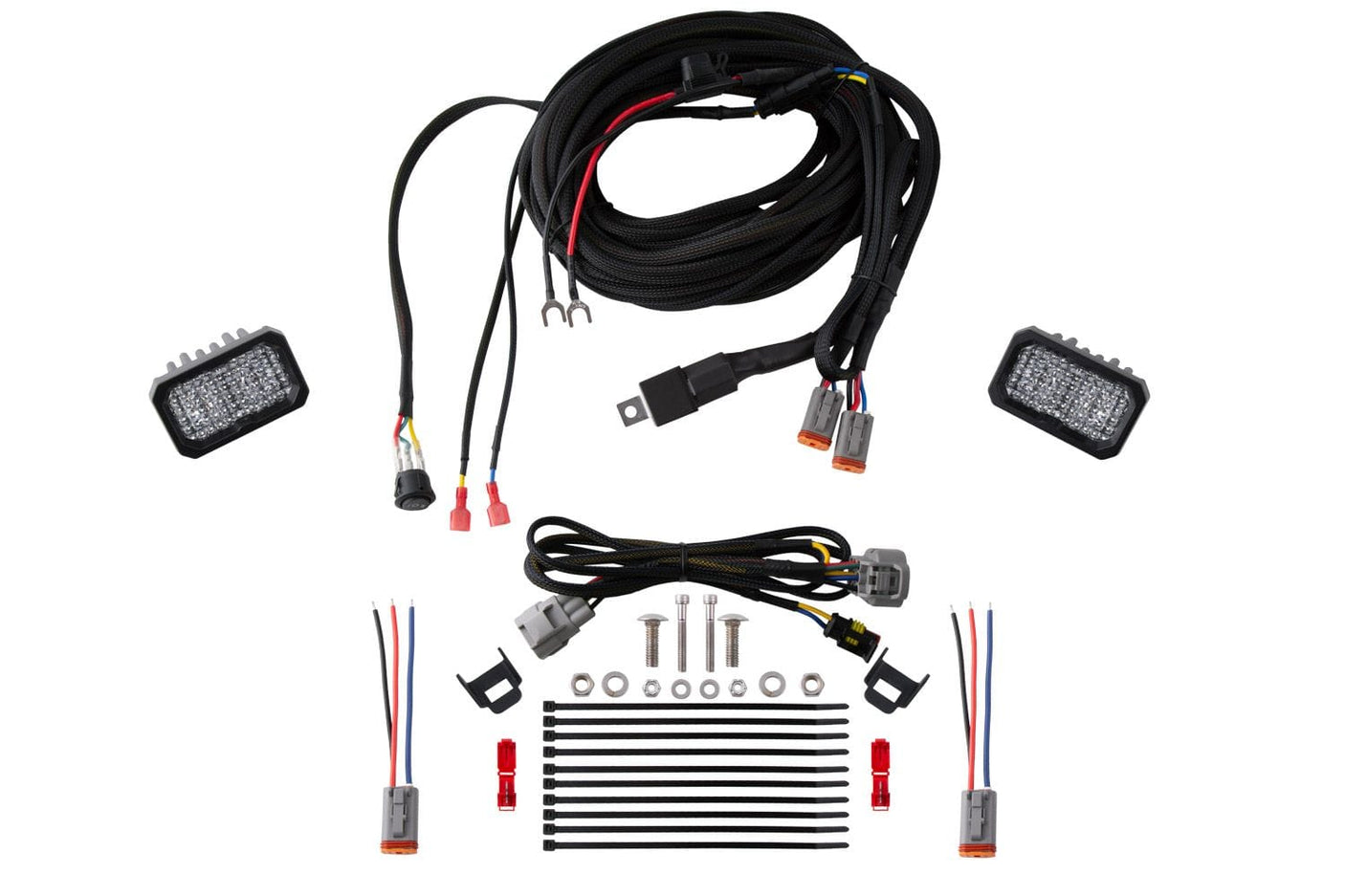

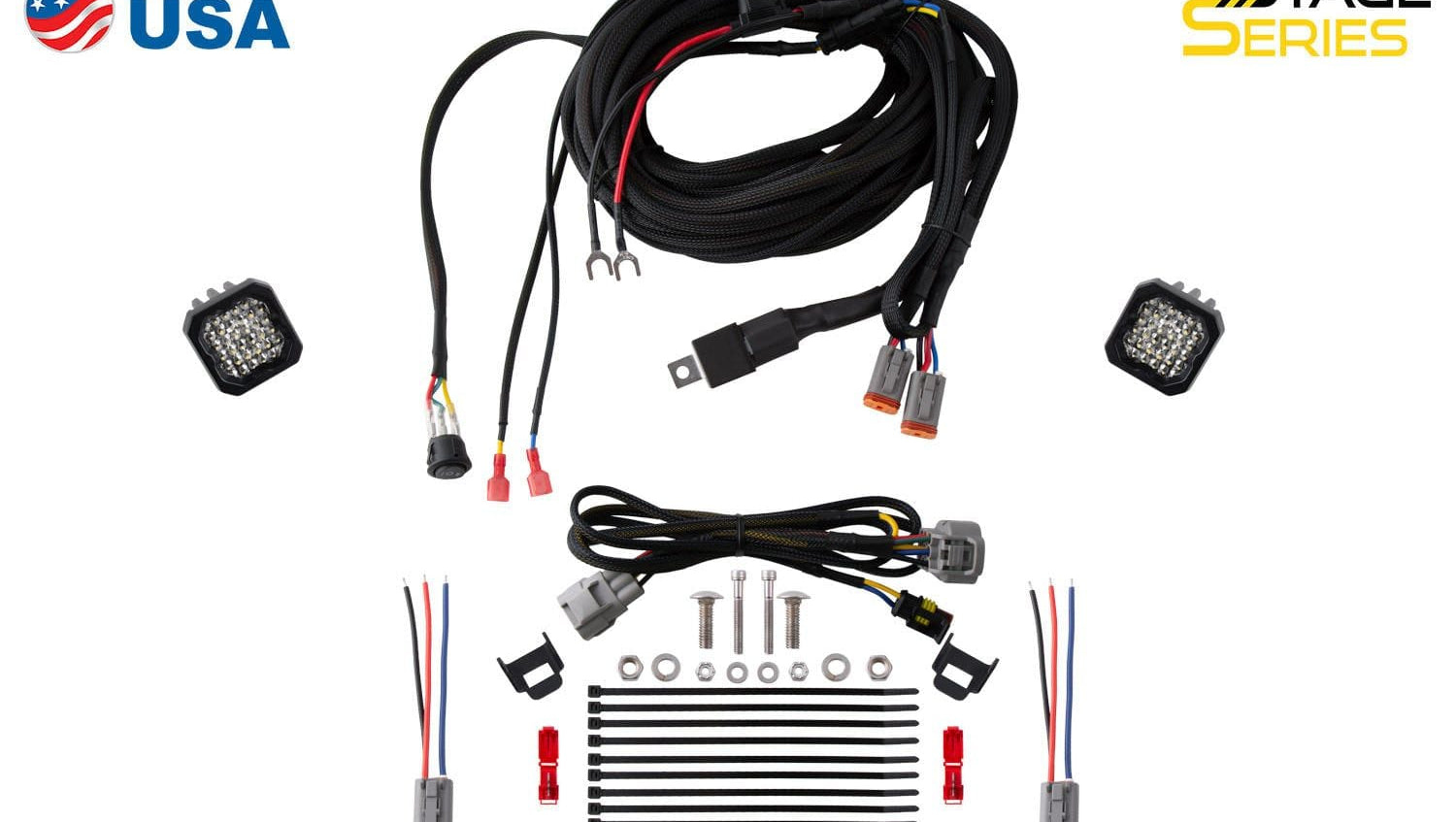

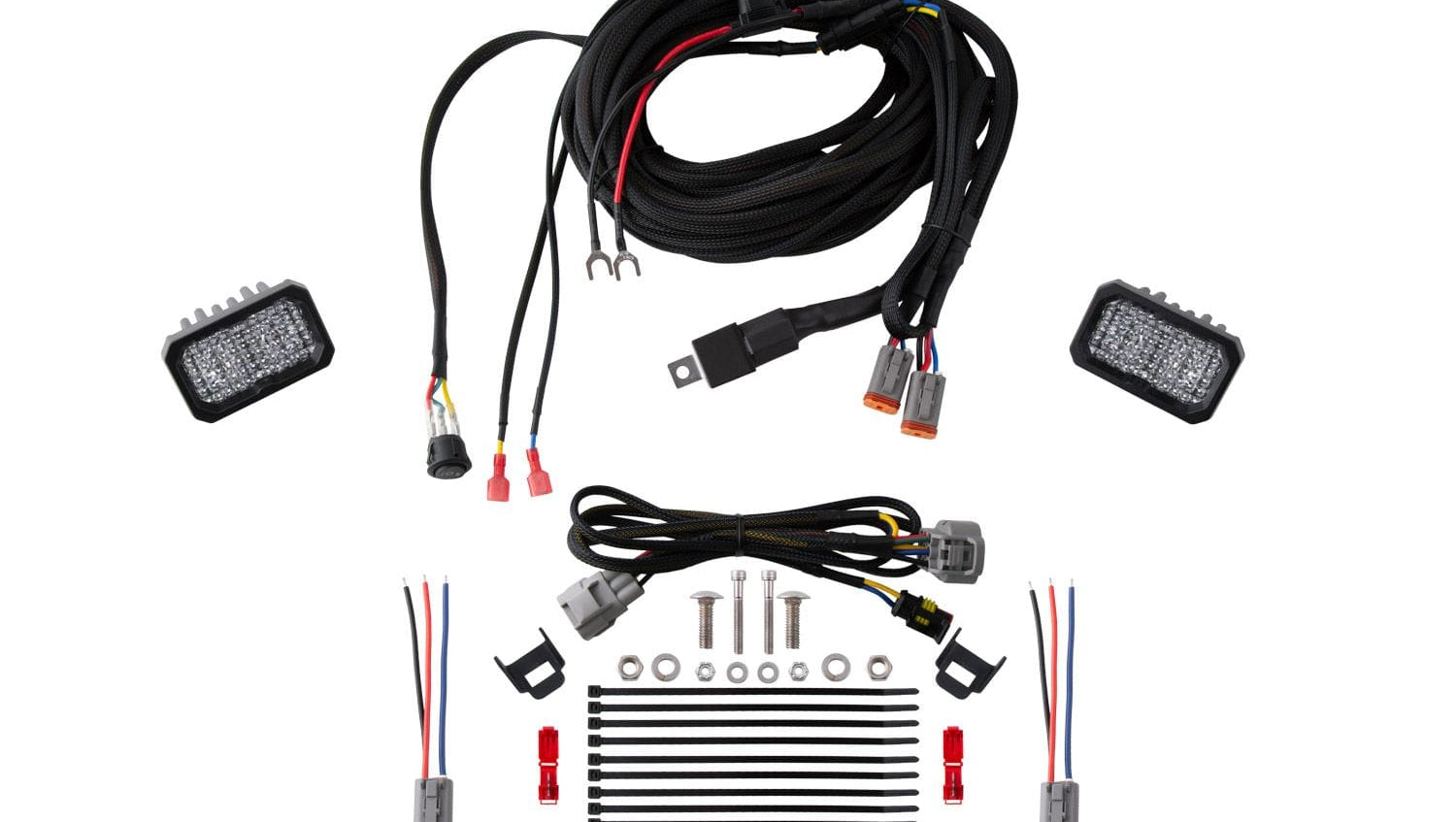

In the Box:
  • Two (2) SSC1 or SSC2 Standard LED Pods
  • One (1) Universal Reverse Light Wiring Harness
  • One (1) Adapter Harness for 2005-2015 Toyota Tacoma
  • Two (2) Mounting brackets
  • Ten (10) Zip Ties
  • Two (2) T-Taps
  • Mounting hardware
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Make: Toyota
Model: Tacoma
Years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

NOTE: Specifications listed here are for each individual pod.

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SSC1 Sport 400 cd 4 lux 1,030 lm 1,449 lm 6000K White
SSC1 Pro 925 cd 9 lux 2,300 lm 2,375 lm 6000K White
SSC2 Sport 375 cd 4 lux 871 lm 1,130 lm 6000K White
SSC2 Pro 700 cd 7 lux 1,988 lm 2,898 lm 6000K White
Color Temp (CCT): 6000K
Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, SSC2 Sport: 7.7, SSC2 Pro: 25.6
Operating Voltage: 9-16V
Current (amps @ 12.8V): SSC1 Sport: 1, SSC1 Pro: 1.5, SSC2 Sport: 0.6, SSC2 Pro: 2
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Unit Weight (lb): SSC1: 3.25 SSC2: 3.5
Product Weight (lb): SSC1: 3.75 SSC2: 4.15
Make: Toyota
Model: Tacoma
Years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
100% Satisfaction Guarantee

Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Modification: None
Installation Guide: Click to download

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
