Diode Dynamics

Stage Series LED Bed Light Kit For 2024 Toyota Tacoma

Stage Series LED Bed Light Kit For 2024 Toyota Tacoma

Regular price $199.95
Regular price Sale price $199.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content

Description

Features

  • Direct fitment on the 2024+ Toyota Tacoma.
  • Allows you to mount four LED rock lights in your truck bed.
  • 10-watt, 800 lumen peak output.
  • Plug-and-play, simple installation.
  • Engineered and Assembled in USA.

Overview

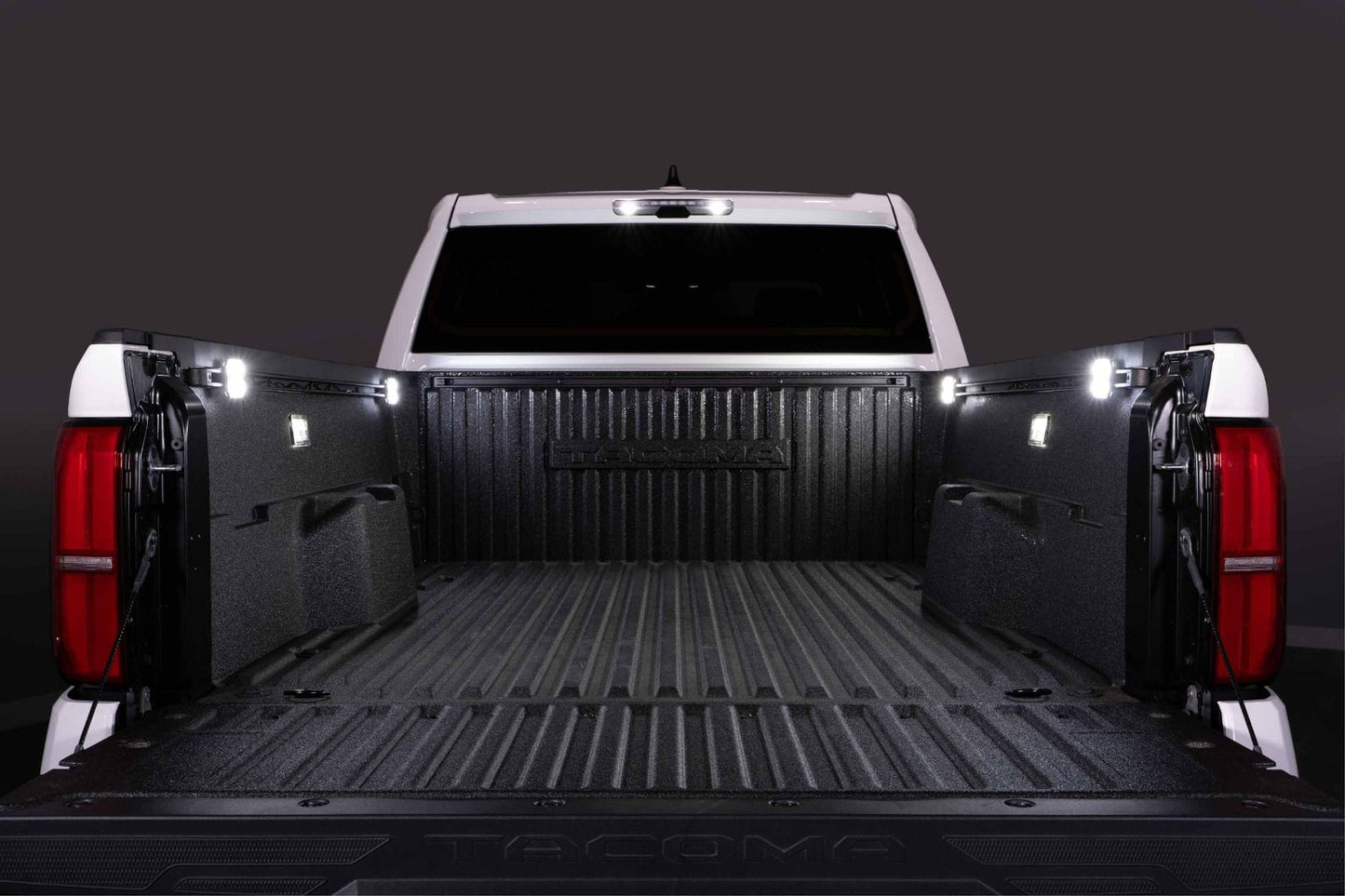

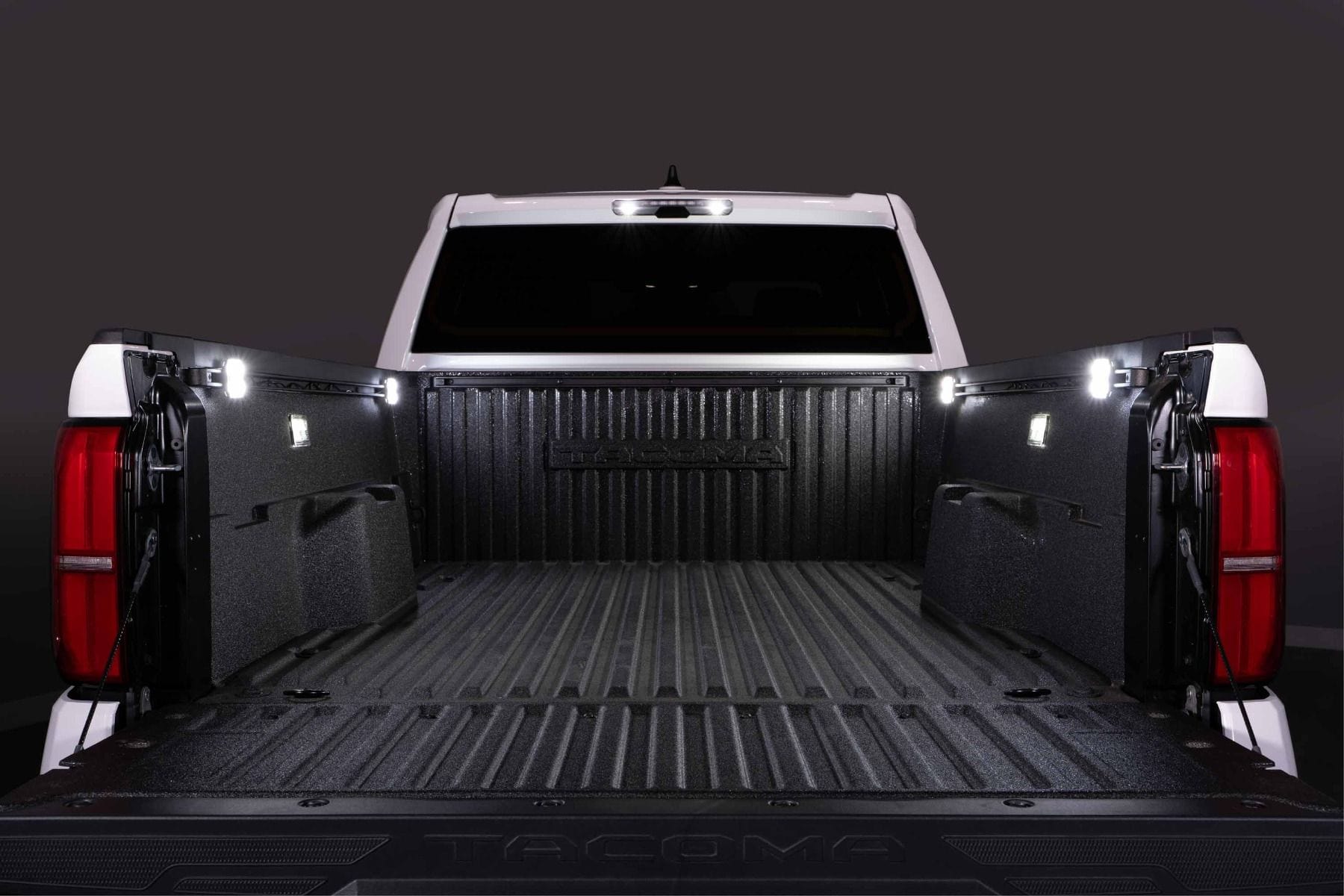

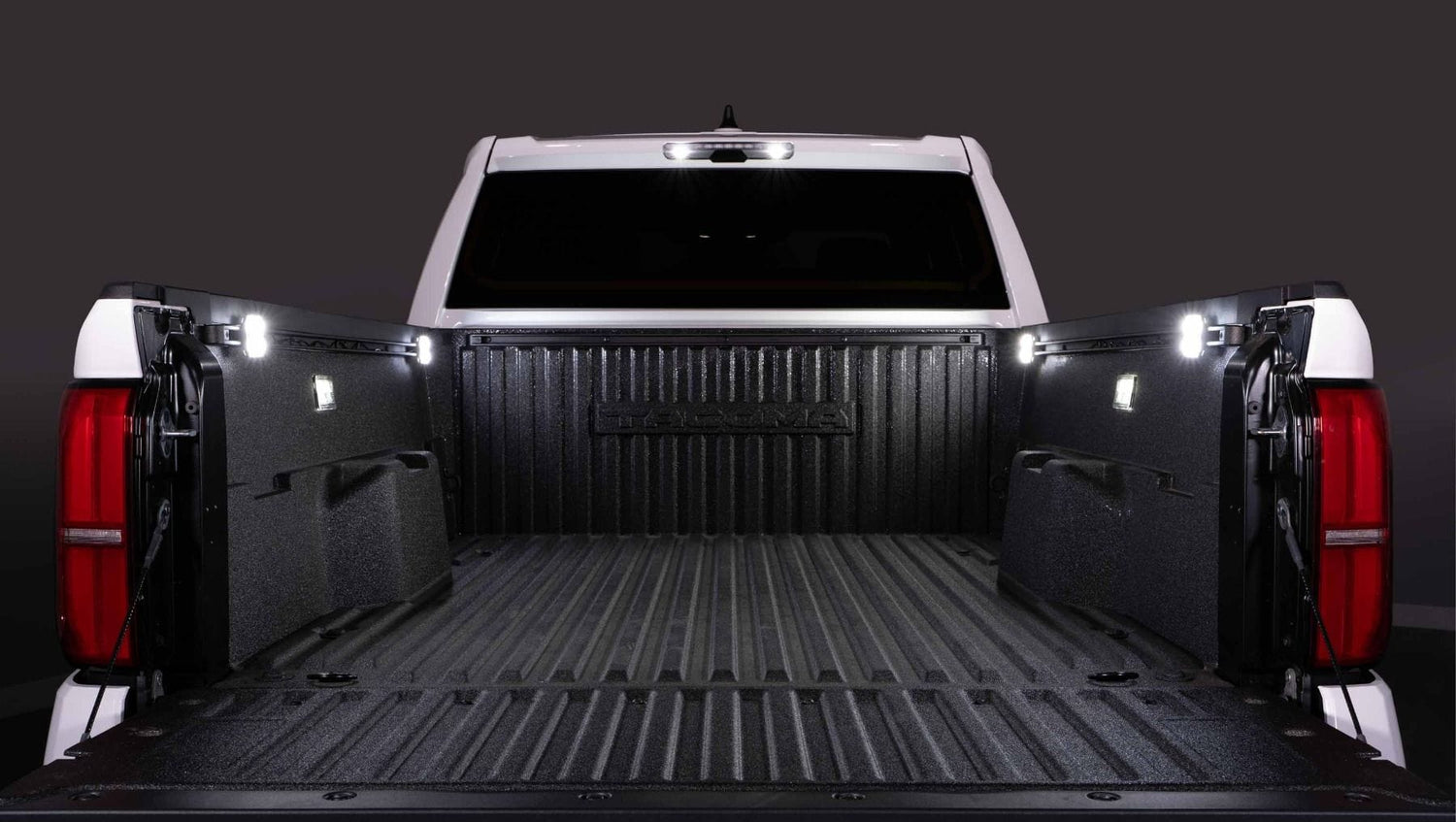

Add significantly more light output to your truck bed at night with our Stage Series LED Bed Light Kit for the Toyota Tacoma! This kit allows you to mount four Stage Series LED Rock Lights to the bed rail on your truck bed, giving you a huge increase in light output. The included wiring harness plugs into your factory wiring, allowing the rock lights to illuminate when you open the tailgate, just like the factory bed lights.

Unmatched Light Output. The factory bed lights just don't provide enough light output when loading or unloading your truck bed at night. By pairing optically engineered lenses with high-powered LEDs, the Stage Series Rock Lights included in this kit provide a significant increase in output that's several times brighter than stock bed lights alone. Plus, they automatically come on when you open the tailgate!

Dual Power Levels. The Stage Series Rock Lights included in this kit use a simple 3-wire system, allowing you to select a low-power or high-power mode. The included 3-way switch allows you to toggle between low and high power with ease, providing optimal output for any situation

Optically-Engineered, Interchangeable Lenses. When adding more light output to your truck bed, most options on the market are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating. And the best part? The lenses are interchangeable, and can be swapped out easily for a quick color change, with either clear or diffused options. Click here to find extra interchangeable lenses.

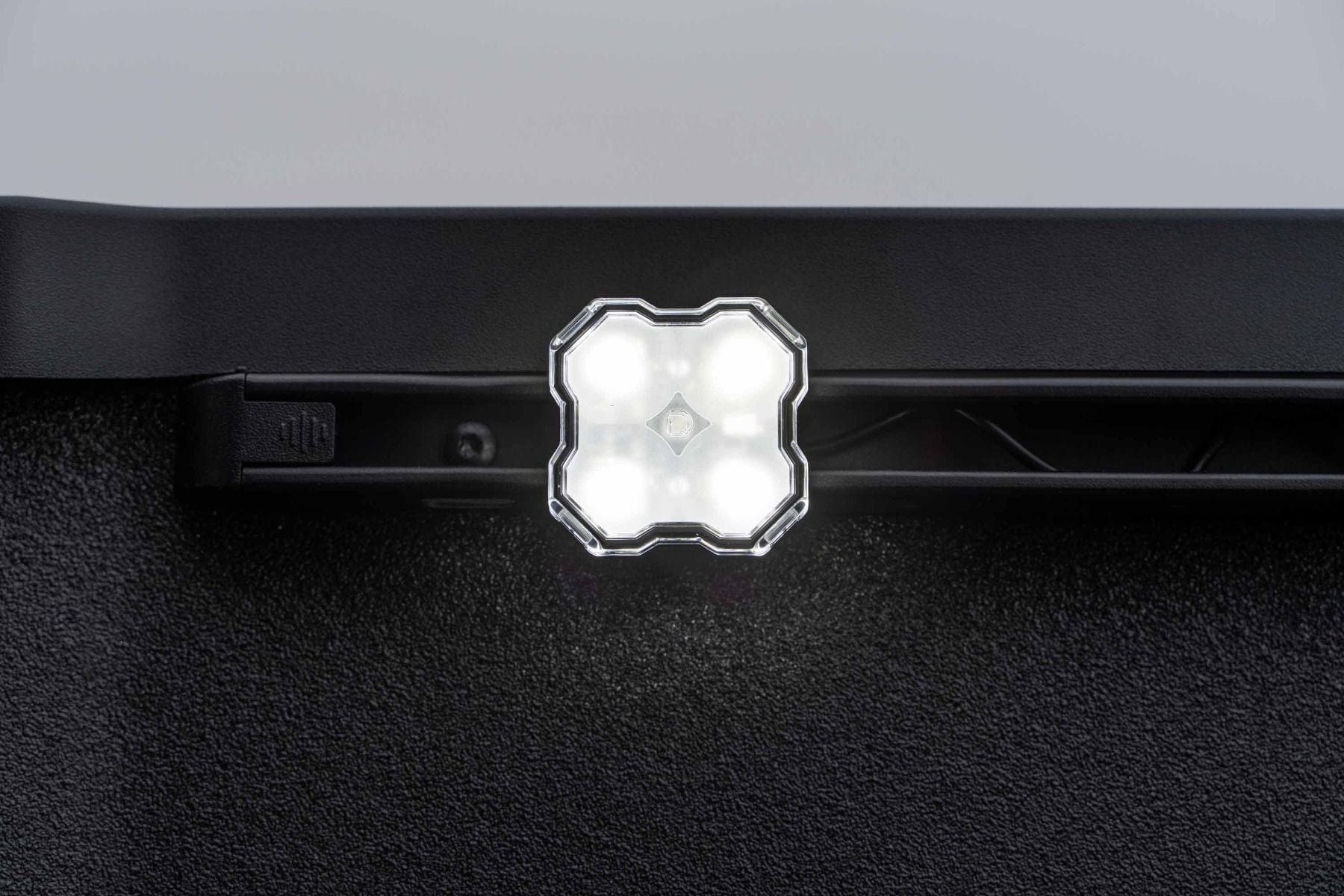

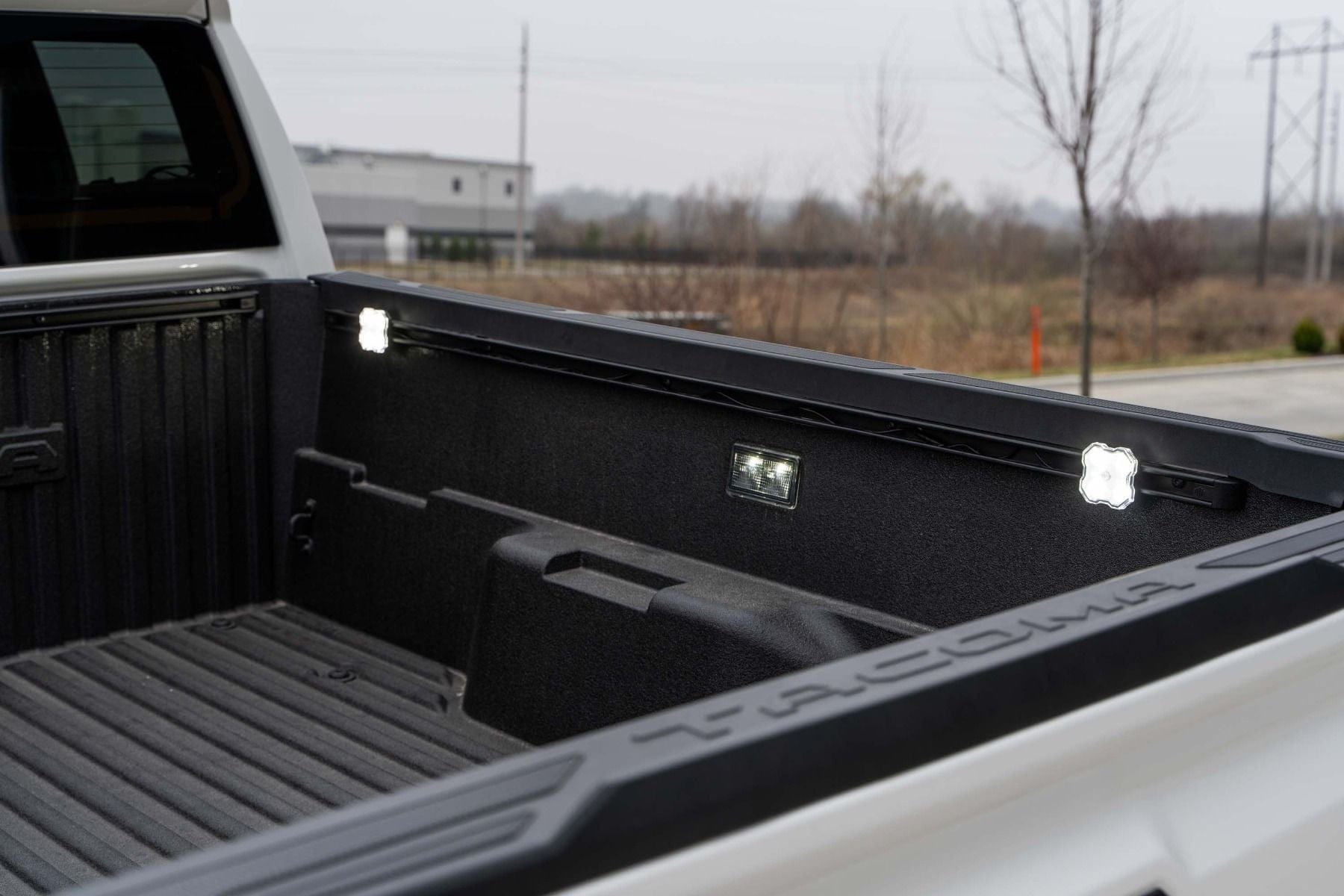

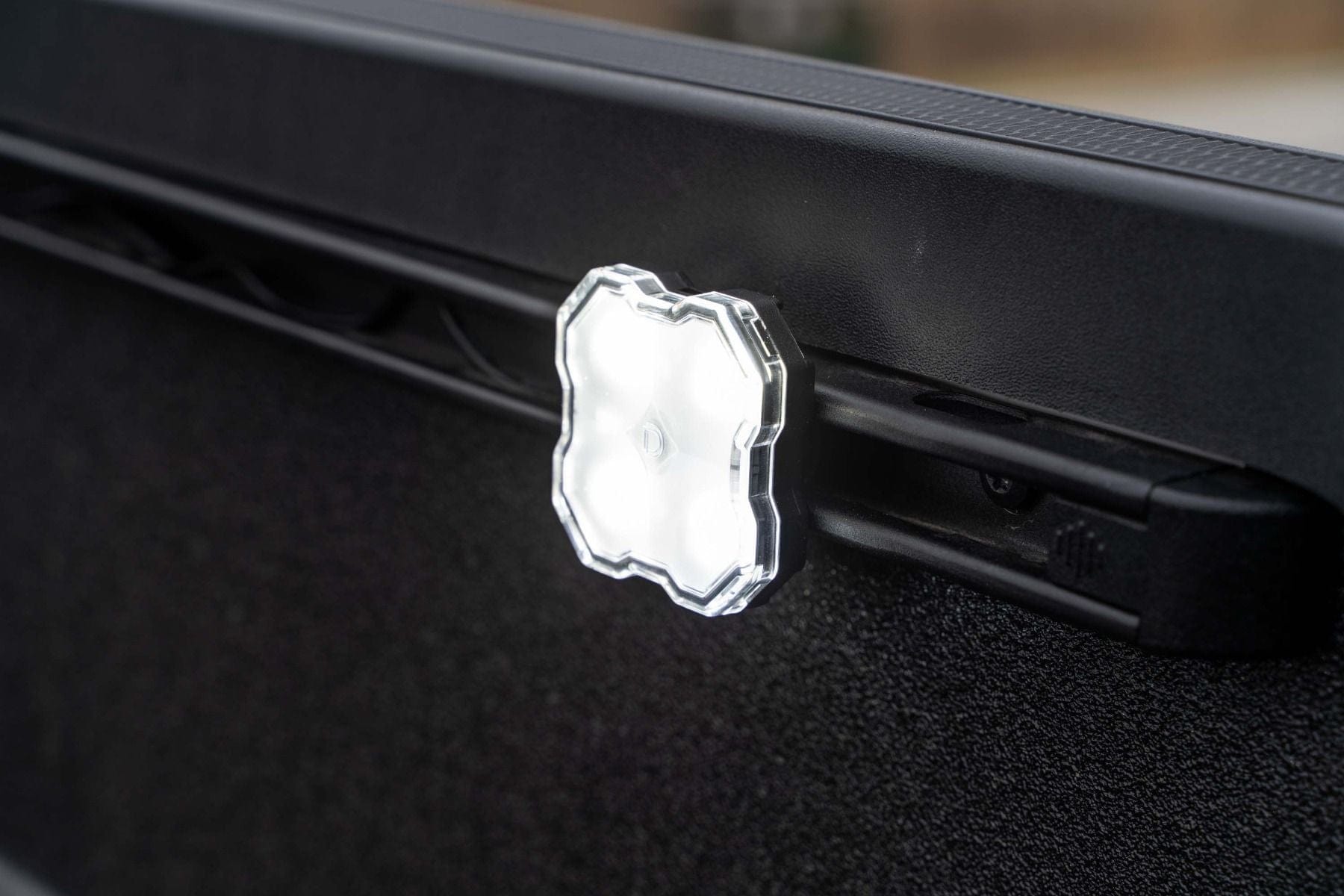

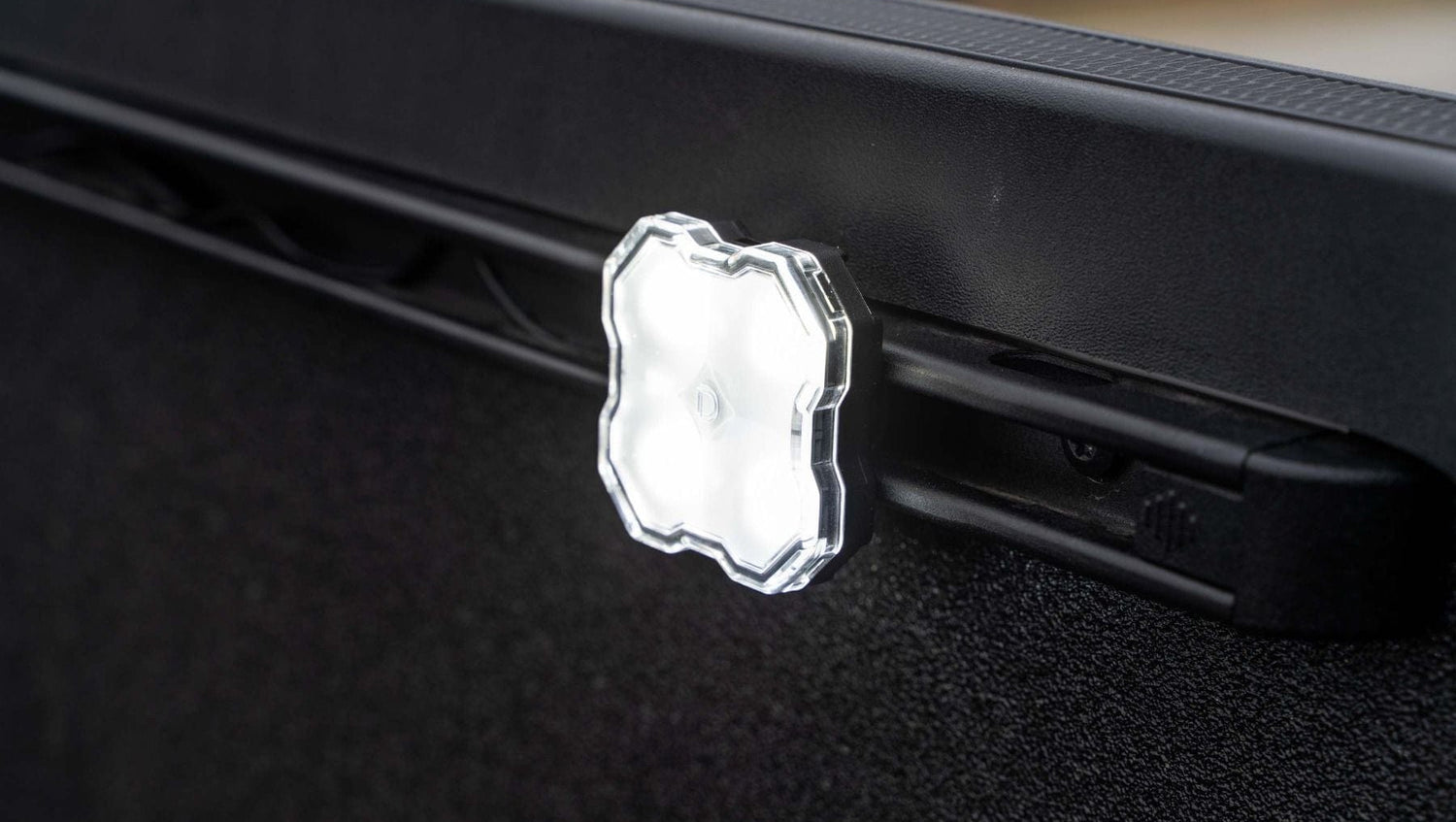

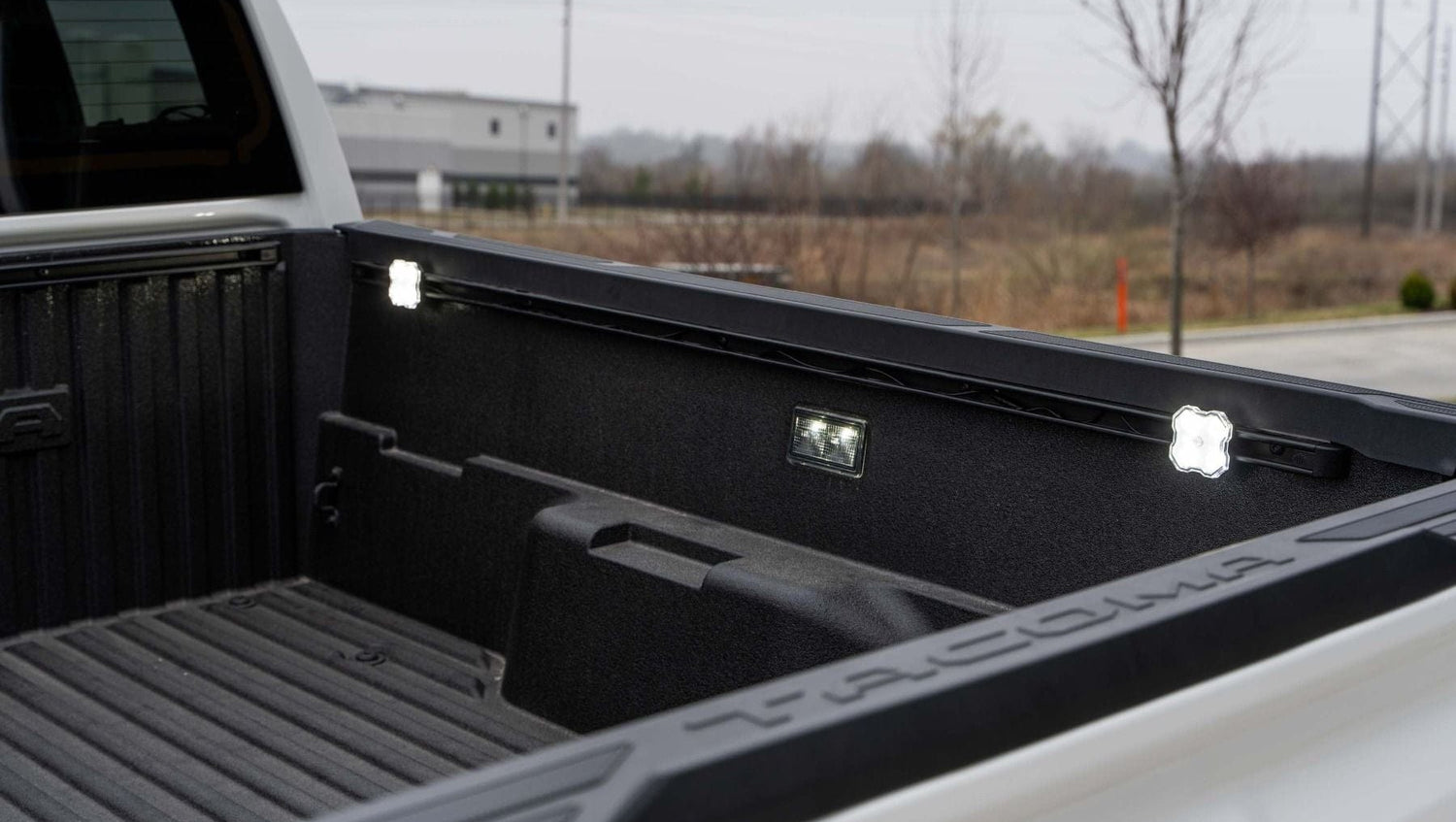

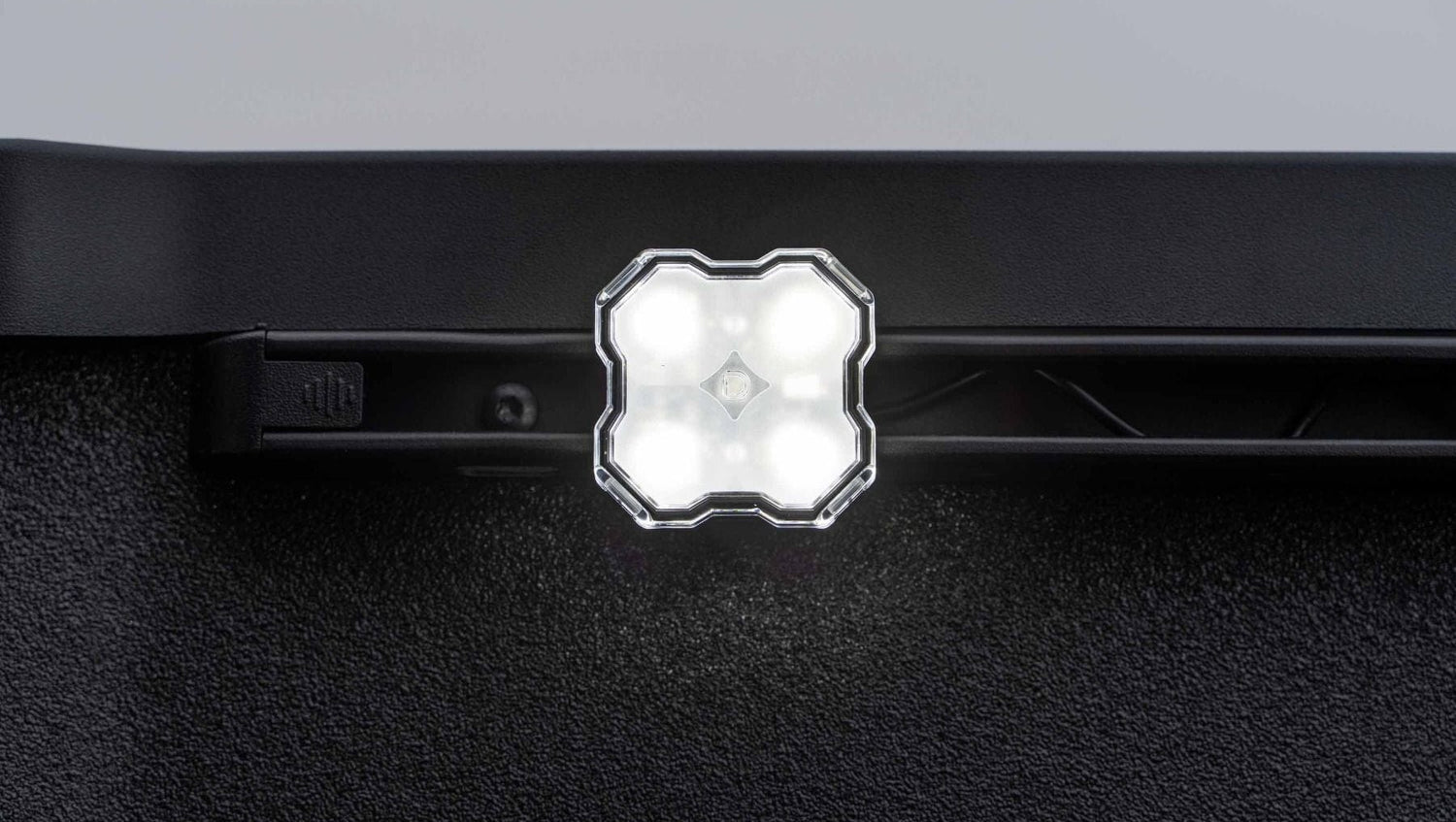

Simple Installation. The included wiring harness plugs directly into the factory bed light wiring for simple installation. The Stage Series LED Rock Lights will then mount onto the included T-Slot Nut to mount it along the factory bed rail.

Proven Reliability. We know your bed lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Bed Lights will handle whatever you throw at them.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • Four (4) Stage Series Rock Lights
  • One (1) Stage Series Bed Light Wiring Kit
  • Four (4) T-Slot Nuts
  • Mounting Hardware
  • Installation guide
Quantity: Four (4)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee


Fitment

Make: Toyota
Model: Tacoma
Years: 2024

Measured Lumens: 800
Intensity (cd): 300
Color Temp (CCT): 5700K
Beam Angle: Round, 60°
Current (amps @ 13.2V): 1.1
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP68 Waterproof
Unit Weight (lb): 0.7
Product Weight (lb): 1.6
Shipped Weight (lb): 2.5
Make: Toyota
Model: Tacoma
Years: 2024
100% Satisfaction Guarantee

Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Modification: Minor Modification

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
