Diode Dynamics

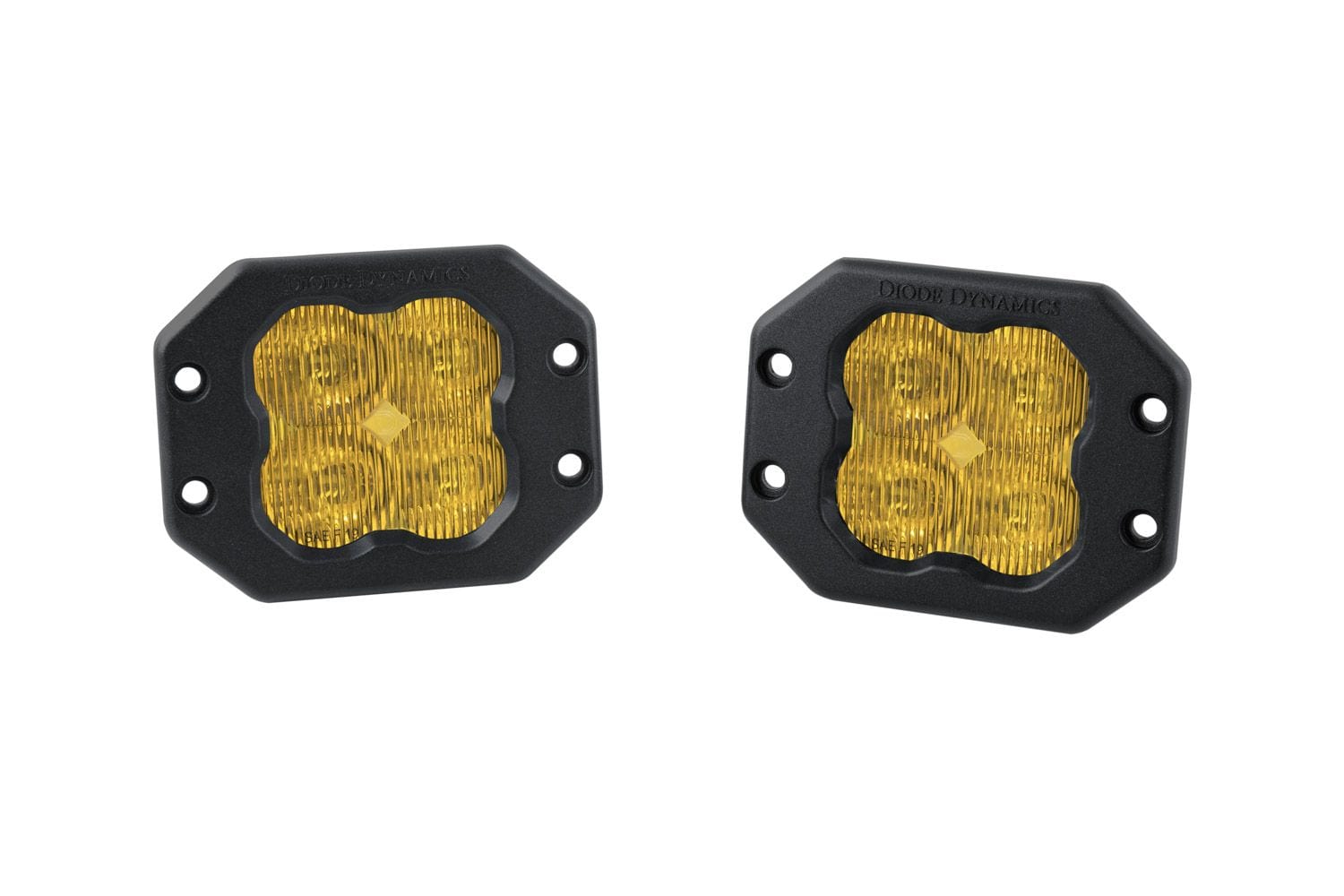

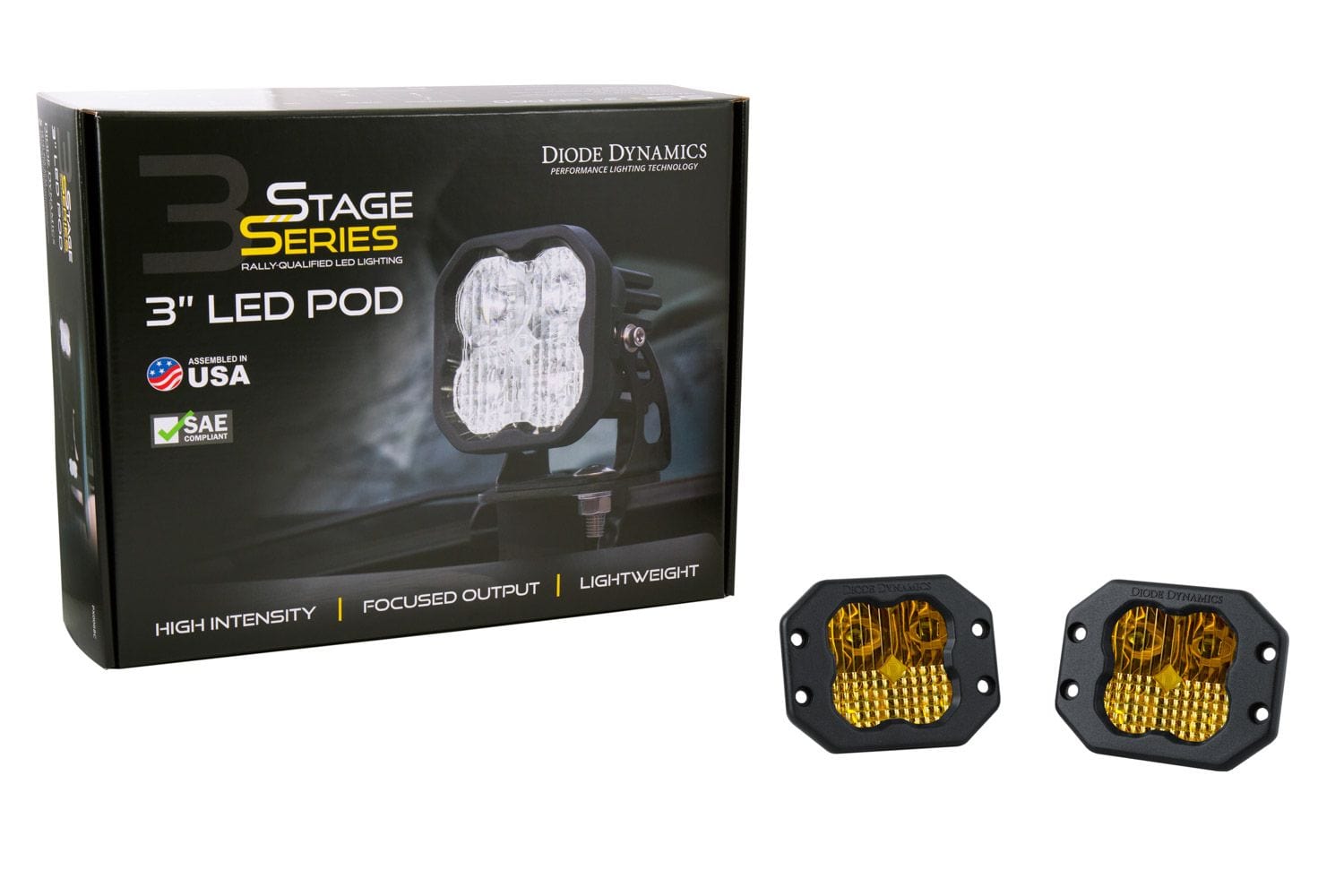

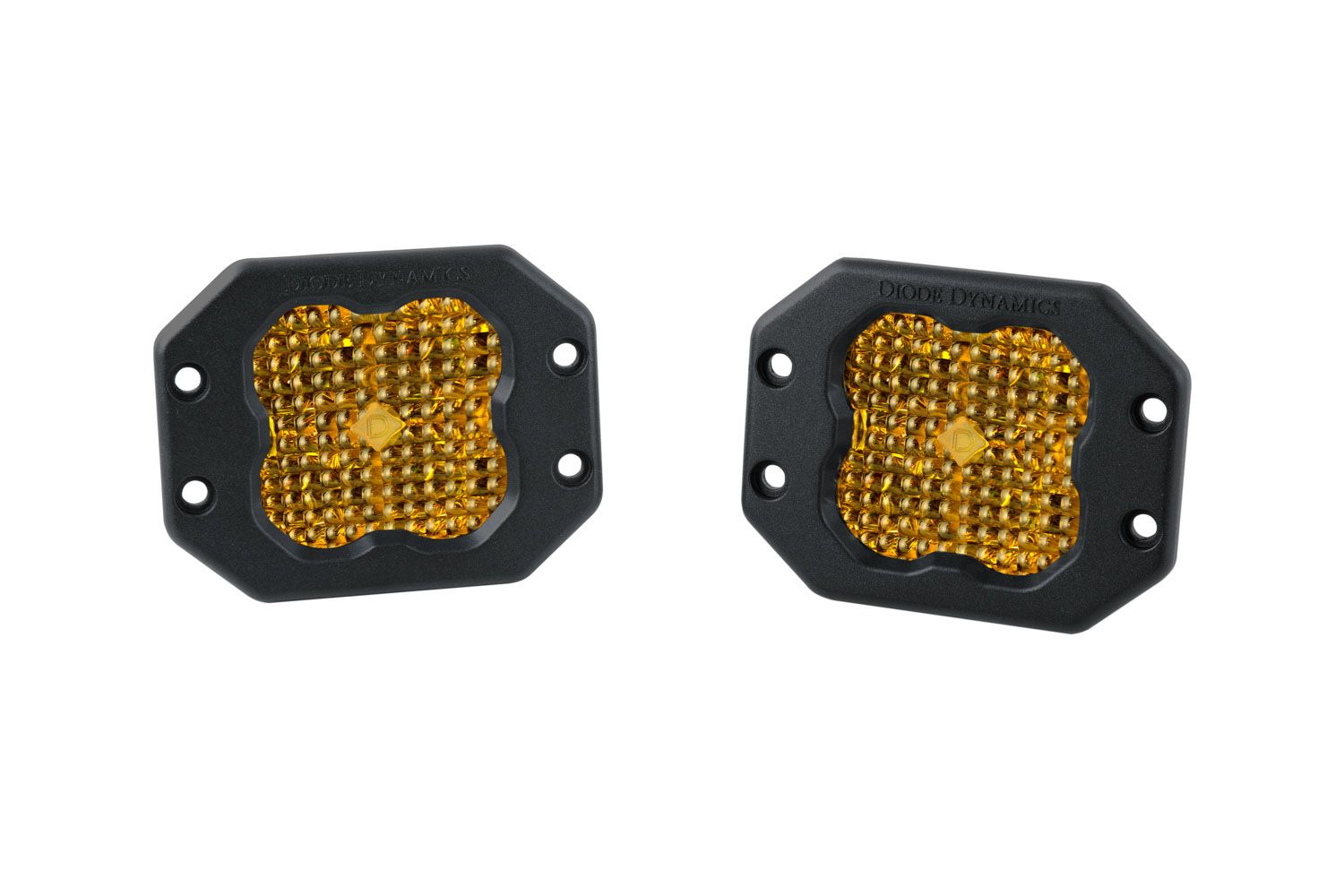

Stage Series 3" SAE Yellow Sport Flush Mount LED Pod (Pair)

Stage Series 3" SAE Yellow Sport Flush Mount LED Pod (Pair)

Regular price $239.95
Regular price Sale price $239.95
Sale Sold out
Shipping calculated at checkout.
Secured and Trusted Checkout With:
View full details

Collapsible content

Description

Features

  • Allows for flush installation on bumpers and truck beds
  • Advanced TIR optics provide high efficiency and focus
  • Available in Driving, SAE Fog, Flood, Combo, or Spot beam patterns
  • Pin-fin heatsink design, for superior thermal dissipation
  • Integrated Deutsch-style connector
  • Durable powdercoated aluminum construction
  • Engineered and Assembled in USA

Overview

Add LED pods to your bumper, truck bed, or anywhere else you can think of with our SS3 Flush Mount Pod Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included flush mount bezel, the SS3 Flush Mount Kit is extremely versatile and once installed has a clean, factory-style appearance.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

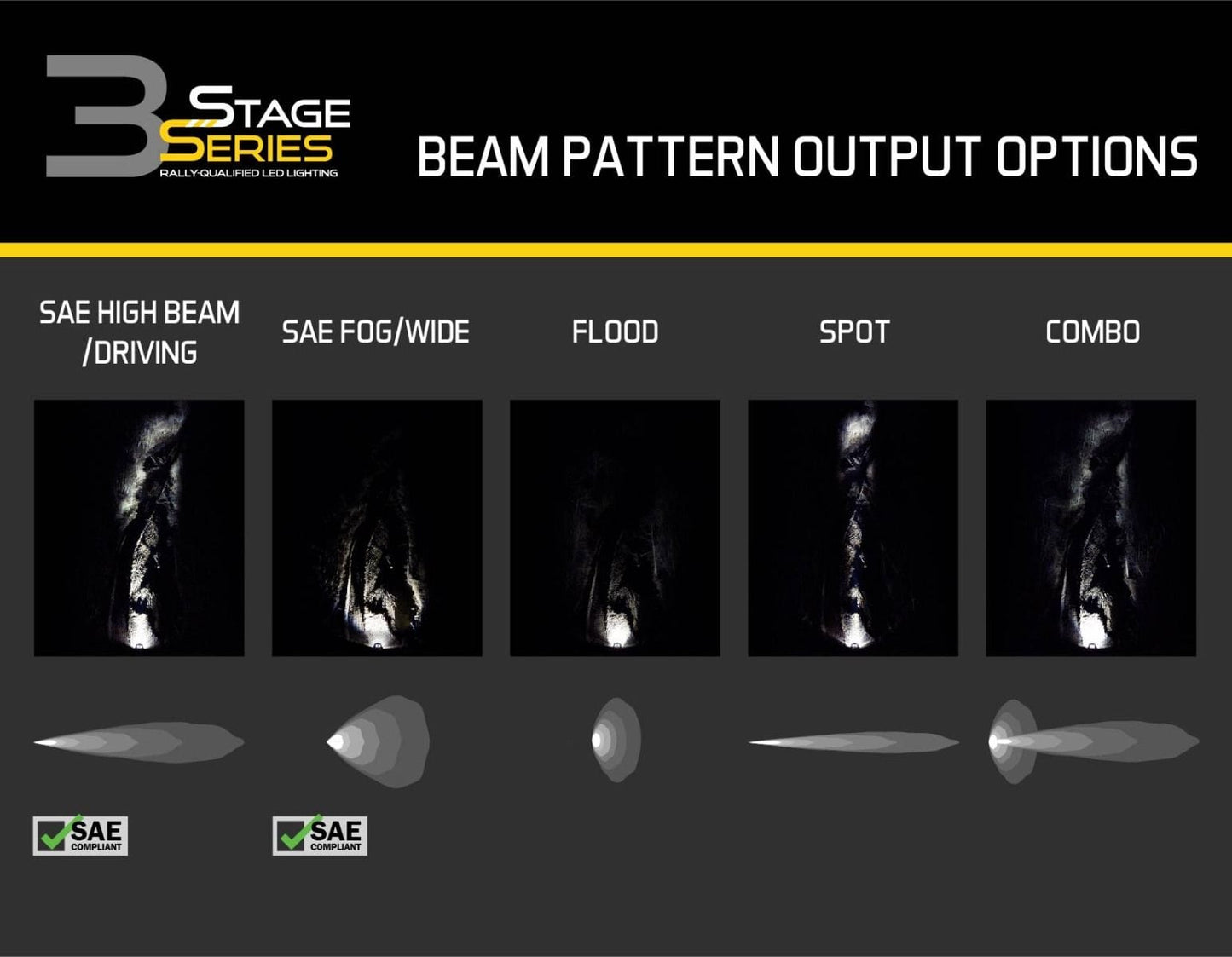

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

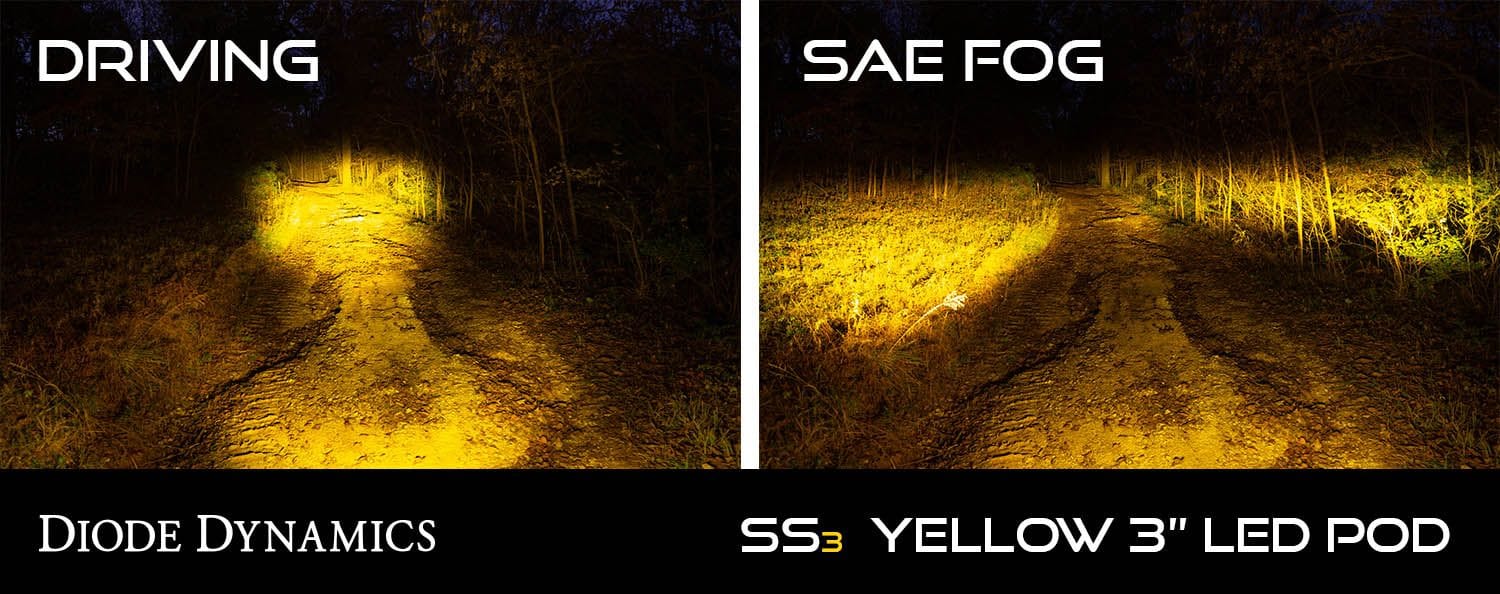

Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SS5 Backlight Functionality

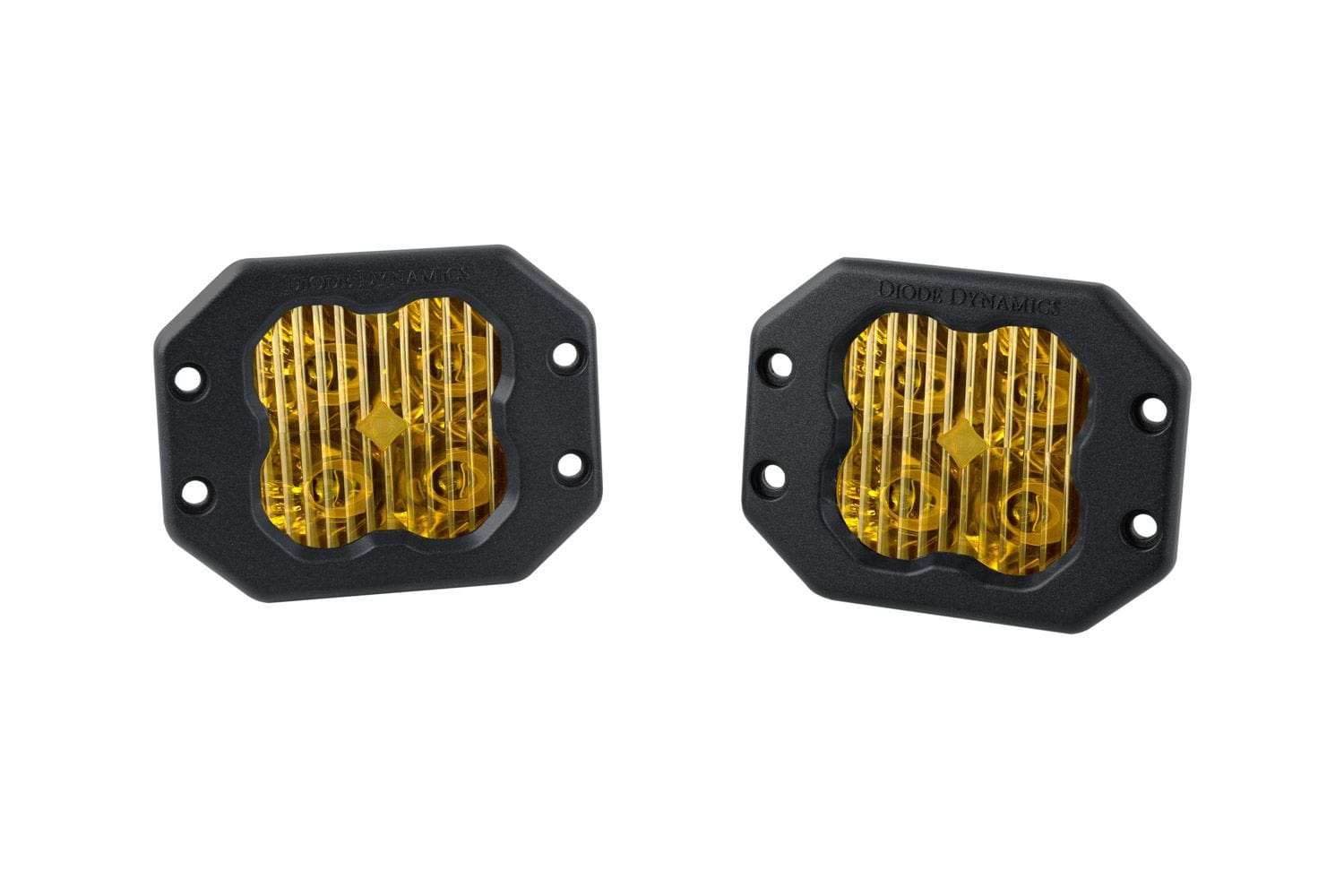

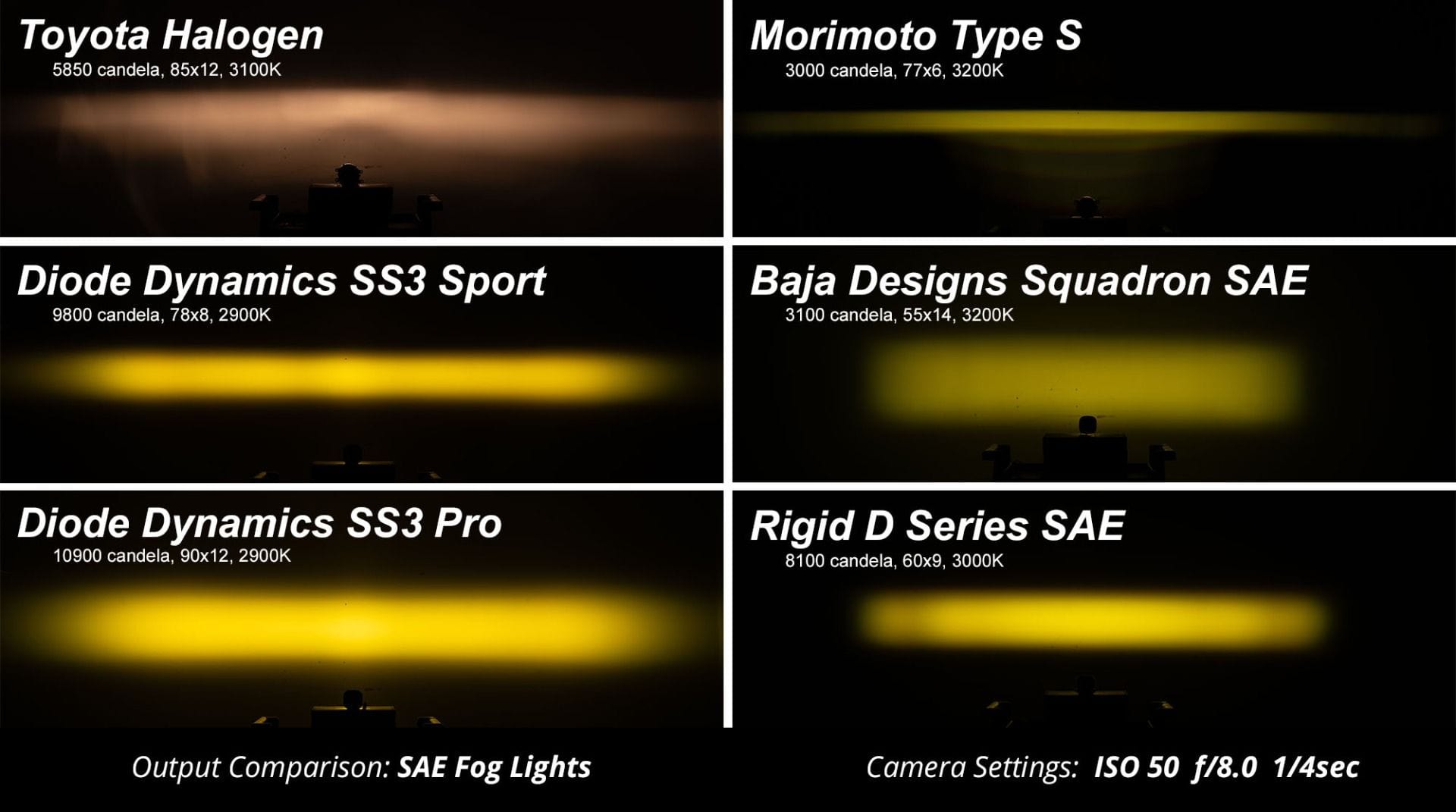

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

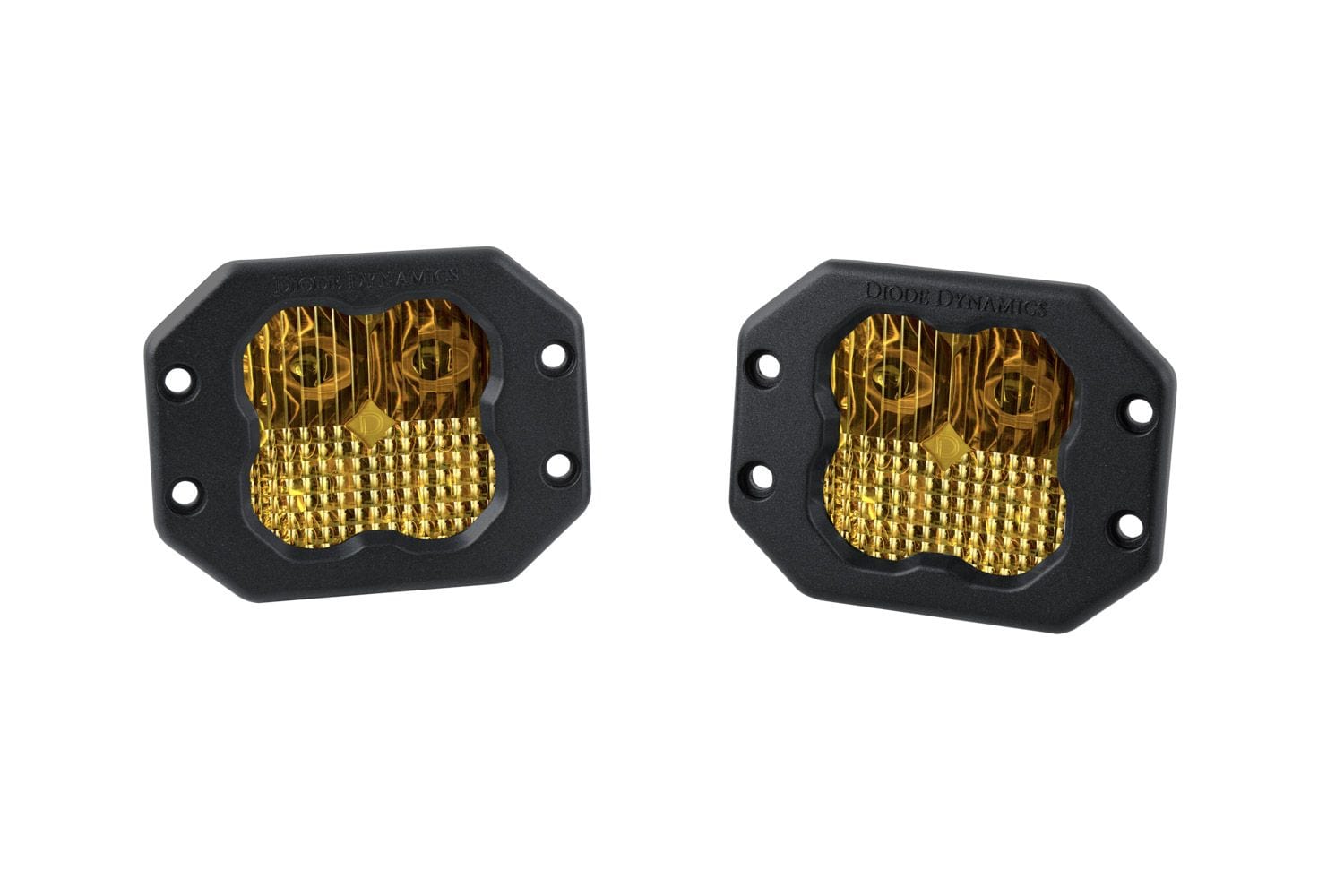

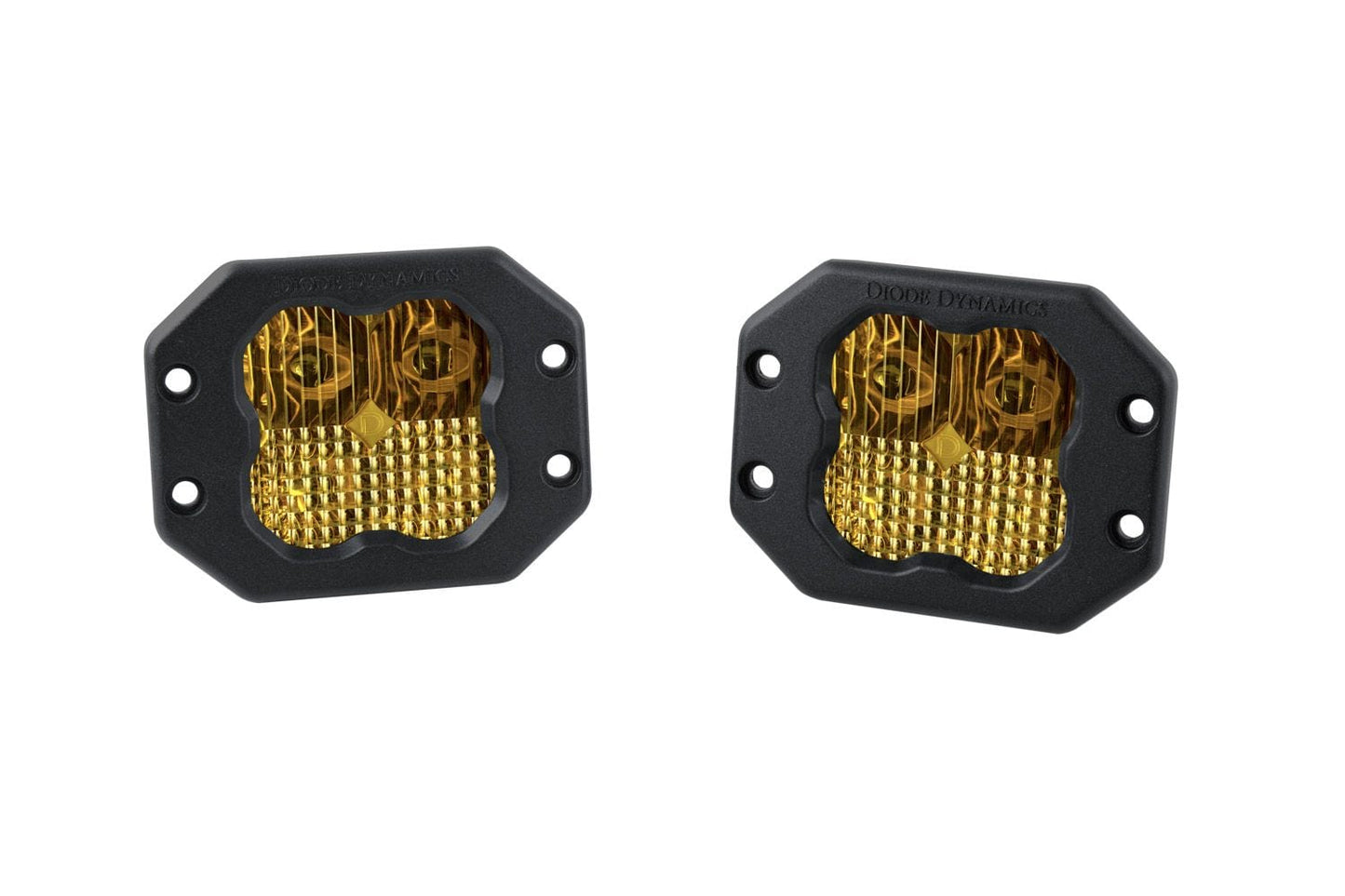

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

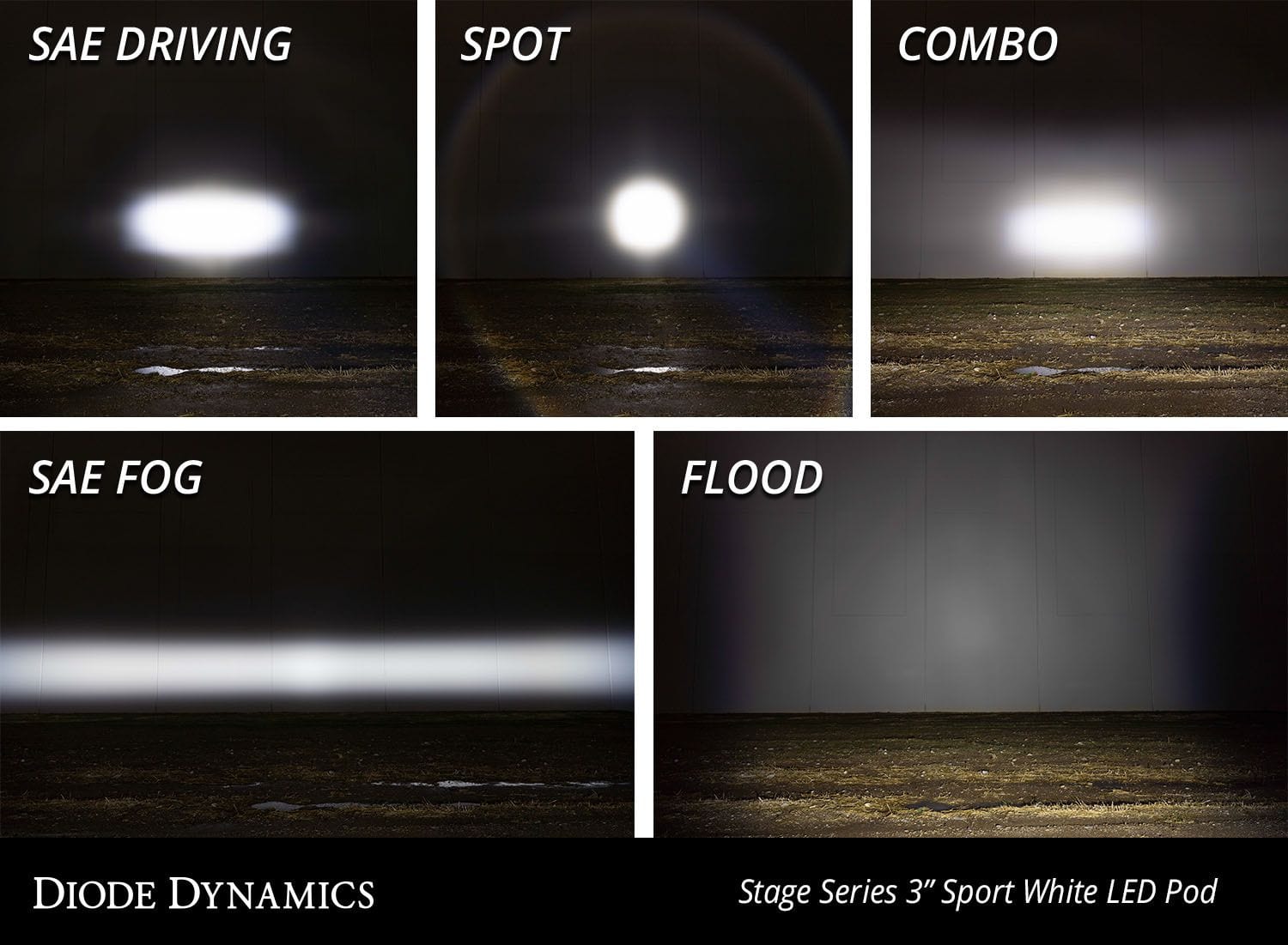

SS3 Beam Patterns

Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.

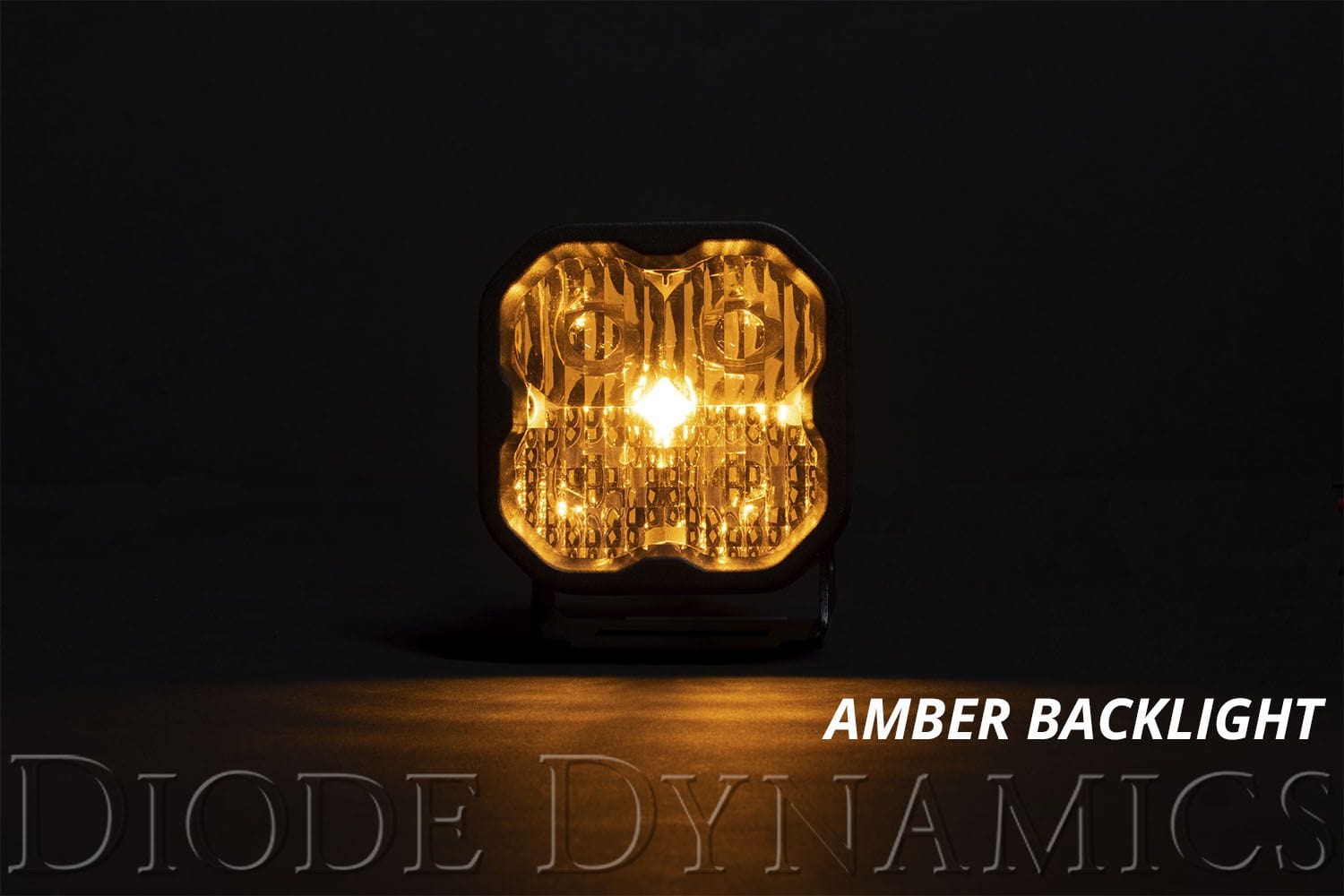

Backlight Functionality. The Stage Series 3" LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

NOTE: If you are upgrading your SS3 Pods to Backlit SS3 Pods, you will need to purchase a 2-pin to 4-pin wire tap kit in order to connect your existing 2-pin harness to your new backlit SS3 Pods.

Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output Harness can be used to power up to two SS3 pods. If you are looking to power more than two SS3 pods, we recommend using our Heavy Duty Dual Output Harness along with a Deutsch DT Splitter.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

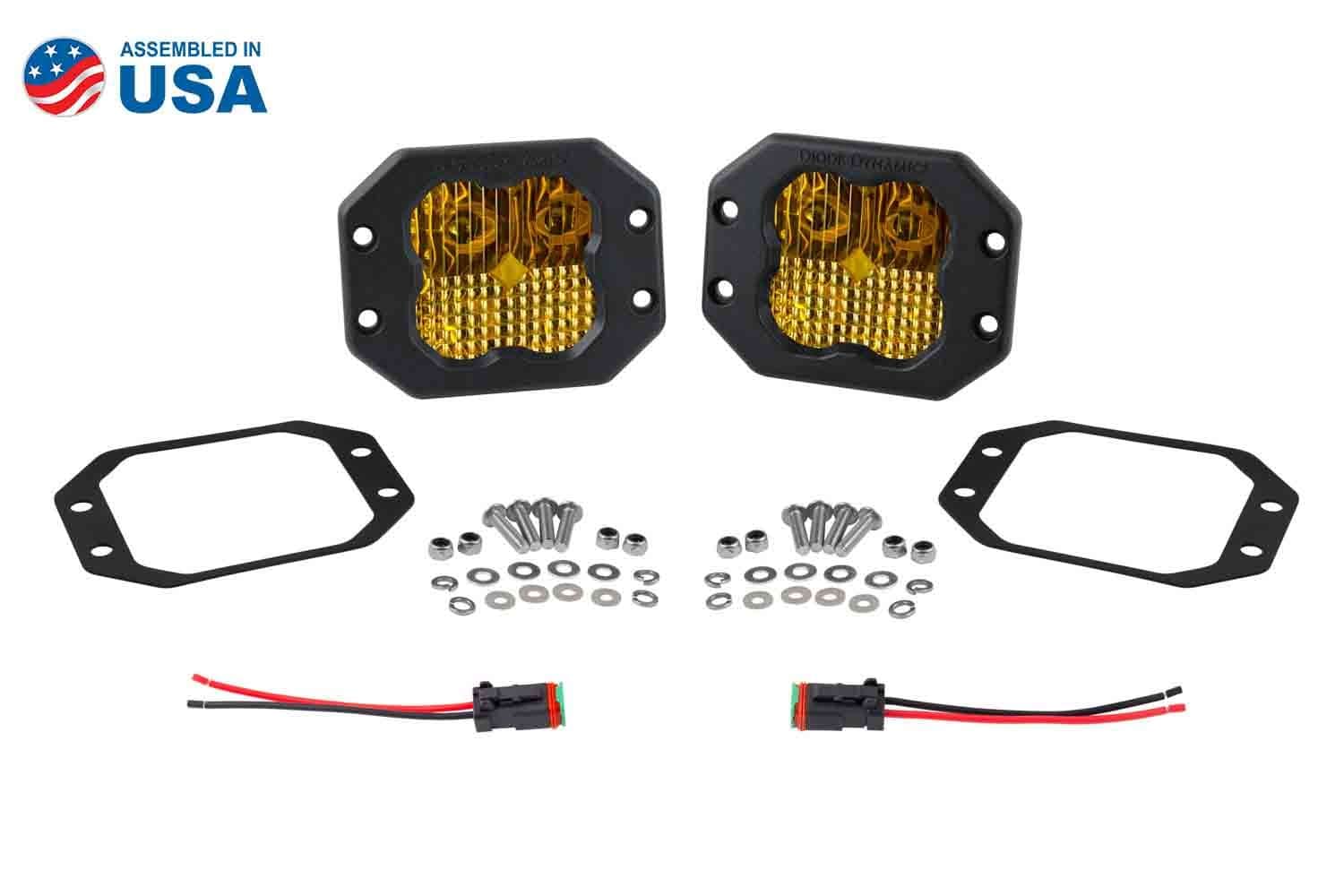

In the Box:
  • Two (2) SS3 3” Flush LED Pods
  • Two (2) Deutsch-style wire pigtails
  • Two (2) Flush Frame Gaskets
  • Mounting hardware and drilling template
  • Specification guide
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

NOTE: Specifications listed here are for each individual pod.

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Driving Sport 53,500 cd 535 lux 1,300 lm 1,930 lm 3000K Yellow
Driving Pro 60,900 cd 609 lux 2,700 lm 5,220 lm 3000K Yellow
Flood Sport 1,600 cd 16 lux 1,300 lm 1,930 lm 3000K Yellow
Flood Pro 2,850 cd 29 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Combo Sport 28,100 cd 281 lux 1,300 lm 1,930 lm 3000K Yellow
Combo Pro 33,406 cd 334 lux 2,700 lm 5,220 lm 3000K Yellow




Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
Color Temp (CCT): 3000K
Power (watts): Main Beam: 14.5, Backlight: 0.4
Current (amps @ 12.8V): Main Beam: 1.1, Backlight: 0.03
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure

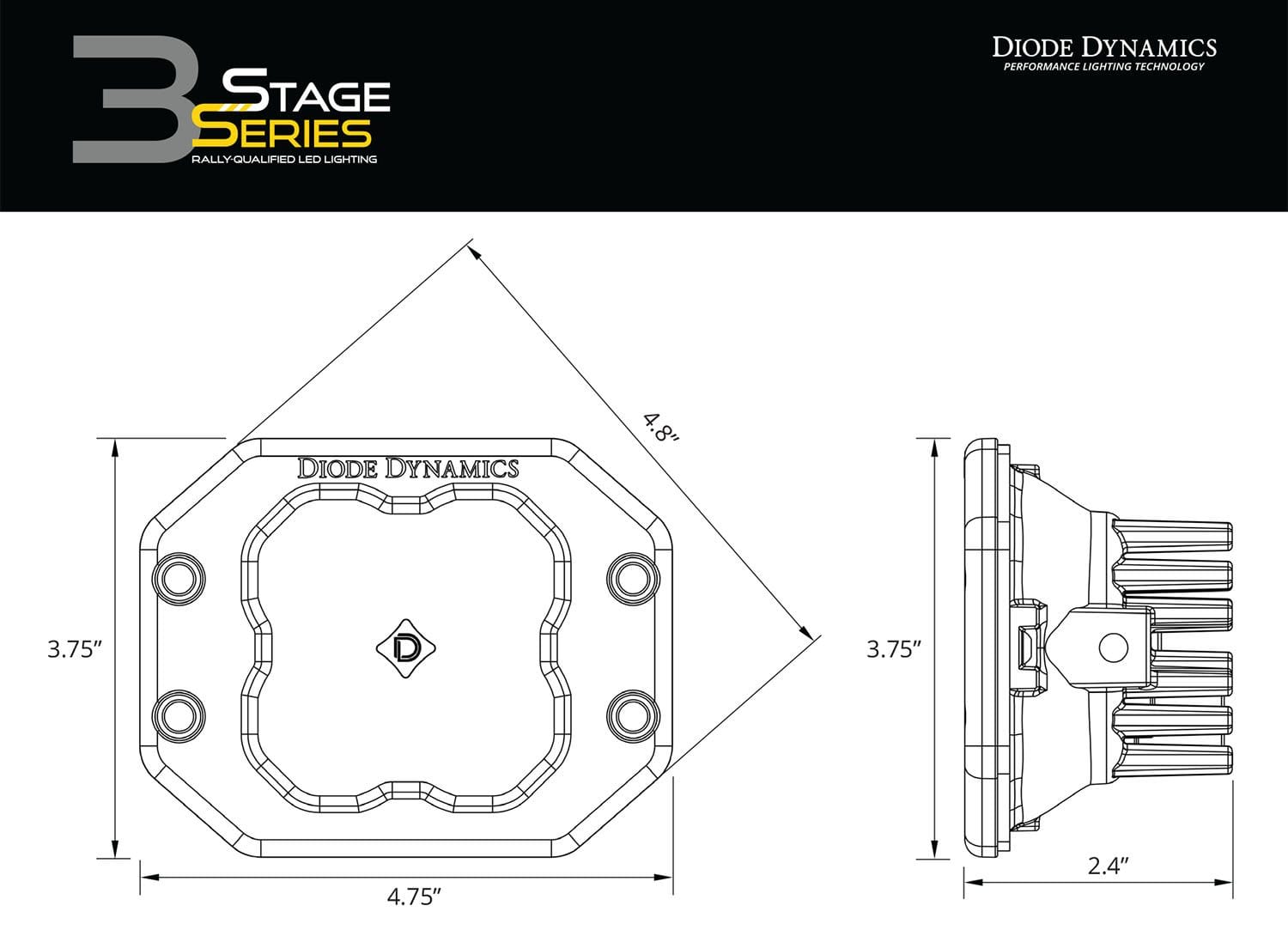

Product Dimensions (in): 3.75 x 4.75 x 2.4
Unit Weight (lb): 0.88
Product Weight (lb): 2.63
100% Satisfaction Guarantee

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: Major Modification

Installation Guide: Click to download

Wiring Instructions: Click here


8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
