DSC Coilovers Summit Kit 2.25″ Lift - 4th Gen Tacoma

The Peak 2.5″ Summit Kit pairs height-adjustable 2.5 DSC remote-reservoir coilovers and matched rear shocks with Peak tubular upper control arms to deliver precise damping control, added droop clearance, and a leveled stance—without resorting to spacer stacks.

Features:

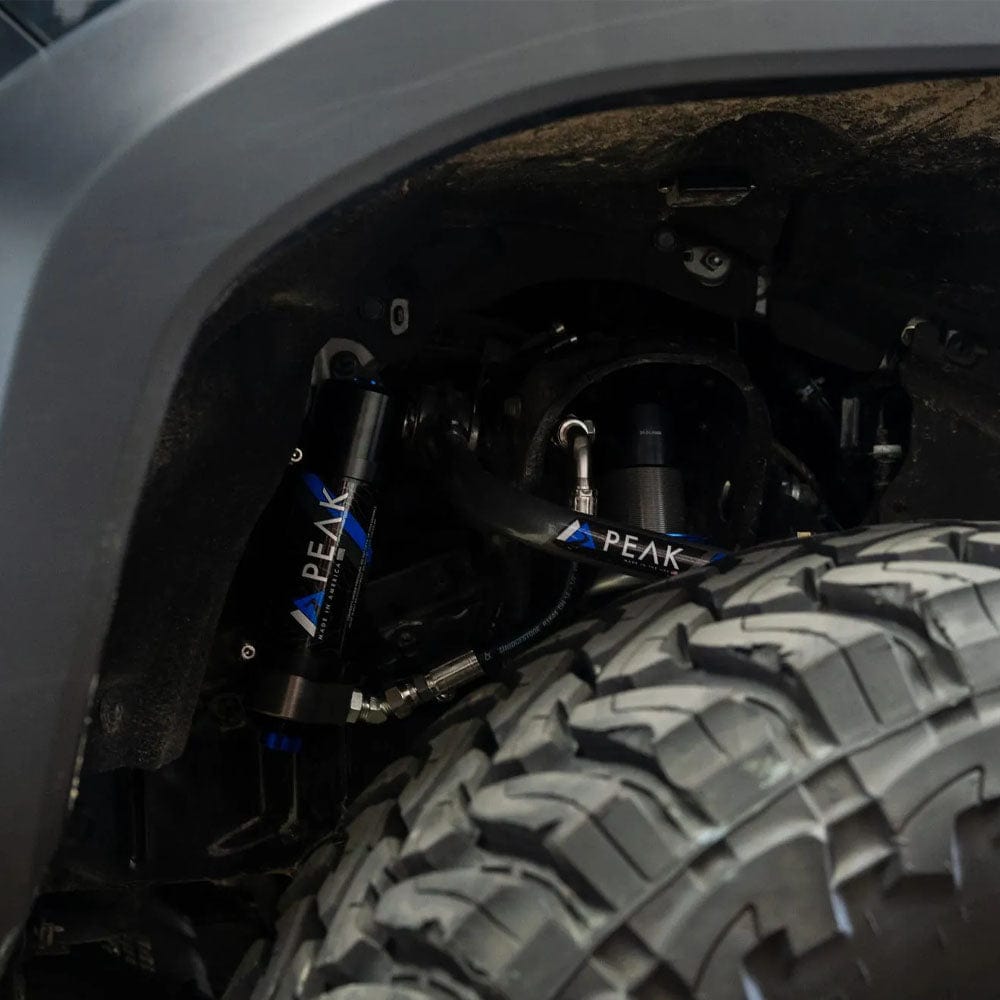

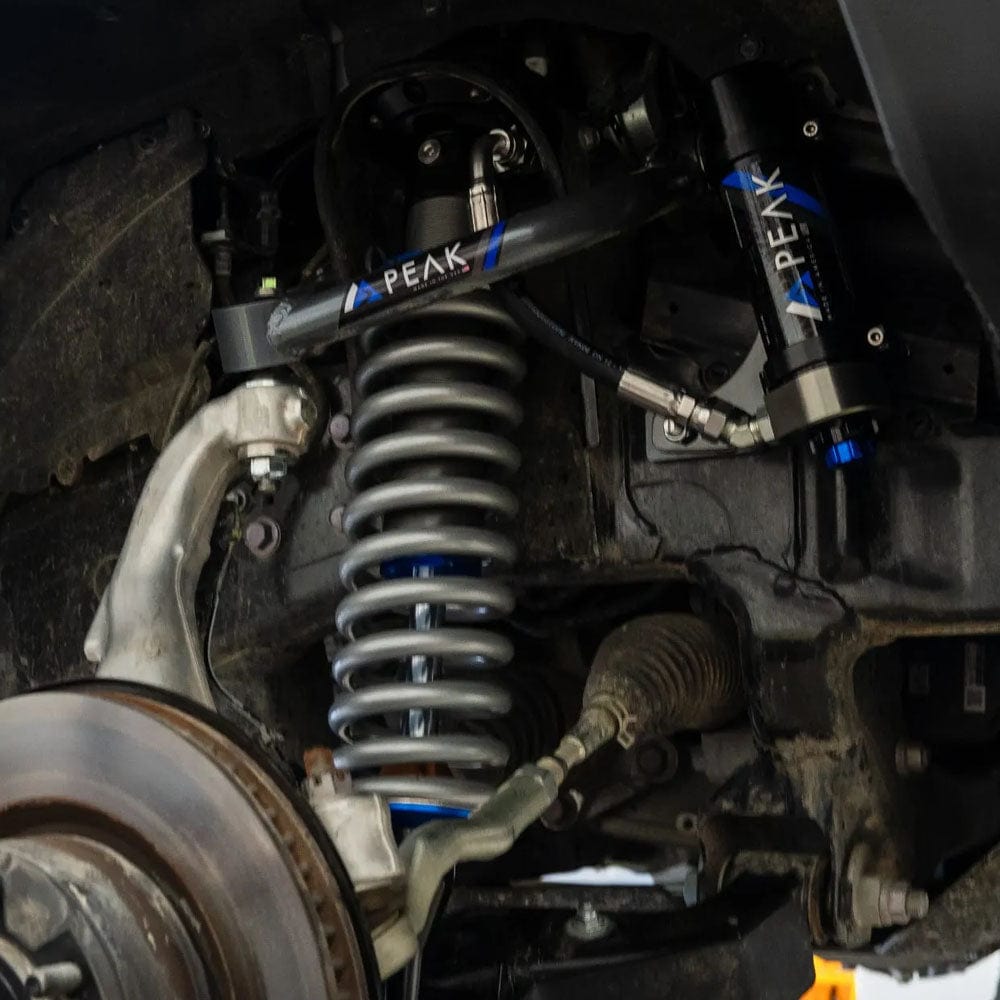

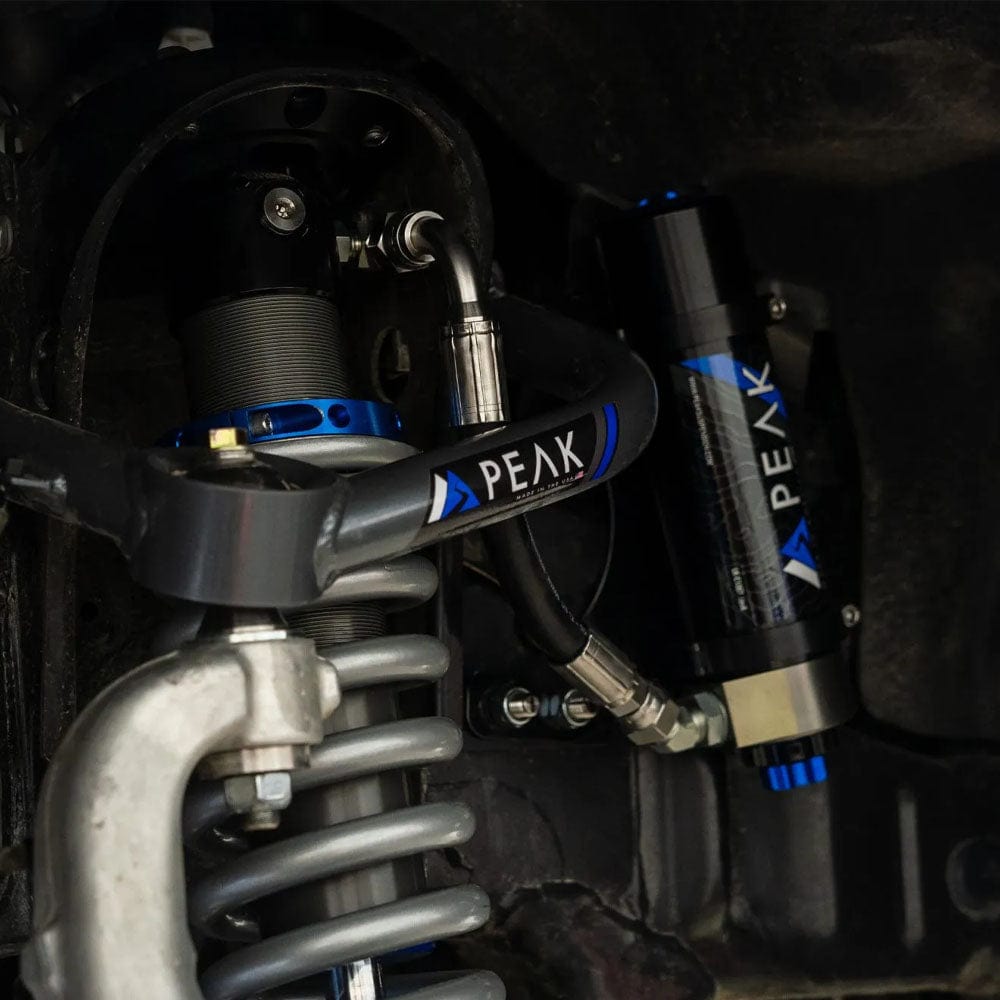

• 2.5 DSC front coilovers with remote reservoirs and dual-speed (HSC/LSC) compression adjusters

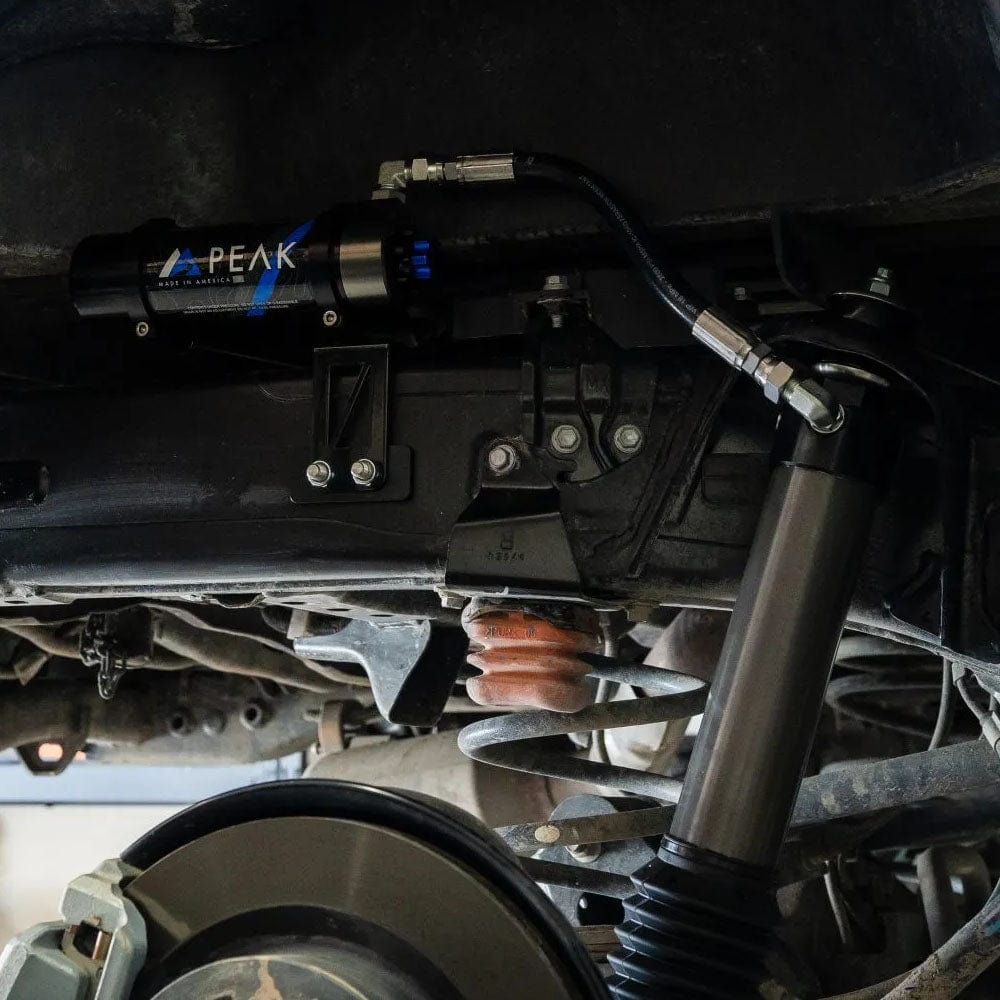

• Matched 2.5 remote-reservoir rear shocks for balanced on/off-road control
• Peak tubular upper control arms for added caster and improved alignment range
• Threaded preload adjustment with pinch-bolt collar to lock ride height
• Vehicle-specific valving; machined billet/anodized components
• Bolt-on install to factory locations; professional alignment recommended

DSC Coilover Design

Dual-speed compression adjusters let you independently tune high- and low-speed damping, so you can soften small-bump response for daily driving and firm things up for big hits off-road. Remote reservoirs increase oil capacity and reduce heat fade, while the threaded collar lets you fine-tune ride height without sacrificing usable travel.

Complete Kit Components

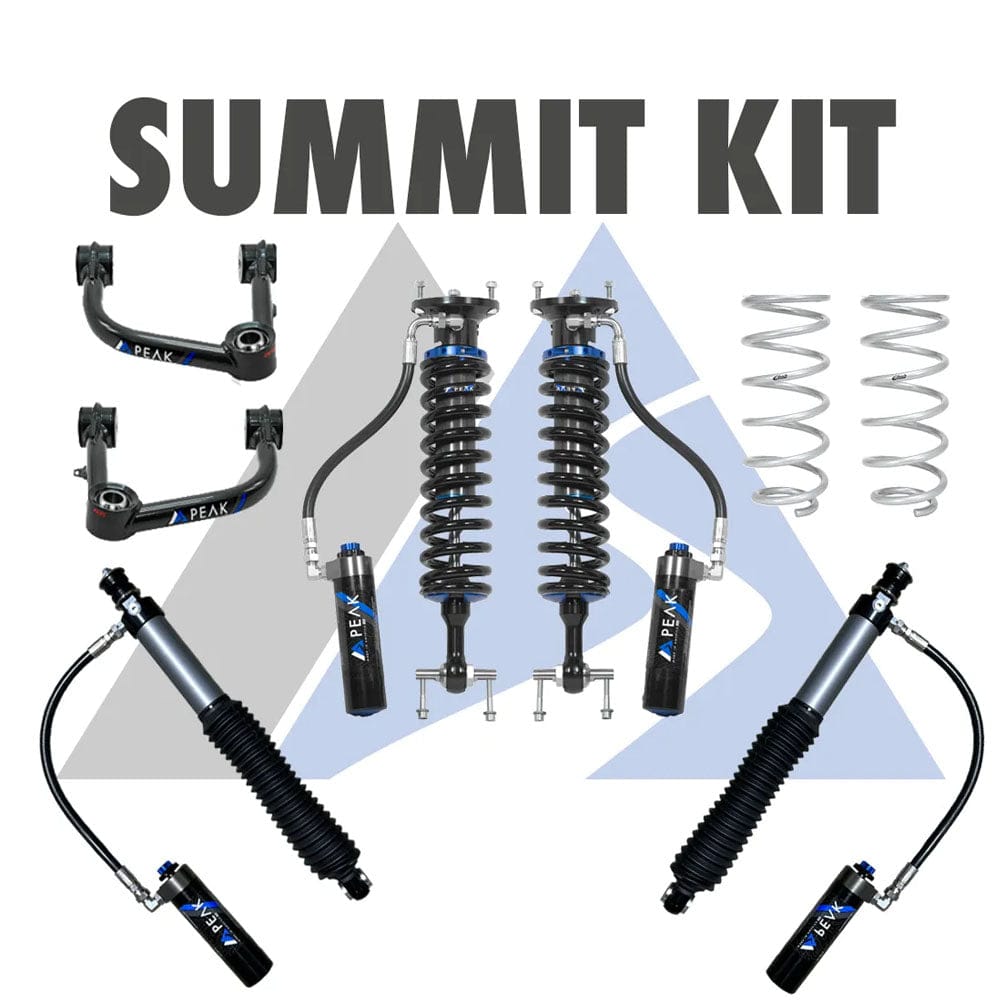

The package includes a matched pair of 2.5 DSC front coilovers, 2.5 remote-reservoir rear shocks, and a set of Peak tubular upper control arms. The UCAs add positive caster and droop clearance, improving on-center feel and tire/fender clearance through the suspension arc. All critical parts are precision-machined and anodized for long-term durability.

Ride Height & Rake Options

Use the coilovers’ threaded preload to set front ride height for a leveled stance. If you need additional rear height or load support, pair the kit with your preferred rear spring or spacer solution (sold separately) to dial in rake for cargo, towing, or added accessories.

Easy Bolt-On Installation

Everything mounts to factory locations with standard tools. After installation, schedule a professional alignment to dial in caster/camber and tire wear, and re-torque hardware after initial miles or off-road use. The UCAs’ serviceable bushings make routine maintenance straightforward.
