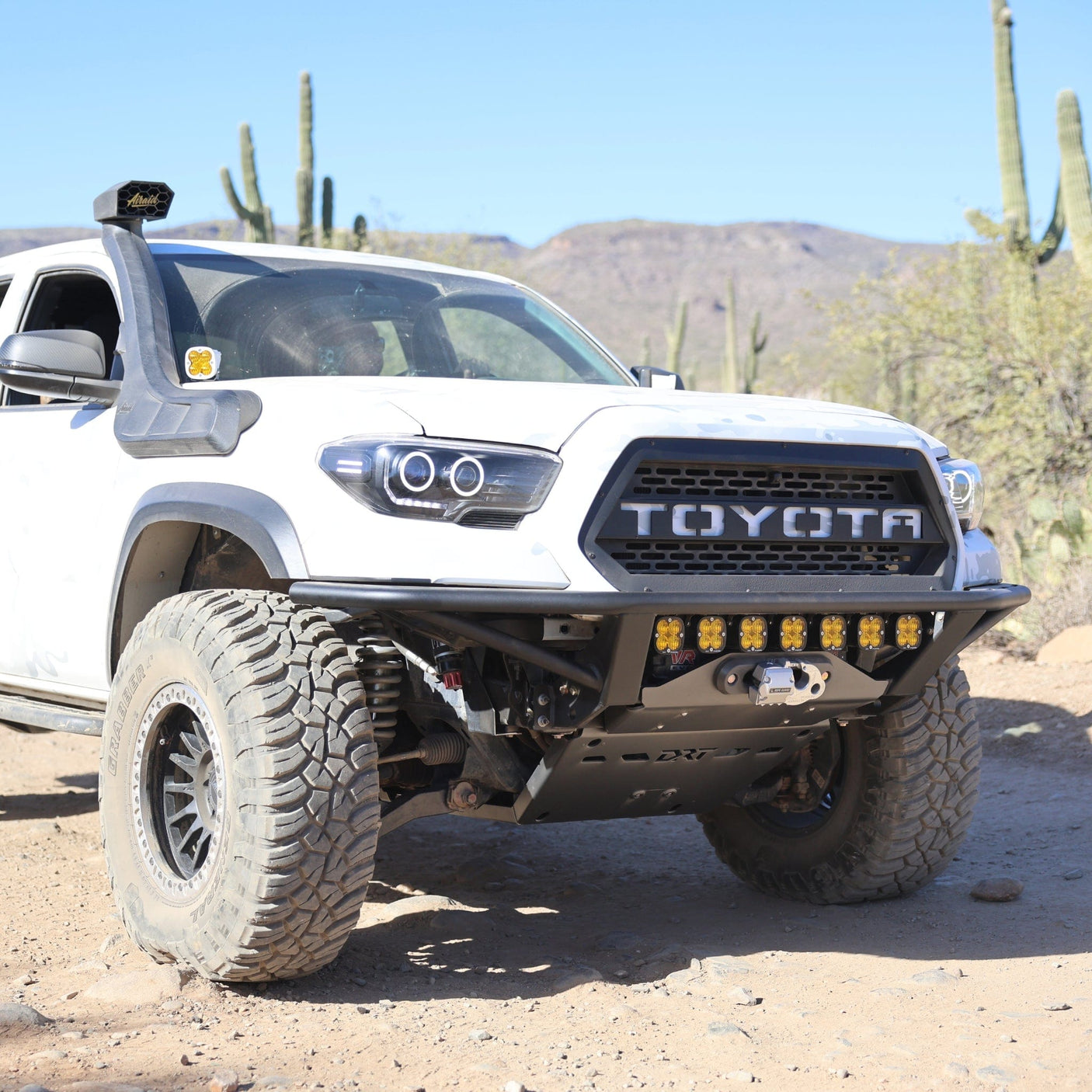

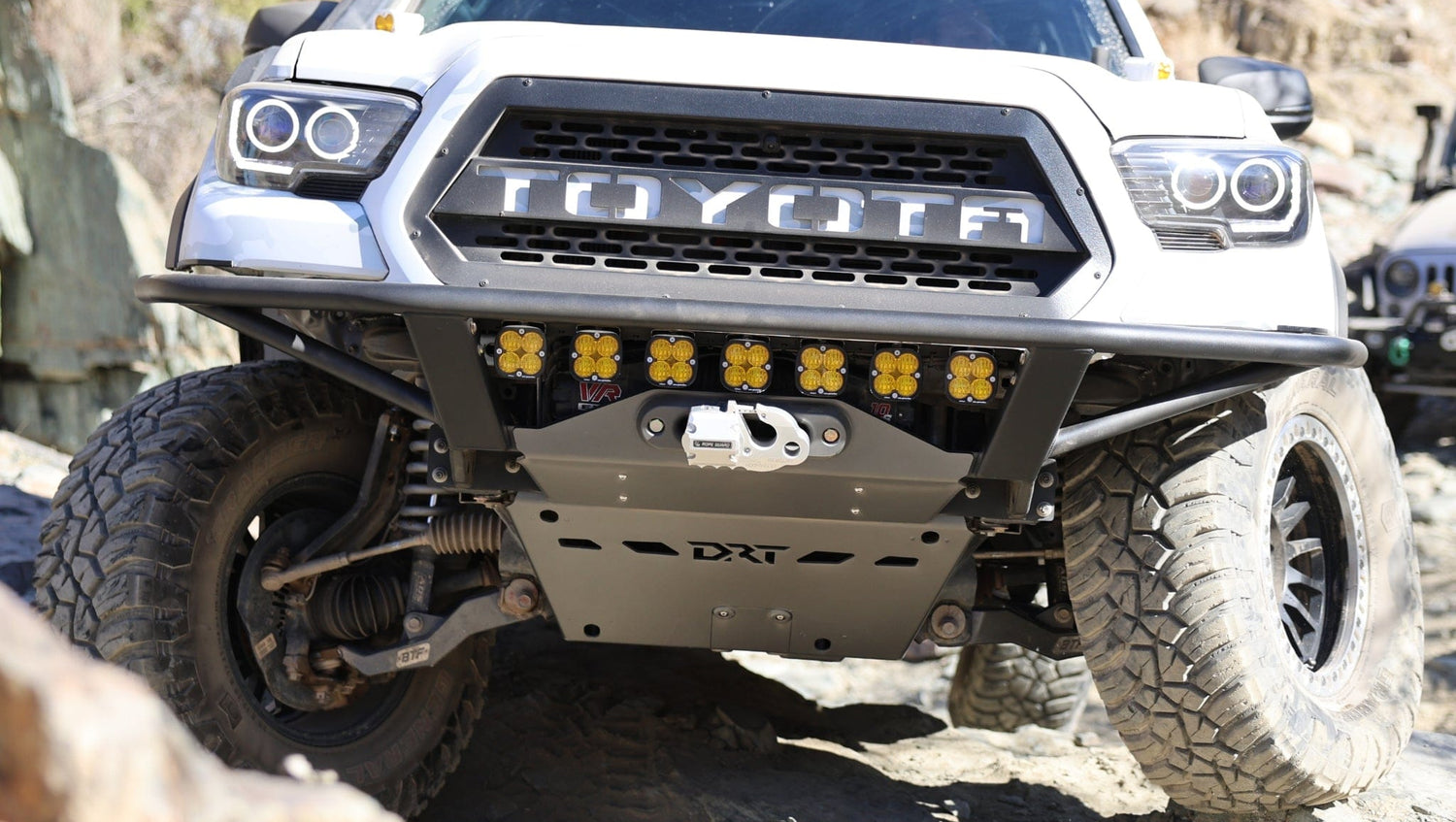

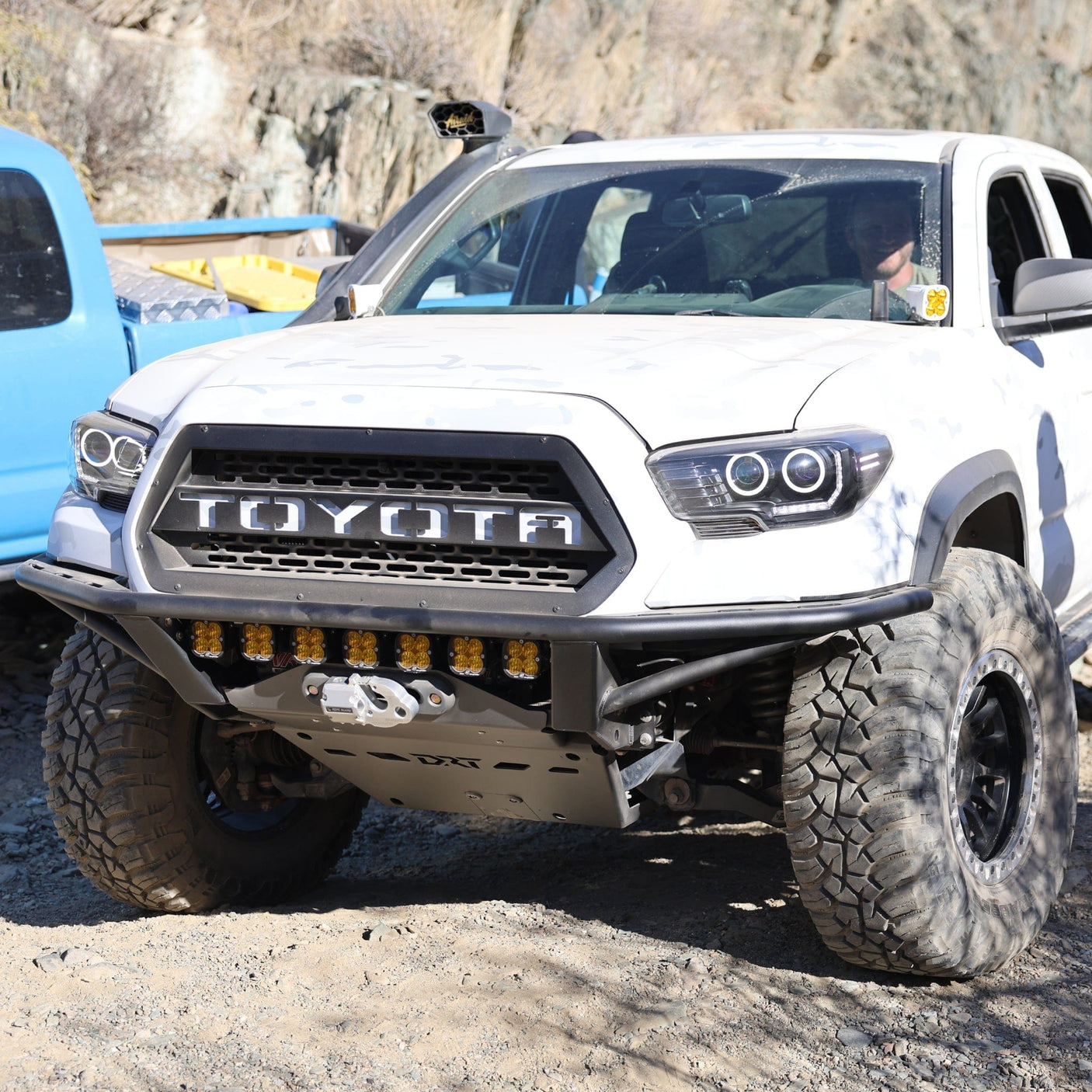

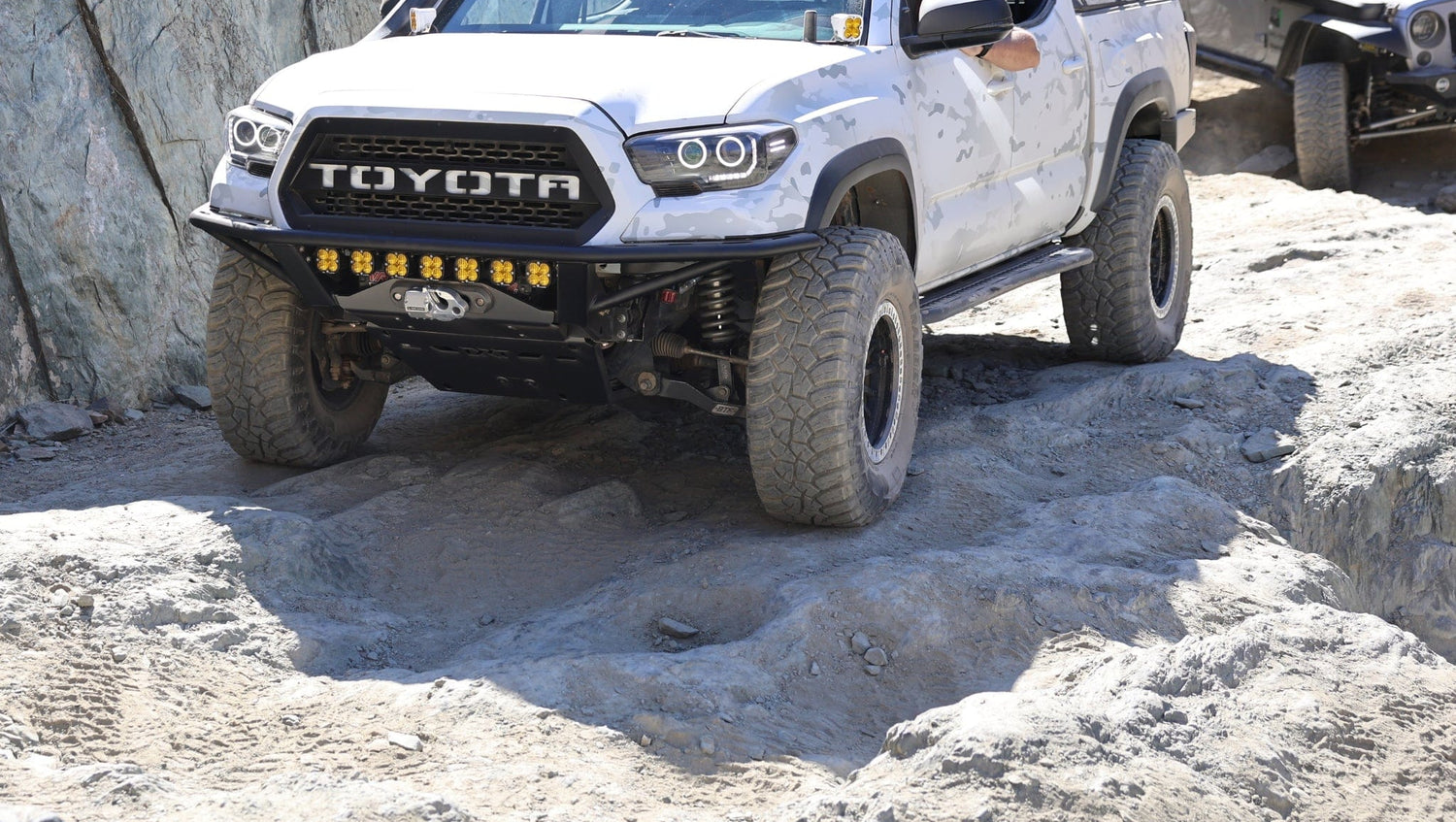

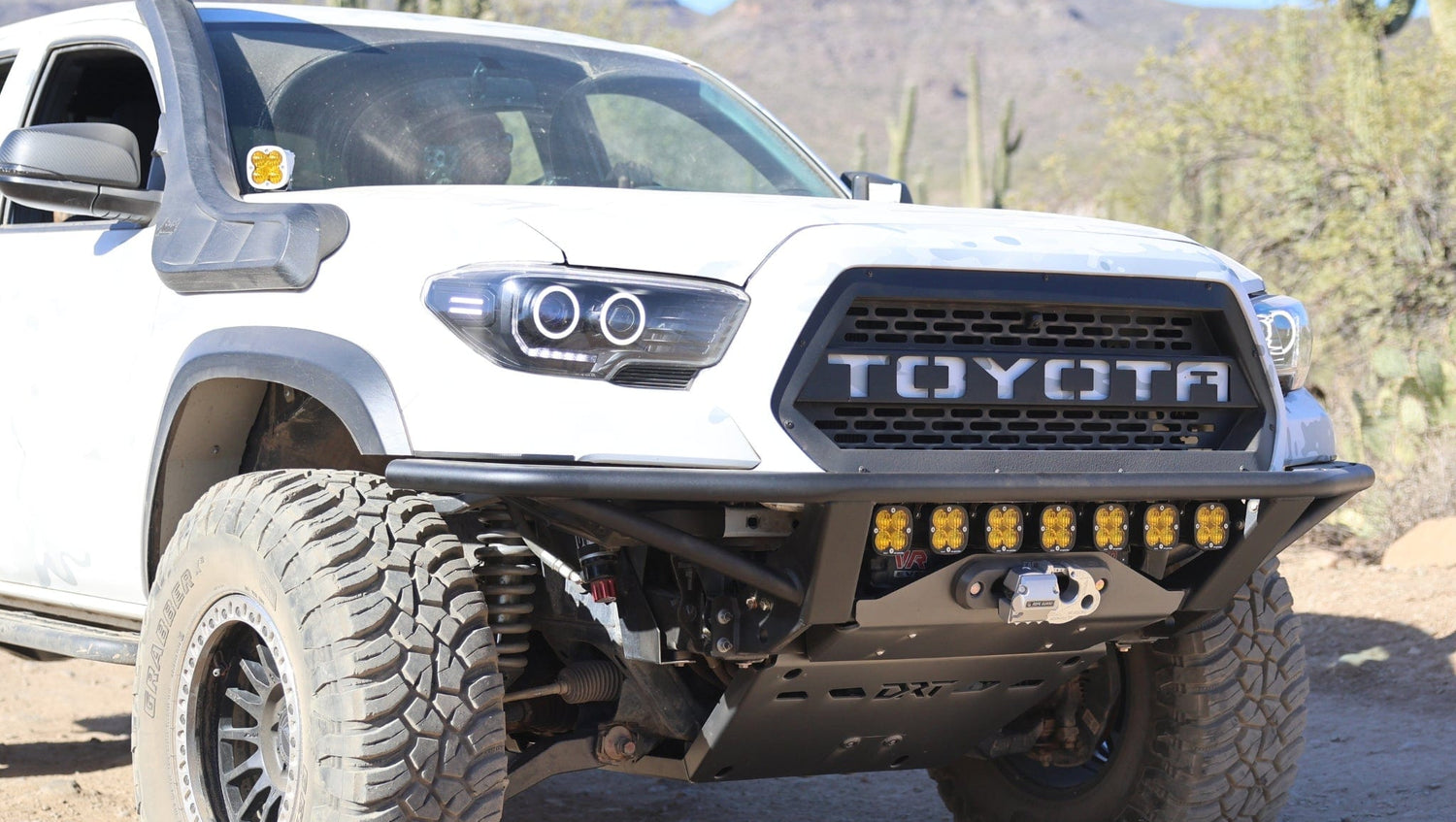

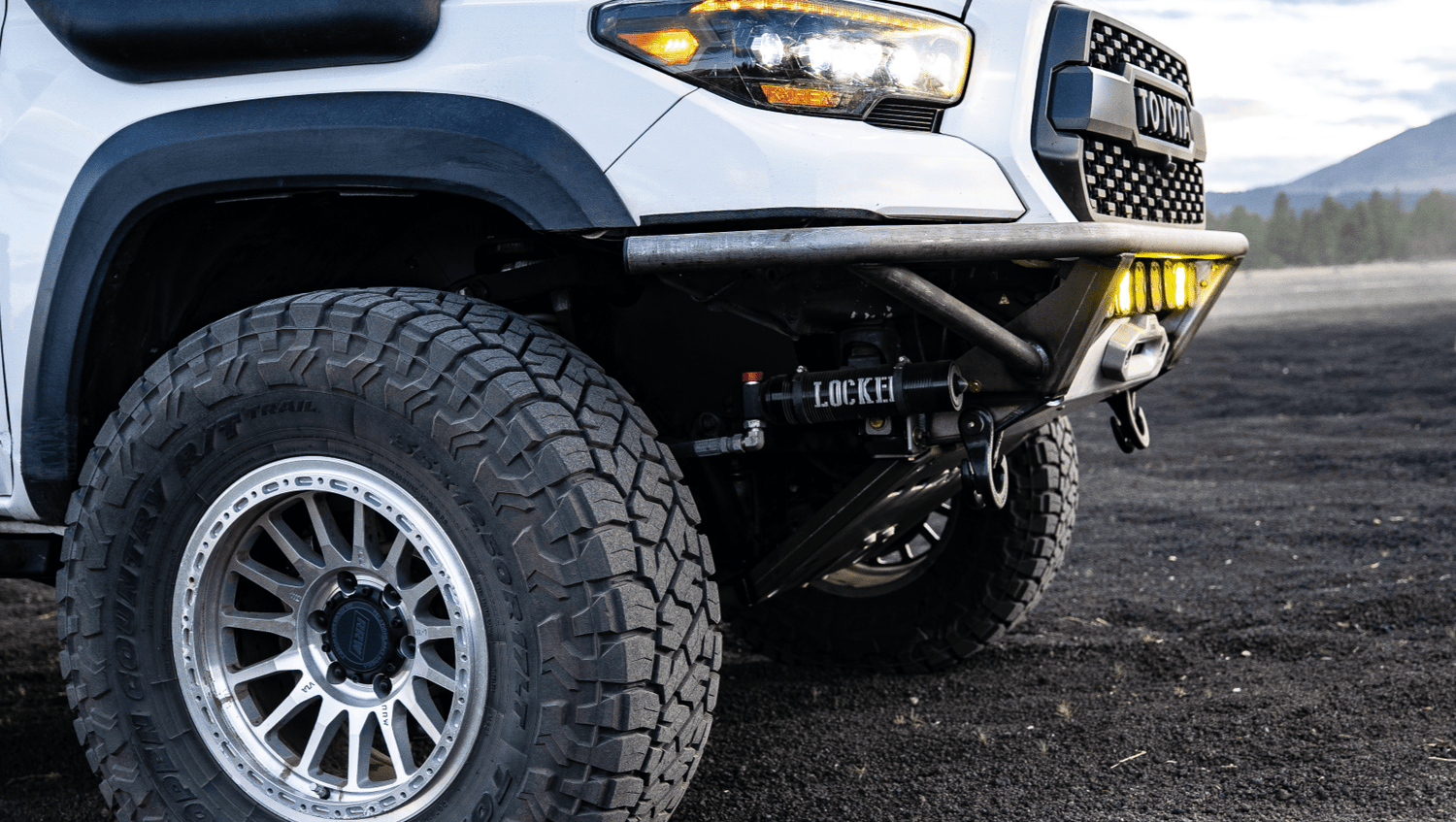

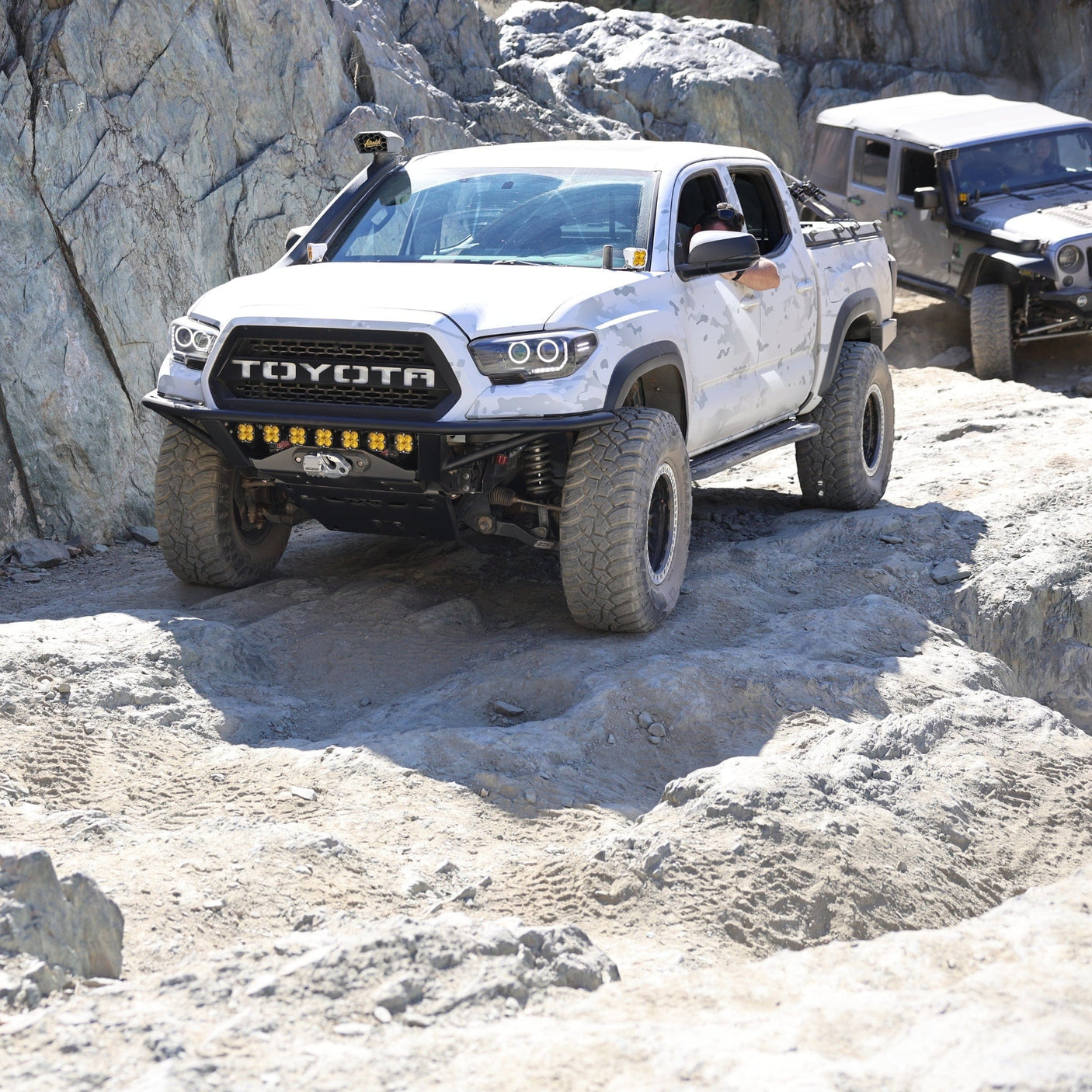

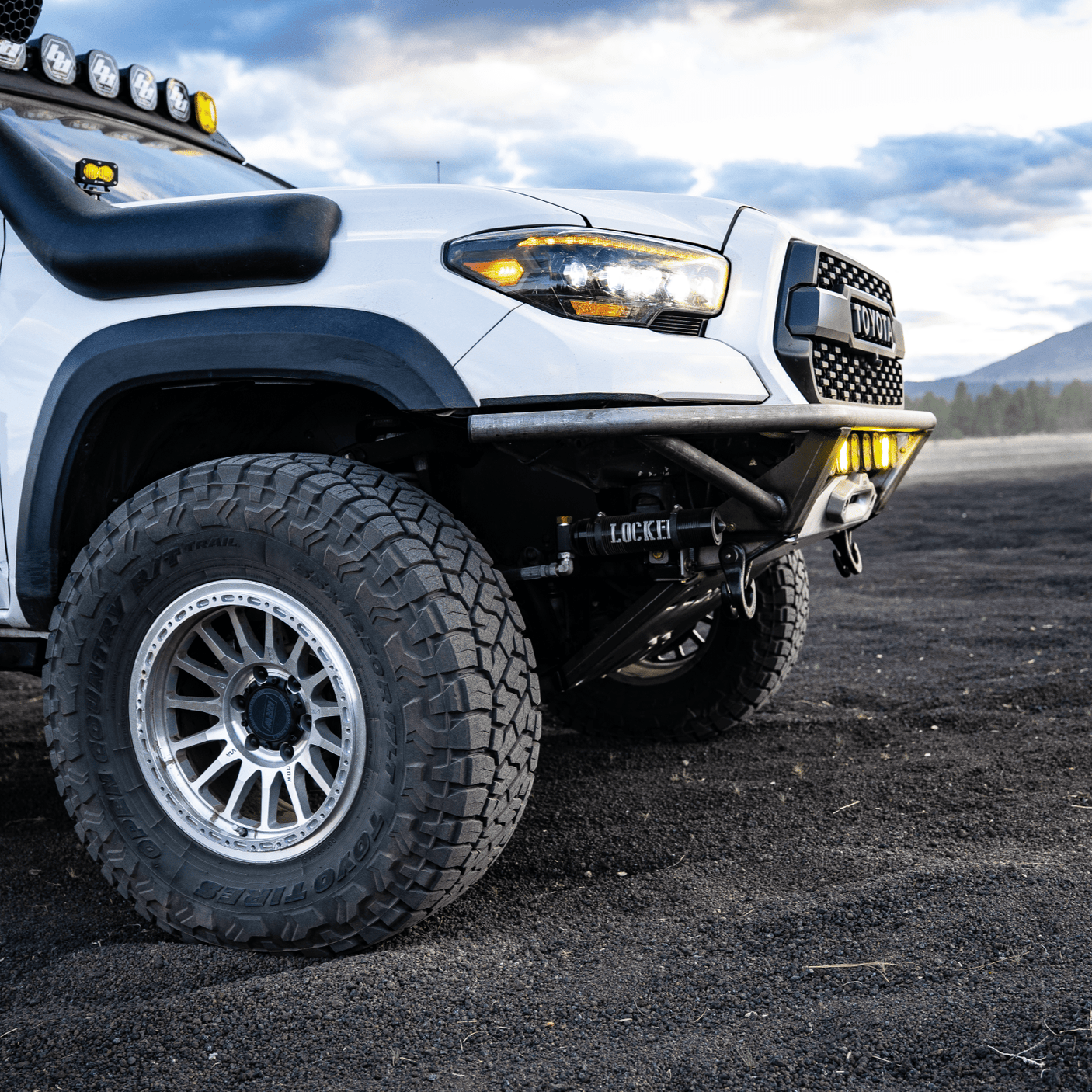

Tacoma Crossmember Delete Front Bumper / 3rd Gen / 2016-2023

Crossmember Delete Front Bumper – 2005–2023 Toyota Tacoma

Lightweight, Rigid, and Built for Clearance

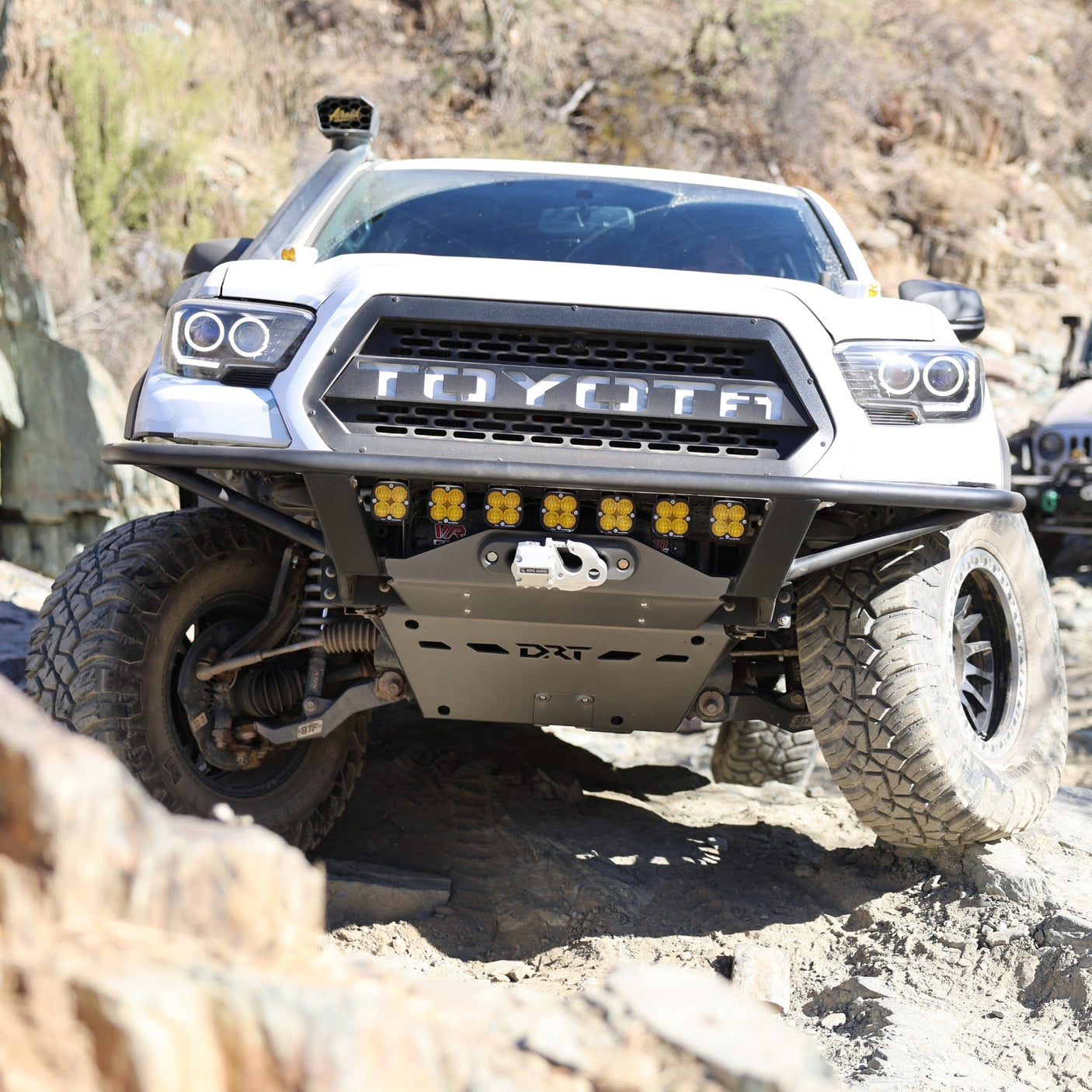

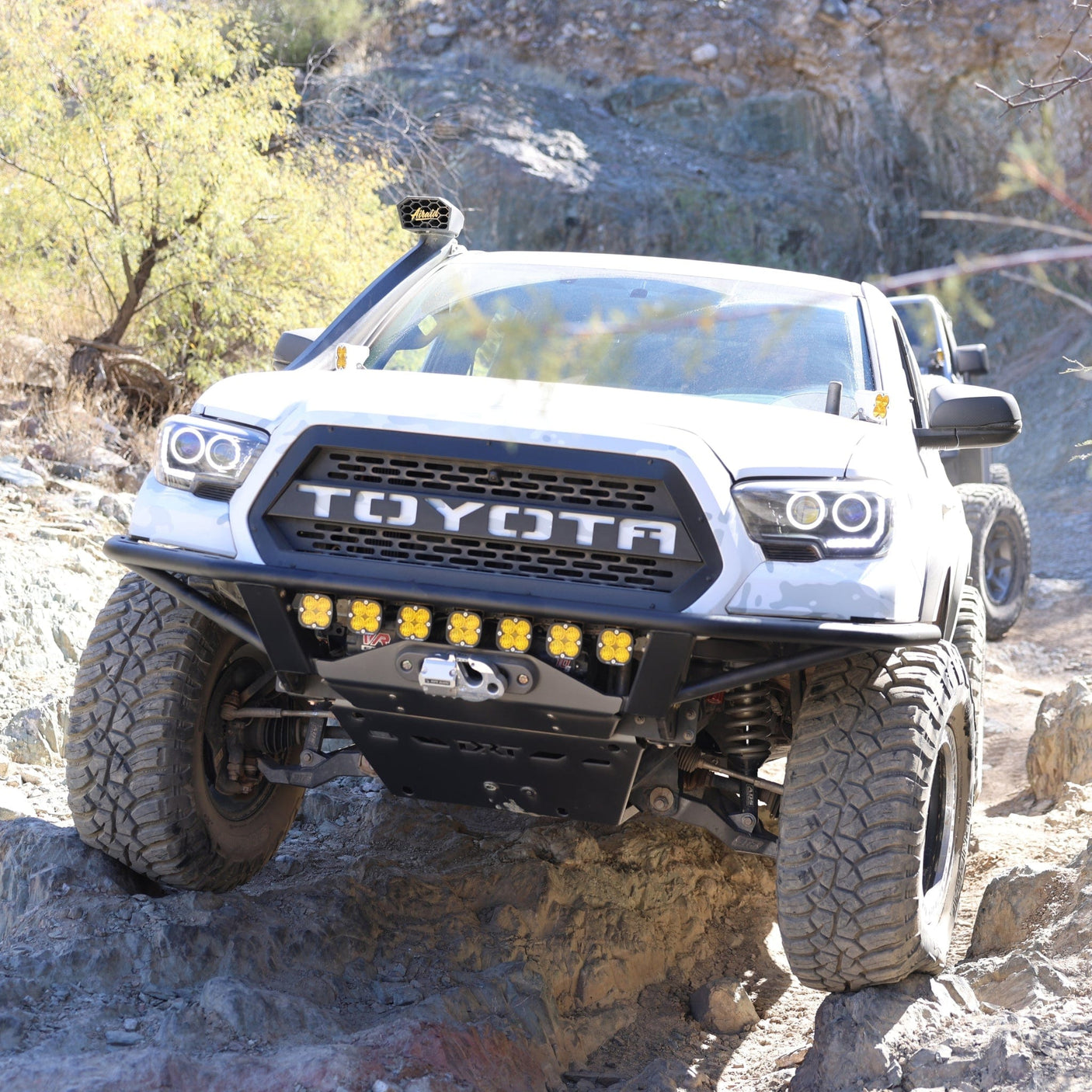

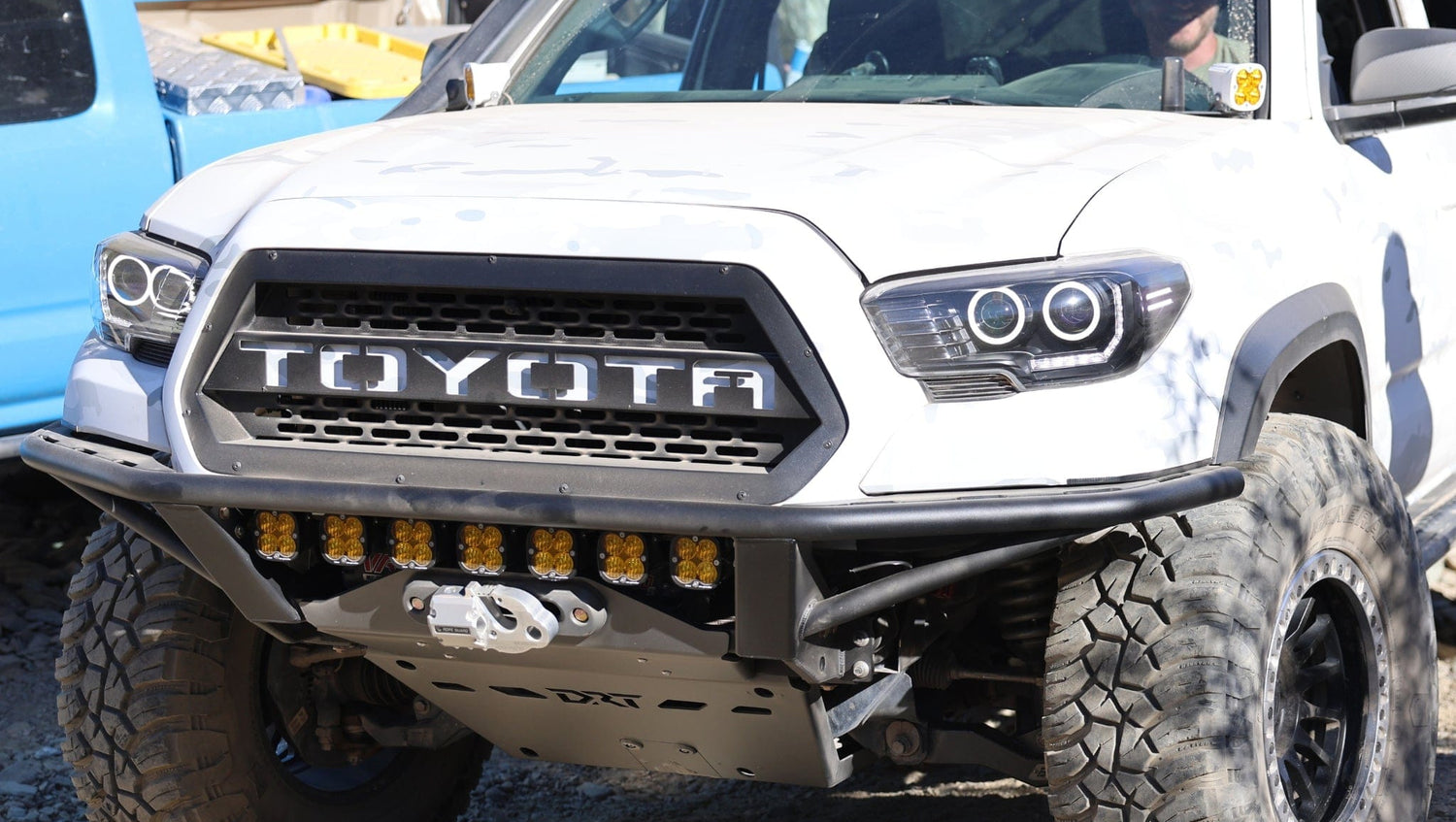

The Crossmember Delete Front Bumper delivers maximum strength and trail clearance without unnecessary weight. Constructed from 3/16” A36 steel with 1 ¾” × .120 DOM tubing and 1 ½” × .120 wall side supports, this one-piece bumper weighs just 66 lbs while still providing secure recovery points thanks to its laminated D-ring plate design.

Crossmember Delete Design

• Requires removal of the factory lower crossmember
• Includes a heavy-duty replacement crossmember that bolts between frame rails
• Replacement serves as the mounting base for both the skid plate and bumper
• Trimming of grille and fender caps is required for installation

Power Steering Cooler Relocation

Factory power steering cooler relocation is necessary. This kit includes everything you need:

• 10-row high-performance cooler with push-lock AN fittings
• Combination mount secures both the cooler and winch control box to the core support

Lighting Compatibility

• Side-wing mounts fit Baja Designs Squadron, S2, and similar lights
• Optional 7” light bar mount (sold separately) adds even more lighting versatility

High-Clearance Engine Skid Plate

• Built from 3/16” steel with 8 mounting points (industry standard is 6)
• Flush-mounted access panels allow easy oil changes
• Includes stainless CNC-machined washers to protect panel hardware

Frame Reinforcements Included

• Weld-on 3/16” steel frame reinforcement plates are included for added strength and long-term durability

Notes

• Power steering cooler relocation is not required if you are not deleting the factory crossmember
• All  power steering & winch control box relocation components are included standard with this kit
